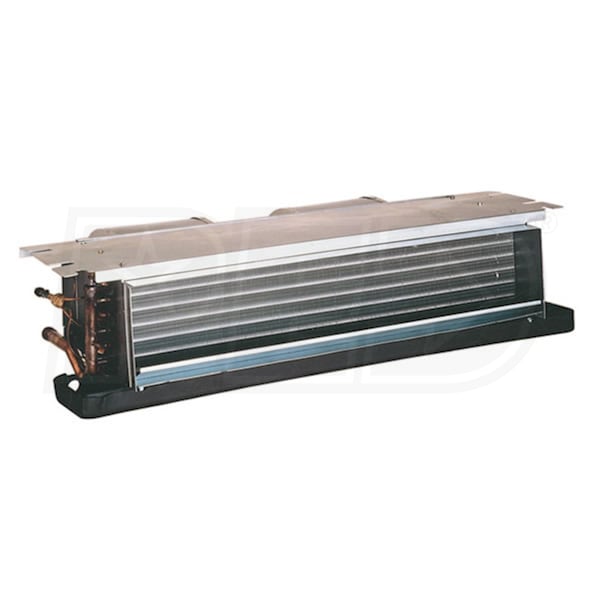

Goodman ACNF - 2.5 Tons - 7.3 kW Electric Heat - Air Handler - Ceiling-Mount Orientation - 208-230/1/60 - EEM Motor
Model:
ACNF310816
+
Share This Product
Recommended Accessories
Expert Recommended Accessories
Selected by Ken, our Expert
Required Accessories
9
These accessories are required to properly setup/install this product.
Optional Accessories
10
Features
- EEM Motor
- The ACNF310816 has an EEM motor that is cost and energy efficient and can reduce operating costs. They also are not prone to overheating.
- SmartFrame
- The Smartframe substructure improves your air handler's lateral strength and creates a sturdy mounting framework for the internal components. It also secures the foil-faced insulation covering the entire blower casing that can reduce operating noise.
- All-Aluminum Coil
- Goodman's evaporator coils use a reliable all-aluminum design featuring fins and grooved tubes. This design maximizes surface area and optimizes heat transfer for efficient comfort.
- Galvanized-Steel Construction
- Galvanized-Steel is corrosion resistant, requiring less maintenance to remain at peak efficiency.
- Easy Installation
- The ACNF Air Handler can be installed vertically on the wall or on the stud, giving you the freedom to pick between whichever fits your needs best.
Goodman air handlers are an integral part of finishing a total home environment control system. The ACNF plays a key role in reducing indoor humidity, creating a much more comfortable environment. In addition, the ACNF air handler works with the multi-speed EEM motor to efficiently move cooled or warmed air throughout your home at exactly the speed you need.
California residents see
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
For more information go to: www.p65Warnings.ca.gov
Specifications
ACNF310816
Overview
Product Category
Air Handler
UPC
663051545342
General Information
Type
Air Handler
Product Line
ACNF
Product Category
Air Handler
Refrigerant Type
R-22/R-410A
Blower Motor Type
Multi-Speed
Motor Type
EM
Configuration
Configuration
Orientation describes the direction that air will flow through a piece of equipment. (e.g. air will flow horizontally through a "Horizontal" unit heater.) Most equipment will only function properly if installed in the proper orientation.
Ceiling Mounted
Installation Location
Indoor
Electric Heat
Yes
Installation Available
Yes
Performance
Capacity
Capacity
Tonnage, or tons of cooling, is a short hand method for describing the capacity of cooling equipment. One ton is equal to approximately 12 kBTU/hr.
2.5 Tons
Cooling BTU
30000
Electric Heat Capacity
7.3 kW
Maximum Air Flow
999 CFM
Minimum Air Flow
763 CFM
Electrical Data
Voltage
208/230 Volts
Phase
1
Frequency
60 Hz
Minimum Circuit Ampacity
38 Amps
Recommended Breaker Size
45 Amps
Dimensions
Suction Connection Size
3/4 Inch
Liquid Connection Size
3/8 Inch
Drain Outlet Diameter
3/4 Inch
Product Height
11 1/4 Inches
Product Width
42 Inches
Product Depth
6 1/2 Inches
Product Weight
79 Pounds
Shipping Weight
94 Pounds
Certifications
ETL Listed
Yes
AHRI Certified
Yes
Warranty Information
Warranty
Warranty
A warranty is a safeguard from defects in manufacturing and can vary in length and terms. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
10 Years
Parts Warranty
Parts Warranty
A warranty is a safeguard from defects in manufacturing and can vary in length and terms. Some manufacturers require registration for extended warranty benefits, be sure to check out features and the warranty document. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
10 Limited Years
