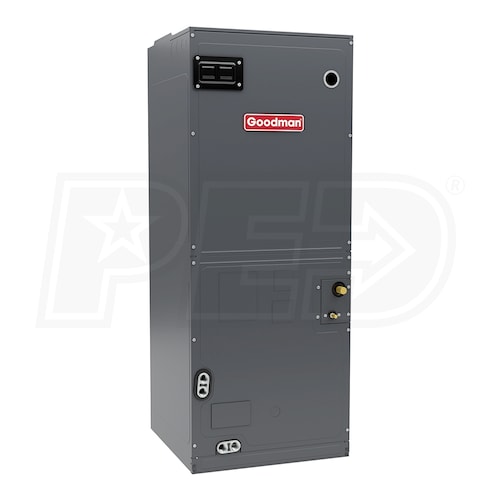

Goodman AMVT - 5.0 Ton - Air Handler - Multi-Position - Variable Speed ECM Blower
Model:
AMVT60DP1400
+
Share This Product
Recommended Accessories
Expert Recommended Accessories
Selected by Ken, our Expert
Required Accessories
9
These accessories are required to properly setup/install this product.
Optional Accessories
10
Features
- All-Aluminum Coil
- Goodman's evaporator coils use a reliable all-aluminum design featuring fins and grooved tubes. This design maximizes surface area and optimizes heat transfer for efficient comfort.
- Blower Motor
- The variable speed ECM blower motor allows air volume variation for heating and cooling.
- Internal Thermostatic Expansion Valve
- The AMVT has a factory-installed internal thermostatic expansion valve. This streamlines installation and maintains ideal refrigerant flow for your system.
- ComfortBridge™ Compatible
- This air handler is compatible with Goodman's ComfortBridge™ communicating controls. A ComfortBridge™ control shortens the installation and maintenance processes by detecting your equipment and providing diagnostics and troubleshooting.
- Coolcloud™ Compatible
- Licensed contractors can now wirelessly diagnose from their phone or tablet via Bluetooth using the Coolcloud™ application.
- SmartFrame™
- This air handler features Goodman's SmartFrame™ sub-structure for enhanced accessibility. It provides tool-less access to the filter rack and includes a coil mounting track that improves installation speed for all four compatible orientations.
- Secure Cabinet
- This air handler enjoys reduced noise levels, less than 2% air leakage, and enhanced durability as a result of its insulated, embossed cabinet design.
- Condensate Management
- The AMVT's design includes molded diverters, foil-faced insulation, and screw-less construction of the cabinet's side and rear sections. These elements help prevent the formation of condensation and keep your system running smoothly.
- Extended Warranty
- Goodman offers a 10-year limited parts warranty when you register your product online within 60 days of installation. An unregistered product has the standard 5-year warranty. See warranty sheet under the "Manuals" tab for more information.
Goodman's AMVT air handler provides effective air distribution for homes of nearly all shapes and sizes. It includes a newly redesigned all-aluminum evaporator coil, thermoplastic drain pan, variable speed fan motor, and internal thermostatic expansion valve. These cutting-edge components improve the efficiency of your system and the consistency of your comfort. If you are looking for perfect air circulation, look no further than the AMVT air handler. Since it is made by Goodman, the largest HVAC manufacturer in America, you know you are getting a product that will install quickly and last well into the future.
California residents see
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
For more information go to: www.p65Warnings.ca.gov
Specifications
AMVT60DP1400
General Information
Type
Air Handler
Product Line
AMVT
Product Category
Air Handler
Refrigerant Type
R-410A
Blower Motor Type
Variable-Speed
Motor Type
ECM
Mount Type
Multi-Position
Installation Location
Indoor
Electric Heat
Available
Installation Available
Yes
TXV Installed
Yes
Performance
Capacity
Capacity
Tonnage, or tons of cooling, is a short hand method for describing the capacity of cooling equipment. One ton is equal to approximately 12 kBTU/hr.
5.0 Tons
Cooling BTU
60000
Maximum Air Flow
2000 CFM
Minimum Air Flow
1072 CFM
Electrical Data
Voltage
208/230 Volts
Phase
1
Frequency
60 Hz
Minimum Circuit Ampacity
8.6 Amps
Recommended Breaker Size
15/15 Amps
Dimensions
Suction Connection Size
7/8 Inch
Liquid Connection Size
3/8 Inch
Drain Outlet Diameter
3/4 Inch
Cabinet Width
24 1/2 Inches
Product Height
58 Inches
Product Width
24 5/8 Inches
Product Depth
21 Inches
Shipping Weight
172 Pounds
Certifications
ETL Listed
Yes
AHRI Certified
Yes
ISO Certified
Yes
Warranty Information
Warranty
Warranty
A warranty is a safeguard from defects in manufacturing and can vary in length and terms. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
10 Years
Parts Warranty
Parts Warranty
A warranty is a safeguard from defects in manufacturing and can vary in length and terms. Some manufacturers require registration for extended warranty benefits, be sure to check out features and the warranty document. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
10 Limited Years
