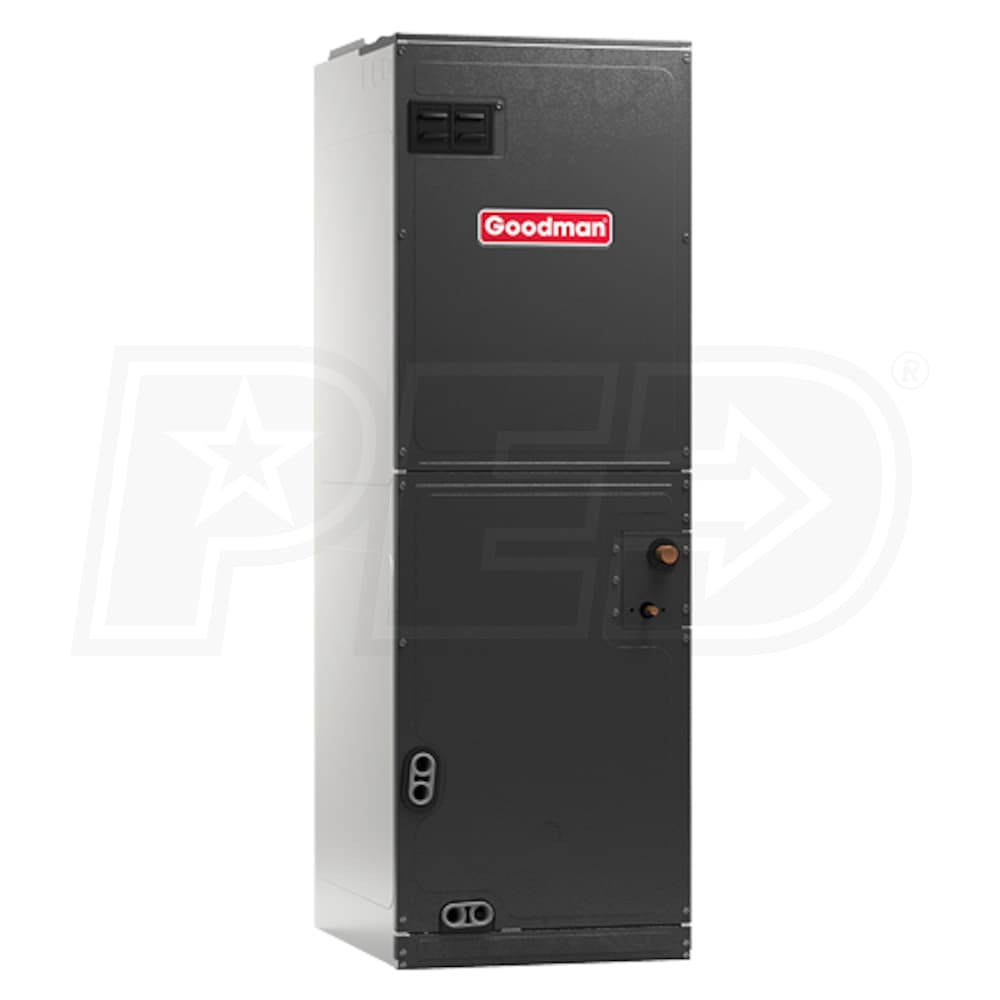

Goodman ARUF - 3.5 Ton - Air Handler - Multi-Position - PSC Motor

Model:

ARUF47D14

Write A Review
Product Discontinued
Sorry, this product is no longer available.
Try this product instead
Goodman ARUF - 3.5 Ton - Air Handler - Multi-Position - PSC Motor
Goodman ARUF - 3.5 Ton - Air Handler - Multi-Position - PSC Motor
Model: ARUF47D14
Product Discontinued
Features
Specifications
Reviews
How-To Articles
Manuals
Share

Features

    The best air conditioner or heat pump in the world is all for naught if your home lacks proper airflow. That's where the Goodman ARUF air handler comes in. The ARUF is all about effective air distribution. It includes an all-aluminum evaporator coil, multi-speed fan motor, and flowrator. These components ensure that your home stays comfortable and your central system runs efficiently. The ARUF47D14 was designed and built with an emphasis on keeping the installation process short and the equipment's lifespan long to maximize the value for homeowners. If airflow issues are holding your central system back, invest in an ARUF air handler from Goodman.
  • All-Aluminum Coil
  • Goodman's evaporator coils use a reliable all-aluminum design featuring fins and grooved tubes. This design maximizes surface area and optimizes heat transfer for efficient comfort.
  • Dehumidification
  • Goodman's air handlers make it easy to stay cool. The ARUF47D14 is designed to remove moisture from the air, letting you feel cool at higher temperatures.
  • SmartFrame™
  • The ARUF features Goodman's SmartFrame™ sub-structure for enhanced accessibility. It provides tool-less access to the filter rack and includes a coil mounting track that improves installation speed for all four compatible orientations.
  • Secure Cabinet
  • This air handler enjoys reduced noise levels, less than 2% air leakage, and enhanced durability as a result of its insulated, embossed cabinet design.
  • Condensate Management
  • The ARUF's design includes molded diverters, foil-faced insulation, and screw-less construction that help prevent the formation of condensation. A thermoplastic drain pan is included to handle any condensate that does form.
  • Extended Warranty
  • Goodman offers a 10-year limited parts warranty when you register your product online within 60 days of installation. An unregistered product has the standard 5-year warranty. See warranty sheet under the "Manuals" tab for more information.
California residents see
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
For more information go to: www.p65Warnings.ca.gov

Specifications

ARUF47D14
specs product image PID-58565
Overview
Product Category
Air Handler
UPC
663051590052
General Information
Type
Air Handler
Product Line
ARUF
Product Category
Air Handler
Refrigerant Type
R-410A
Blower Motor Type
Multi-Speed
Motor Type
PSC
Mount Type
Multi-Position
Installation Location
Indoor
Electric Heat
Available
Installation Available
Yes
TXV Installed
No
Performance
Capacity Learn More
Capacity
Tonnage, or tons of cooling, is a short hand method for describing the capacity of cooling equipment. One ton is equal to approximately 12 kBTU/hr.
3.5 Tons
Cooling BTU
42000
Maximum Air Flow
1930 CFM
Minimum Air Flow
1420 CFM
Electrical Data
Voltage
208/230 Volts
Phase
1
Frequency
60 Hz
Minimum Circuit Ampacity
4 Amps
Recommended Breaker Size
15 Amps
Dimensions
Suction Connection Size
7/8 Inch
Liquid Connection Size
3/8 Inch
Cabinet Width
24 1/2 Inches
Product Height
58 Inches
Product Width
24 1/2 Inches
Product Depth
21 Inches
Product Weight
150 Pounds
Shipping Weight
165 Pounds
Certifications
ETL Listed
Yes
AHRI Certified
Yes
Warranty Information
Warranty Learn More
Warranty
A warranty is a safeguard from defects in manufacturing and can vary in length and terms. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
5 Years
Parts Warranty Learn More
Parts Warranty
A warranty is a safeguard from defects in manufacturing and can vary in length and terms. Some manufacturers require registration for extended warranty benefits, be sure to check out features and the warranty document. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
10 Limited Years
