Features
- All-Aluminum Coil
- Goodman's evaporator coils use a reliable all-aluminum design featuring fins and grooved tubes. This design maximizes surface area and optimizes heat transfer for efficient comfort.
- Dehumidification
- Goodman's air handlers make it easy to stay cool. The ARUF49D14 is designed to remove moisture from the air, letting you feel cool at higher temperatures.
- SmartFrame™
- The ARUF features Goodman's SmartFrame™ sub-structure for enhanced accessibility. It provides tool-less access to the filter rack and includes a coil mounting track that improves installation speed for all four compatible orientations.
- Secure Cabinet
- This air handler enjoys reduced noise levels, less than 2% air leakage, and enhanced durability as a result of its insulated, embossed cabinet design.
- Condensate Management
- The ARUF's design includes molded diverters, foil-faced insulation, and screw-less construction that help prevent the formation of condensation. A thermoplastic drain pan is included to handle any condensate that does form.
- Extended Warranty
- Goodman offers a 10-year limited parts warranty when you register your product online within 60 days of installation. An unregistered product has the standard 5-year warranty. See warranty sheet under the "Manuals" tab for more information.
The best air conditioner or heat pump in the world is all for naught if your home lacks proper airflow. That's where the Goodman ARUF air handler comes in. The ARUF is all about effective air distribution. It includes an all-aluminum evaporator coil, multi-speed fan motor, and flowrator. These components ensure that your home stays comfortable and your central system runs efficiently. The ARUF49D14 was designed and built with an emphasis on keeping the installation process short and the equipment's lifespan long to maximize the value for homeowners. If airflow issues are holding your central system back, invest in an ARUF air handler from Goodman.
California residents see
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
For more information go to: www.p65Warnings.ca.gov
Specifications
ARUF49D14
Overview
Product Category
Air Handler
UPC
663051559578
General Information
Type
Air Handler
Product Line
ARUF
Product Category
Air Handler
Refrigerant Type
R-410A
Blower Motor Type
Multi-Speed
Motor Type
PSC
Mount Type
Multi-Position
Installation Location
Indoor
Electric Heat
Available
Installation Available
Yes
TXV Installed
No
Performance
Capacity
Capacity
Tonnage, or tons of cooling, is a short hand method for describing the capacity of cooling equipment. One ton is equal to approximately 12 kBTU/hr.
4.0 Tons
Cooling BTU
48000
Maximum Air Flow
1900 CFM
Minimum Air Flow
1410 CFM
Electrical Data
Voltage
208/230 Volts
Phase
1
Frequency
60 Hz
Minimum Circuit Ampacity
4 Amps
Recommended Breaker Size
15 Amps
Dimensions
Suction Connection Size
7/8 Inch
Liquid Connection Size
3/8 Inch
Cabinet Width
24 1/2 Inches
Product Height
53 7/16 Inches
Product Width
24 1/2 Inches
Product Depth
21 Inches
Product Weight
145 Pounds
Shipping Weight
160 Pounds
Certifications
ETL Listed
Yes
AHRI Certified
Yes
Warranty Information
Warranty
Warranty
A warranty is a safeguard from defects in manufacturing and can vary in length and terms. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
5 Years
Parts Warranty
Parts Warranty
A warranty is a safeguard from defects in manufacturing and can vary in length and terms. Some manufacturers require registration for extended warranty benefits, be sure to check out features and the warranty document. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
10 Limited Years
Reviews
(7)
Goodman ARUF49D14 Reviews & Ratings
Product Q&A
Be the First to Ask A Question
Answered by Ken, the eComfort Product Expert
How-To Articles
How an Air Handler Works
If you live in a desert or tropical climate, chances are you have a central air...
How Central Air Conditioning Systems Work
Can you imagine life without air conditioning? Oppressive heat waves that can m...
How to Pick the Perfect Evaporator Coil & Air Handler
Evaporator coils and the refrigerant that flows through them are the veins and ...
Manuals
Ask A Question!
*Required Fields
+
Thank You For Submitting Your Question
Your submission has been sent successfully. Please give our experts up to two business days to respond.
Media Gallery

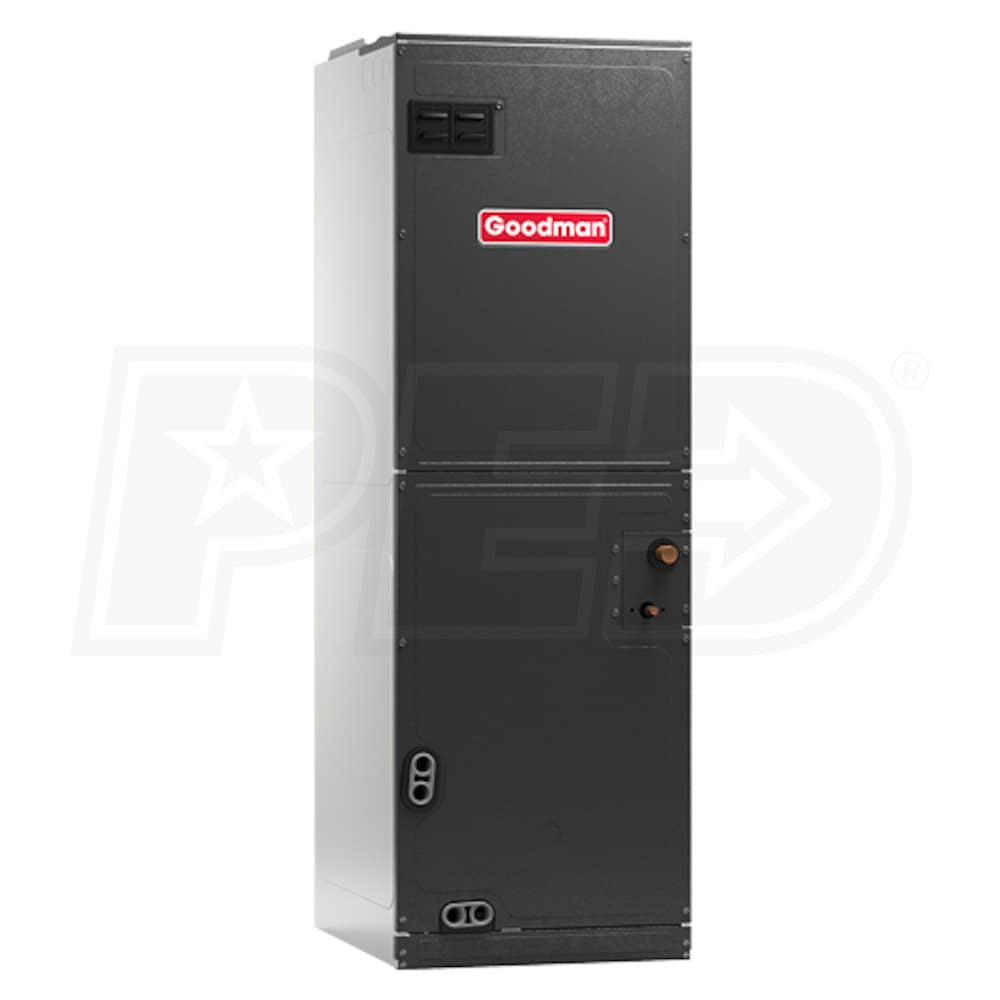

Goodman ARUF - 4 Ton - Air Handler - Multi-Position - PSC Motor
