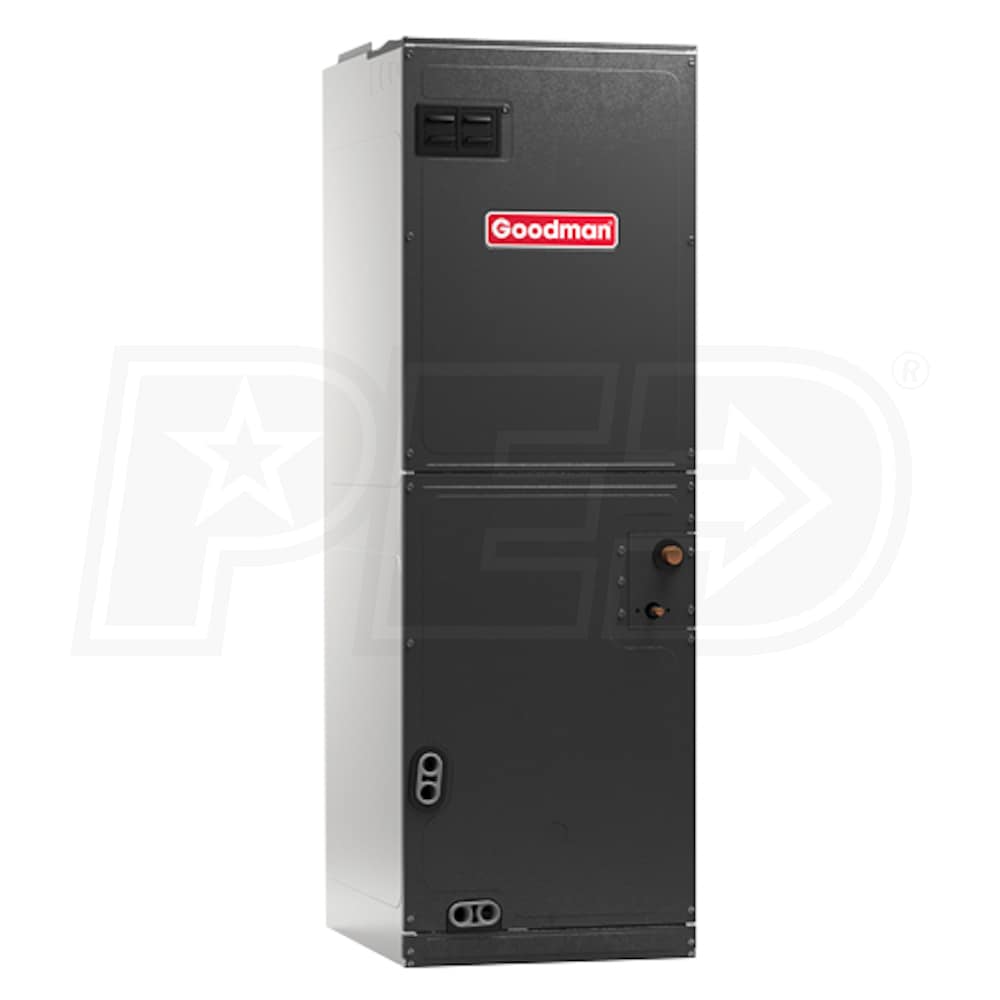

Goodman ASPT - 3.5 Ton - Air Handler - Multi-Position - EEM Motor

Model:

ASPT42D14

Write A Review
Product Discontinued
Sorry, this product is no longer available.
Try this product instead
Goodman ASPT - 3.5 Ton - Air Handler - Multi-Position - EEM Motor
Goodman ASPT - 3.5 Ton - Air Handler - Multi-Position - EEM Motor
Model: ASPT42D14
Product Discontinued
Features
Specifications
Reviews
How-To Articles
Manuals
Share

Features

    The best air conditioner or heat pump in the world is all for naught if your home lacks proper airflow. That's where the Goodman ASPT air handler comes in. The ASPT is all about effective air distribution. It includes an all-aluminum evaporator coil and internal thermostatic expansion valve. These advanced components excel at ensuring that your home stays comfortable and your central system runs efficiently. The EEM fan motor is a huge step up from older models as it requires less electricity to operate and provides more consistent air circulation. The ASPT42D14 was designed and built with an emphasis on keeping the installation process short and the equipment's lifespan long to maximize the value for homeowners. If airflow issues are holding your central system back, invest in an ARPT air handler from Goodman.

    Product Features

    All-Aluminum Coil
    Goodman's evaporator coils use a reliable all-aluminum design featuring fins and grooved tubes. This design maximizes surface area and optimizes heat transfer for efficient comfort.

    Energy-Efficient Circulation
    PSC blower motors are energy hogs. The EEM motor in the ASPT42D14 provides more efficient, more intelligent airflow for your home.

    Internal Thermostatic Expansion Valve
    The ASPT42D14 has a factory-installed internal thermostatic expansion valve. This streamlines installation and maintains ideal refrigerant flow for your system.

    Dehumidification
    Goodman's air handlers make it easy to stay cool. The ASPT is designed to remove moisture from the air, letting you feel cool at higher temperatures.

    SmartFrame
    This air handler features Goodman's SmartFrame sub-structure for enhanced accessibility. It provides tool-less access to the filter rack and includes a coil mounting track that improves installation speed for all four compatible orientations.

    Secure Cabinet
    This air handler enjoys reduced noise levels, less than 2% air leakage, and enhanced durability as a result of its insulated, embossed cabinet design.

    Condensate Management
    The ASPT's design includes molded diverters, foil-faced insulation, and screw-less construction of the cabinet's side and rear sections. These elements help prevent the formation of condensation and keep your system running smoothly.

California residents see
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
For more information go to: www.p65Warnings.ca.gov

Specifications

ASPT42D14
specs product image PID-26423
General Information
Type
Air Handler
Product Line
ASPT
Product Category
Air Handler
Refrigerant Type
R-410A
Blower Motor Type
Multi-Speed
Motor Type
EEM
Mount Type
Multi-Position
Installation Location
Indoor
Electric Heat
Available
Installation Available
Yes
TXV Installed
Yes
UPC
663051478237
Performance
Capacity Learn More
Capacity
Tonnage, or tons of cooling, is a short hand method for describing the capacity of cooling equipment. One ton is equal to approximately 12 kBTU/hr.
3.0 Tons
Cooling BTU
42000
Maximum Air Flow
1720 CFM
Minimum Air Flow
1055 CFM
Electrical Data
Voltage
208/230 Volts
Phase
1
Frequency
60 Hz
Minimum Circuit Ampacity
6 Amps
Recommended Breaker Size
15 Amps
Dimensions
Suction Connection Size
7/8 Inch
Liquid Connection Size
3/8 Inch
Cabinet Width
24 1/2 Inches
Product Height
53 7/16 Inches
Product Width
24 1/2 Inches
Product Depth
21 Inches
Product Weight
110 Pounds
Shipping Weight
155 Pounds
Liquid Valve Connection Size
3/8 Inch
Suction Valve Connection Size
7/8 Inch
Certifications
ETL Listed
Yes
AHRI Certified
Yes
Warranty Information
Warranty Learn More
Warranty
A warranty is a safeguard from defects in manufacturing and can vary in length and terms. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
5 Years
Parts Warranty Learn More
Parts Warranty
A warranty is a safeguard from defects in manufacturing and can vary in length and terms. Some manufacturers require registration for extended warranty benefits, be sure to check out features and the warranty document. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
10 Limited Years
