Features
- All-Aluminum Coil
- Goodman's evaporator coils use a reliable all-aluminum design featuring fins and grooved tubes. This design maximizes surface area and optimizes heat transfer for efficient comfort.
- Energy-Efficient Circulation
- PSC blower motors are energy hogs. The ECM motor in the ASPT49D14 provides more efficient, more intelligent airflow for your home.
- Dehumidification
- Goodman's air handlers make it easy to stay cool. The ASPT is designed to remove moisture from the air, letting you feel cool at higher temperatures.
- SmartFrame™
- This air handler features Goodman's SmartFrame™ sub-structure for enhanced accessibility. It provides tool-less access to the filter rack and includes a coil mounting track that improves installation speed for all four compatible orientations.
- Secure Cabinet
- This air handler enjoys reduced noise levels, less than 2% air leakage, and enhanced durability as a result of its insulated, embossed cabinet design.
- Condensate Management
- The ASPT's design includes molded diverters, foil-faced insulation, and screw-less construction that help prevent the formation of condensation and keep your system running smoothly.
- Extended Warranty
- Goodman offers a 10-year limited parts warranty when you register your product online within 60 days of installation. An unregistered product has the standard 5-year warranty. See warranty sheet under the "Manuals" tab for more information.
- Internal Thermostatic Expansion Valve
- The ASPT Series Air Handler has a factory-installed internal thermostatic expansion valve. This streamlines installation and maintains ideal refrigerant flow for your system.

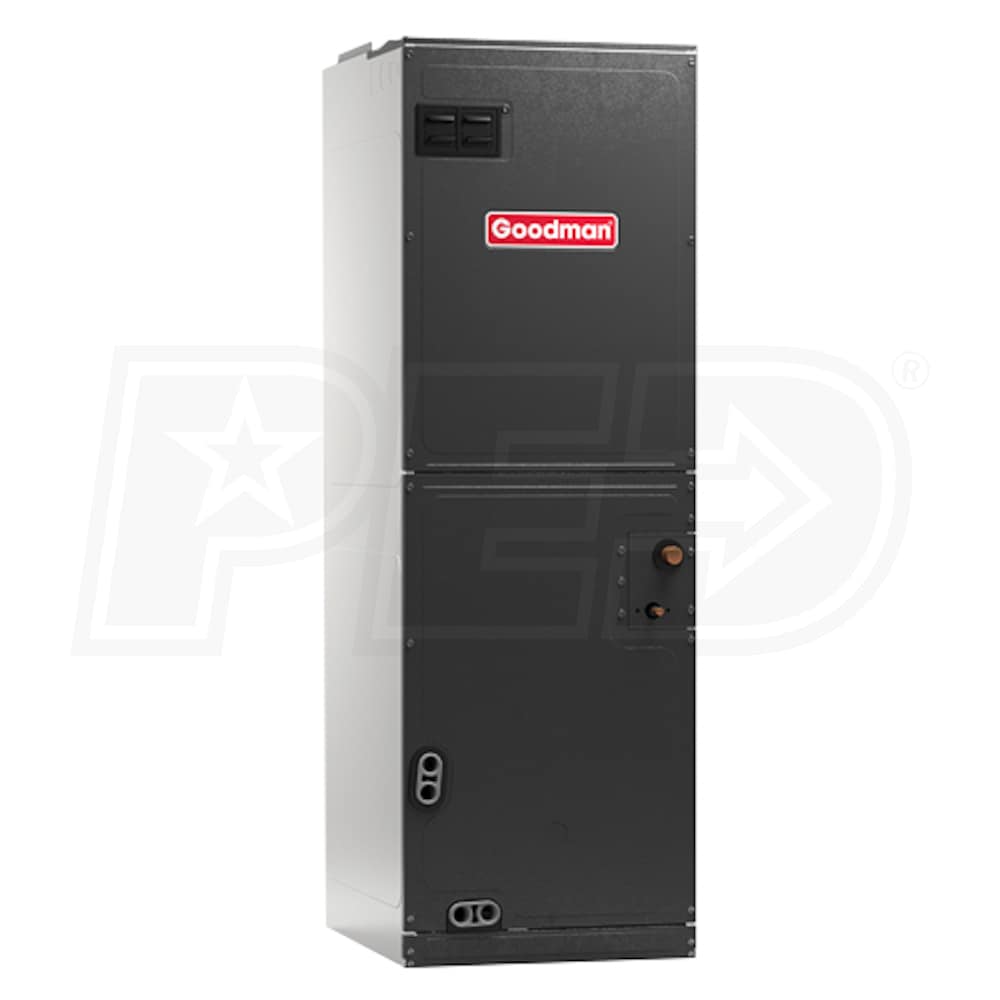

Overview for Goodman ASPT49D14 Air Conditioner Air HandlerThe Goodman ASPT49D14 Air Conditioner Air Handler is factory-sealed to achieve a 2% or less leakage rate and the cabinet is fully painted in an Architectural Gray finish. The Goodman ASPT49D14 Air Conditioner Air Handler feature a direct-drive, multi-speed ECM blower motor. Also the Goodman ASPT49D14 Air Conditioner Air Handler reduces the likelihood of hot and cold spots in the house and provides increased efficiency over standard efficiency motors. All functional parts are covered by a 10-Year Parts Limited Warranty.
The Goodman ASPT ASPT49D14 Multi speed, Multi position Air Handler Electric Furnace with ECM Motor
The Goodman brand is one of the biggest names in home cooling, heating and energy-efficient home comfort.
California residents see
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
For more information go to: www.p65Warnings.ca.gov
Specifications
ASPT49D14
Overview
Product Category
Air Handler
UPC
663051559653
Additional Model Numbers
ASPT49D14, ASPT49D14
General Information
Type
Air Handler
Product Line
ASPT
Product Category
Air Handler
Refrigerant Type
R-410A
Blower Motor Type
Multi-Speed
Motor Type
EEM
Mount Type
Multi-Position
Installation Location
Indoor
Electric Heat
Available
Installation Available
Yes
TXV Installed
Yes
Performance
Capacity
Capacity
Tonnage, or tons of cooling, is a short hand method for describing the capacity of cooling equipment. One ton is equal to approximately 12 kBTU/hr.
4.0 Tons
Cooling BTU
48000
Maximum Air Flow
2215 CFM
Minimum Air Flow
1485 CFM
Electrical Data
Voltage
208/230 Volts
Phase
1
Frequency
60 Hz
Minimum Circuit Ampacity
9 Amps
Recommended Breaker Size
15 Amps
Dimensions
Suction Connection Size
7/8 Inch
Liquid Connection Size
3/8 Inch
Cabinet Width
24 1/2 Inches
Product Height
58 Inches
Product Width
24 1/2 Inches
Product Depth
21 Inches
Product Weight
112 Pounds
Shipping Weight
167 Pounds
Certifications
ETL Listed
Yes
AHRI Certified
Yes
Warranty Information
Warranty
Warranty
A warranty is a safeguard from defects in manufacturing and can vary in length and terms. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
5 Years
Parts Warranty
Parts Warranty
A warranty is a safeguard from defects in manufacturing and can vary in length and terms. Some manufacturers require registration for extended warranty benefits, be sure to check out features and the warranty document. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
10 Limited Years
