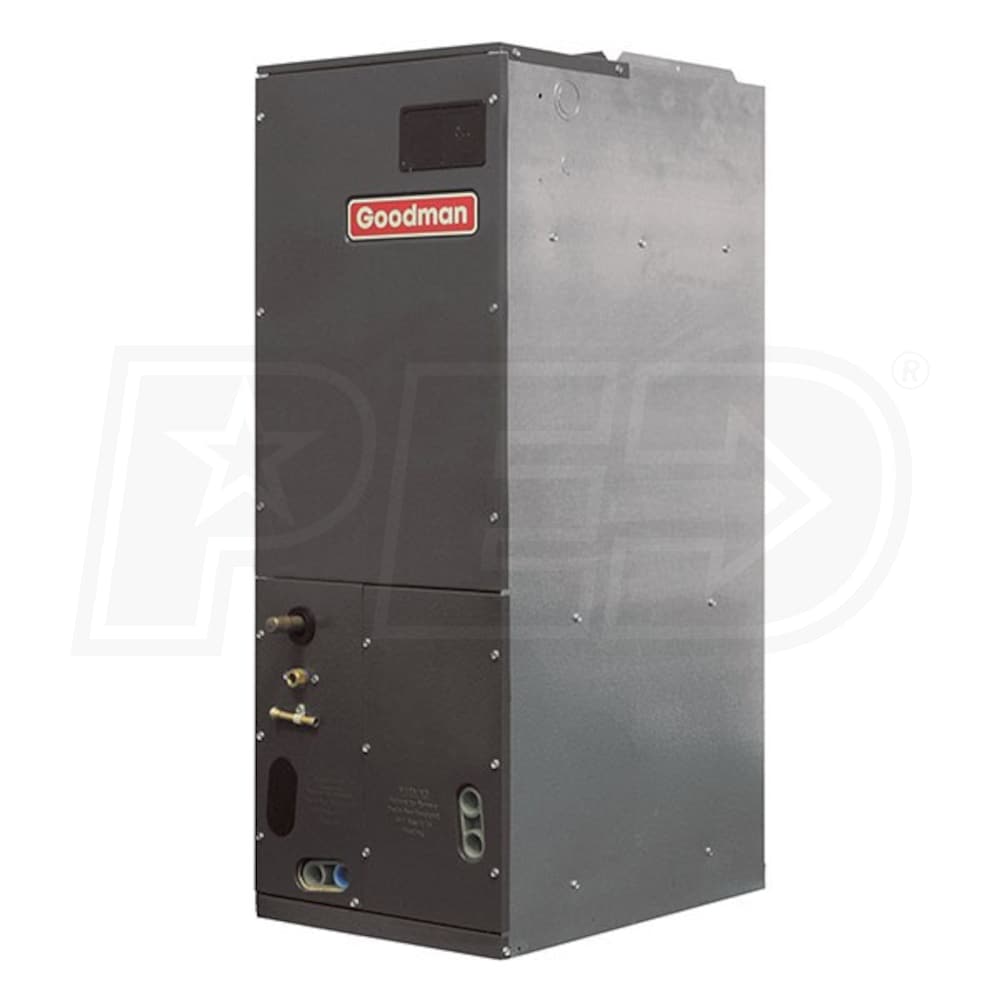

Goodman AVPTC - 4 Ton - Air Handler - Multi-Position - Variable Speed Motor
Model:
AVPTC48D14
+
Share This Product
Features
- All-Aluminum Coil
- Goodman's evaporator coils use a reliable all-aluminum design featuring fins and grooved tubes. This design maximizes surface area and optimizes heat transfer for efficient comfort.
- Energy-Efficient Circulation
- By scaling the airflow to the unique demands and challenges of your home, the advanced variable speed blower motor in the AVPTC provides ideal airflow through shifting conditions in nearly any application
The best air conditioner or heat pump in the world is all for naught if your home lacks proper airflow. Luckily, Goodman's AVPTC air handler provides effective air distribution for homes of nearly all shapes and sizes. It includes an all-aluminum evaporator coil, variable speed fan motor, and internal thermostatic expansion valve. These cutting edge components improve the efficiency of your system and the consistency of your comfort. If you're looking for perfect air circulation, look no further than the AVPTC48D14 air handler. Since it is made by Goodman, the largest HVAC manufacturer in America, you know you're getting a product that will install quickly and last well into the future.
California residents see
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
For more information go to: www.p65Warnings.ca.gov
Specifications
AVPTC48D14
General Information
Type
Air Handler
Product Line
AVPTC
Product Category
Air Handler
Refrigerant Type
R-410A
Blower Motor Type
Variable Speed
Motor Type
ECM
Mount Type
Multi-Position
Installation Location
Indoor
Electric Heat
Available
Installation Available
Yes
TXV Installed
Yes
UPC
663051485631
Performance
Capacity
Capacity
Tonnage, or tons of cooling, is a short hand method for describing the capacity of cooling equipment. One ton is equal to approximately 12 kBTU/hr.
4.0 Tons
Nominal Cooling Capacity
48000 BTU
Maximum Air Flow
1800 CFM
Minimum Air Flow
900 CFM
Electrical Data
Voltage
208/230 Volts
Phase
1
Frequency
60 Hz
Minimum Circuit Ampacity
6.5 Amps
Recommended Breaker Size
15 Amps
Dimensions
Cabinet Width
24 1/2 Inches
Product Height
58 Inches
Product Width
24 1/2 Inches
Product Depth
21 Inches
Shipping Weight
167 Pounds
Liquid Valve Connection Size
3/8 Inch
Suction Valve Connection Size
7/8 Inch
Certifications
ETL Listed
Yes
AHRI Certified
Yes
ISO Certified
Yes
Warranty Information
Warranty
Warranty
A warranty is a safeguard from defects in manufacturing and can vary in length and terms. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
5 Years
Reviews
(2)
Goodman AVPTC48D14 Reviews & Ratings
Working Up to Expectations
By Randy L.
Baton Rouge, Louisiana
Purchased 02/23/2018 |
Review Posted 06/16/2018
I wanted to wait until I received my 1st utility bill since completing installation of this Goodman system before writing a review. I am quite pleased with its performance thus far. It has been warm here (Baton Rouge) since late May with temps from low 70s at night to mid-90s during the day. My energy bill was for 625 kilowatts over 31 days during these temps with thermostat set at 77 daytime and 75 at night, which was sufficiently comfortable considering the unit kept indoor humidity at 40-50%. My home is about 1,400 square feet.
I did have some delays to installation. One was damage to the handler that I didn’t notice when I picked it up at the trucking company freight dock. Despite warnings on the packaging not to stack anything on top, when I unpacked it from the shipping carton there was a significant dent in the top of the cabinet on the side where the electric supply is wired. It took me a few hours to carefully hammer and bend the sheet metal sufficiently plumb to allow for the removal and replacement of the access panel. It wasn’t worth the trouble to return the unit, but it was a pain to have to mess with. Then, when I removed the old condenser unit I noticed the soil was collapsing around the pad and discovered I had a busted sanitary sewer line. So, that took a while to fix before mounting the new Goodman condenser. And, I had to make adjustments in the attic to hang the new handler which is a little longer than the old Trane unit I had, and modify the flex duct. Got a pro (Kennedy Mechanical Services) to sweat the copper, connect the wiring, install the thermostat and bring the line pressures to specs, so it was good to go.
This Goodman heat pump and handler replaced a Trane 14i heat pump/handler system I had for a bit longer than 10 years and had to replace due to a leaky evaporator coil. The Goodman condenser unit runs very quietly. Hope I can get longer service from this Goodman.
I did have some delays to installation. One was damage to the handler that I didn’t notice when I picked it up at the trucking company freight dock. Despite warnings on the packaging not to stack anything on top, when I unpacked it from the shipping carton there was a significant dent in the top of the cabinet on the side where the electric supply is wired. It took me a few hours to carefully hammer and bend the sheet metal sufficiently plumb to allow for the removal and replacement of the access panel. It wasn’t worth the trouble to return the unit, but it was a pain to have to mess with. Then, when I removed the old condenser unit I noticed the soil was collapsing around the pad and discovered I had a busted sanitary sewer line. So, that took a while to fix before mounting the new Goodman condenser. And, I had to make adjustments in the attic to hang the new handler which is a little longer than the old Trane unit I had, and modify the flex duct. Got a pro (Kennedy Mechanical Services) to sweat the copper, connect the wiring, install the thermostat and bring the line pressures to specs, so it was good to go.
This Goodman heat pump and handler replaced a Trane 14i heat pump/handler system I had for a bit longer than 10 years and had to replace due to a leaky evaporator coil. The Goodman condenser unit runs very quietly. Hope I can get longer service from this Goodman.
Randy L. Recommends This
Was this review helpful?
Rating Breakdown
4/5
4/5
5/5
5/5
This Air Handler Seems Like A Good Product
By Mohammed K.
Holiday, Florida
Purchased 06/13/2017 |
Review Posted 07/05/2017
Air handler arrived in time as promised. It seems it is a good machine but it is too early to say.
Mohammed K. Recommends This
Was this review helpful?
Rating Breakdown
5/5
5/5
5/5
5/5
Pros:
Easy To Use, Price,
Cons:
Too Early To Judge
