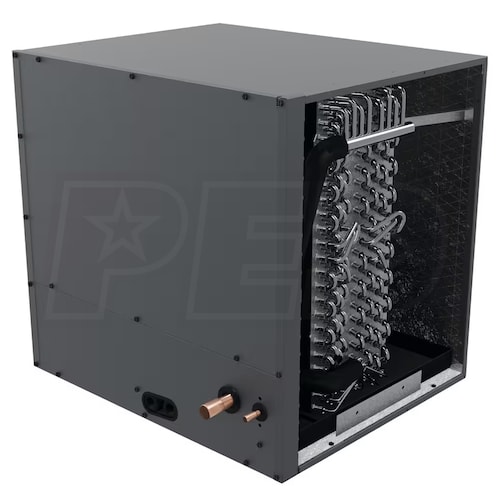

Goodman CHPT - 3.5-5.0 Ton - Horizontal A Coil - Cased - TXV Included - 24.5" Width
Model:
CHPT4860D4
+
Share This Product
Features
- All-Aluminum Coil
- Goodman's evaporator coils use a reliable all-aluminum design featuring fins and grooved tubes. This design maximizes surface area and optimizes heat transfer for efficient comfort.
- Secure Cabinet
- A galvanized, embossed, and insulated cabinet protects this coil and prevents air leakage, providing superior longevity and efficiency.
- Condensate Management
- The CHPT features foil-faced insulation to inhibit the formation of condensate and a UV-resistant DecaBDE-free thermoplastic drain pan with secondary drain connections, keeping your system safe and operational.
- Optimized For R-410A Refrigerant
- The CHPT is compatible with R-410A refrigerant and makes it the perfect fit for any homeowner.
- Internal Thermostatic Expansion Valve
- The CHPT has a factory-installed internal thermostatic expansion valve. This streamlines installation and maintains ideal refrigerant flow for your system.
- Extended Warranty
- Goodman offers a 10-year limited parts warranty when you register your product online within 60 days of installation. An unregistered product has the standard 5-year warranty. See warranty sheet under the "Manuals" tab for more information.
An air conditioner or heat pump is only as good as its evaporator coil. Luckily, Goodman designs their evaporator coils with the same mind for accessibility, longevity, and value as their other heating and cooling equipment. The CHPT is a cased A coil for use in horizontal airflow applications. The all-aluminum construction and advanced design of this coil improves its durability and heat transfer efficiency.
California residents see
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
For more information go to: www.p65Warnings.ca.gov
Specifications
CHPT4860D4
General Information
Type
Evaporator Coil
Product Line
CHPT
Product Category
Evaporator Coil
Refrigerant Type
R-410A
Casing
Cased
Style
A Coil
Configuration
Configuration
Orientation describes the direction that air will flow through a piece of equipment. (e.g. air will flow horizontally through a "Horizontal" unit heater.) Most equipment will only function properly if installed in the proper orientation.
Horizontal
Installation Available
Yes
TXV Installed
Yes
Performance
Capacity
Capacity
Tonnage, or tons of cooling, is a short hand method for describing the capacity of cooling equipment. One ton is equal to approximately 12 kBTU/hr.
3.5 - 5.0 Tons
Cooling BTU
60000
Nominal Minimum Cooling Capacity
60000 BTU
Dimensions
Suction Connection Size
7/8 Inch
Liquid Connection Size
3/8 Inch
Cabinet Width
24 1/2 Inches
Product Height
24 1/2 Inches
Product Width
26 Inches
Product Depth
21 1/8 Inches
Product Weight
66 Pounds
Shipping Weight
81 Pounds
Certifications
ETL Listed
Yes
AHRI Certified
Yes
ISO Certified
Yes
Warranty Information
Warranty
Warranty
A warranty is a safeguard from defects in manufacturing and can vary in length and terms. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
10 Years
Parts Warranty
Parts Warranty
A warranty is a safeguard from defects in manufacturing and can vary in length and terms. Some manufacturers require registration for extended warranty benefits, be sure to check out features and the warranty document. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
10 Limited Years
