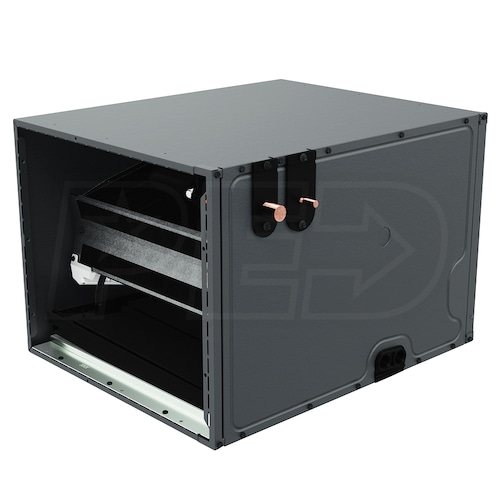

Goodman CHPTA - 1.5 Ton - Horizontal A Coil - Cased - TXV Included - 17.5" Width - R-32

Model:

CHPTA1822B3

Write A Review
$812.00
Free Shipping
&
Lift Gate
  Learn More About Free Freight
Free Shipping & Lift Gate
*This product qualifies for Free Shipping anywhere in the contiguous US. Accessories may ship separately. Items over 100lbs shipped via semi-truck, be sure to select "Lift Gate" to lower the product to the ground curbside. Remote area surcharges may apply, see our full shipping policy for more details.
In-Stock
Ships in 2-5 Business Days
Shipping to60601
synchrony card logo
$136 / Month
Suggested monthly payments with 6 month financing.
Goodman CHPTA - 1.5 Ton - Horizontal A Coil - Cased - TXV Included - 17.5
Goodman CHPTA - 1.5 Ton - Horizontal A Coil - Cased - TXV Included - 17.5" Width - R-32
Model: CHPTA1822B3
$812.00
Accessories
Features
Specifications
Reviews
Product Q&A
How-To Articles
Manuals
Share

Recommended Accessories

eComfort expert image
Expert Recommended Accessories Selected by Ken, our Expert
Required Accessories 9
These accessories are required to properly setup/install this product.
Optional Accessories 10

Features

    An air conditioner or heat pump is only as good as its evaporator coil. Luckily, Goodman designs their evaporator coils with the same mind for accessibility, longevity, and value as their other heating and cooling equipment. The CHPTA is a cased A coil for use in horizontal airflow applications. The all-aluminum construction and advanced design of this coil improves its durability and heat transfer efficiency.
  • All-Aluminum Evaporator Coil
  • Goodman's evaporator coils use a reliable all-aluminum design featuring fins and grooved tubes. This design maximizes surface area and optimizes heat transfer for efficient comfort.
  • Secure Cabinet
  • A galvanized, embossed, and insulated cabinet protects this coil and prevents air leakage, providing superior longevity and efficiency.
  • Condensate Management
  • The CHPTA features foil-faced insulation to inhibit the formation of condensate and a UV-resistant DecaBDE-free thermoplastic drain pan with secondary drain connections, keeping your system safe and operational.
  • Optimized For R-32 Refrigerant
  • The CHPTA is compatible with R-32 refrigerant and makes it the perfect fit for any homeowner.
  • Internal Thermostatic Expansion Valve
  • The CHPTA has a factory-installed internal thermostatic expansion valve. This streamlines installation and maintains ideal refrigerant flow for your system.
  • Extended Warranty
  • Goodman offers a 10-year limited parts warranty when you register your product online within 60 days of installation. An unregistered product has the standard 5-year warranty. See warranty sheet under the "Manuals" tab for more information.
  • Product Note
    This product is compatible with R-32 equipment only. A Goodman Furnace Integration Kit Model: 0230K00044 is required to properly setup/install this product.
California residents see
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
For more information go to: www.p65Warnings.ca.gov

Specifications

CHPTA1822B3
specs product image PID-154221
General Information
Type
Evaporator Coil
Product Line
CHPTA
Product Category
Evaporator Coil
Refrigerant Type
R-32
Casing
Cased
Style
A Coil
Configuration Learn More
Configuration
Orientation describes the direction that air will flow through a piece of equipment. (e.g. air will flow horizontally through a "Horizontal" unit heater.) Most equipment will only function properly if installed in the proper orientation.
Horizontal
Installation Available
Yes
TXV Installed
Yes
UPC
663051688476
Performance
Capacity Learn More
Capacity
Tonnage, or tons of cooling, is a short hand method for describing the capacity of cooling equipment. One ton is equal to approximately 12 kBTU/hr.
1.5 Tons
Cooling BTU
18000
Nominal Minimum Cooling Capacity
18000 BTU
Dimensions
Suction Connection Size
3/4 Inch
Liquid Connection Size
3/8 Inch
Cabinet Width
17 1/2 Inches
Product Height
17 1/2 Inches
Product Width
22 Inches
Product Depth
21 Inches
Product Weight
35 Pounds
Shipping Weight
50 Pounds
Certifications
ETL Listed
Yes
AHRI Certified
Yes
ISO Certified
Yes
Warranty Information
Parts Warranty Learn More
Parts Warranty
A warranty is a safeguard from defects in manufacturing and can vary in length and terms. Some manufacturers require registration for extended warranty benefits, be sure to check out features and the warranty document. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
10 Limited Years
