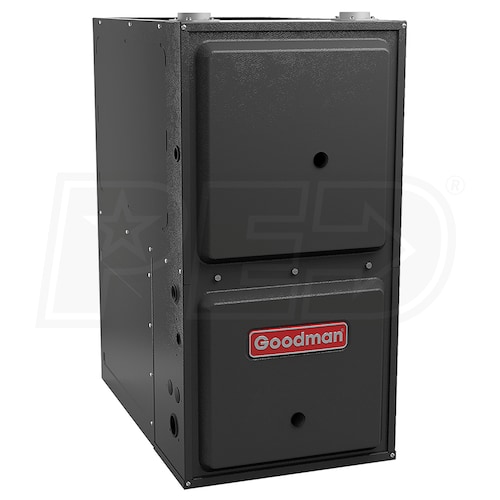

Goodman GC9C96 - 60k BTU - Gas Furnace - 96% AFUE

Model:

GC9C960603BN

Write A Review
Product Discontinued
Sorry, this product is no longer available.
Try this product instead
Goodman GC9C96 - 60k BTU - Gas Furnace - 96% AFUE
Goodman GC9C96 - 60k BTU - Gas Furnace - 96% AFUE
Model: GC9C960603BN
Product Discontinued
Accessories
Features
Specifications
Reviews
How-To Articles
Manuals
Share

Recommended Accessories

eComfort expert image
Expert Recommended Accessories Selected by Ken, our Expert
Required Accessories 9
These accessories are required to properly setup/install this product.
Optional Accessories 10

Features

    Goodman GC9C96 two-stage, multi-speed furnace was designed to provide premium efficiency at an affordable price. It features Goodman's superior heat exchanger design for the primary heat exchanger and an additional secondary heat exchanger to ensure that your energy dollars aren't being vented out of your home. This combination results in a furnace that converts 96% of the energy used directly into heat for your home, Goodman's highest mark for a two-stage furnace. Instead of a standard multi-speed blower motor, the GC9C96 utilizes a 9-Speed ECM motor, which uses less power and provides smarter circulation. The value doesn't end at efficiency, the GC9C96 features many different connection options to reduce installation time and a self-diagnosing control board to expedite maintenance. If you're looking to cut your energy bills and improve your comfort without breaking the bank, your search stops with the GC9C96.
  • Advanced Heat Exchanger Design
  • The GC9C96 furnace employs a reliable aluminized-steel tubular heat exchanger design. Aluminized steel is used for incredibly efficient heat transfer, and a wrinkle-bend is applied to the tubes to enhance the heat exchanger's dependability and longevity.
  • Secondary Heat Exchanger
  • This furnace produces addition heat by directing combustion gases through a secondary heat exchanger before they are vented. The secondary heat exchanger is made of corrosion-resistant stainless steel and it is sloped to prevent condensate build-up.
  • Quiet Comfort
  • The blower, motor, and gas valve of the GC9C96 were selected for their incredibly low sound levels. Additionally, this unit's fan speed options make it easy to maintain virtually silent circulation.
  • Venting Options
  • The GC9C96 offers several venting options to streamline installation in a variety of applications. It can be used in either a two-pipe direct vent setup or a single-pipe configuration with combustion air.
  • Secure Cabinet
  • All GC9C96 furnaces are protected by a durable steel cabinet rated for less than 2% air leakage. The heat exchanger section is lined with foil-insulation to prevent heat loss and the return side of the cabinet is solid and airtight.
  • Easy Integration
  • The GC9C96 makes it simple to enhance your system with a humidifier and an electronic air cleaner; just wire them directly to the low-voltage terminals on the control board.
  • Extended Warranty
  • Goodman offers a 10-year limited unit replacement and parts warranty when you register your product online within 60 days of installation. An unregistered product has the standard 5-year warranty. See the "Manuals" tab for more information.
California residents see
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
For more information go to: www.p65Warnings.ca.gov

Specifications

GC9C960603BN
specs product image PID-117606
Overview
Product Category
Furnace
UPC
663051627062
General Information
Type
Gas Furnace
Product Line
GC9C96
Product Category
Furnace
Fuel Type Learn More
Fuel Type
To create heat, some form of fuel is required. Fuel Type specifies what the product uses as an input to create heat.
Natural Gas
Vent Type Learn More
Vent Type
Products that use combustion (burning) of fuel to create heat also create potentially dangerous gasses that need to be exhausted (AKA "Vented"). Depending on the product, venting can be done via a chimney, through a side wall, or use a second vent to provide fresh air to the appliance.
Direct Vent
Modulating/Staging Learn More
Modulating/Staging
Stages are unique speeds or levels that equipment can operate at. More stages allow for better fine-tuned control of output, which improves comfort and efficiency. Modulating equipment can operate across a range of levels, giving the highest level of fine-tuned control. Learn More
Two Stage
Blower Motor Type
ECM Multi-Speed
Configuration Learn More
Configuration
Orientation describes the direction that air will flow through a piece of equipment. (e.g. air will flow horizontally through a "Horizontal" unit heater.) Most equipment will only function properly if installed in the proper orientation.
Downflow/Horizontal
Gas Conversion Kit
Available
DOE Regional Compliance Learn More
DOE Regional Compliance
In 2015, the US Department of Energy broke the country into three regions - North, Southeast, and Southwest - and set legal standards for energy efficiency within each region. Learn More
Nationwide (Except CA)
Installation Available
Yes
Performance
AFUE Learn More
AFUE
AFUE (Annual Fuel Utilization Efficiency) measures the efficiency of combustion equipment over the entire heating season, and is calculated by dividing the amount of energy that is actually heating your home by the total energy contained in the fuel used by the boiler/furnace. Learn More
96 %
Heating BTU
60000
High Fire Input
60000 BTU
High Fire Output
60000 BTU
Low Fire Input
42000 BTU
Low Fire Output
40320 BTU
Maximum Air Flow
1200 CFM
Ultra Low NOx Emissions Learn More
Ultra Low NOx Emissions
NOx is a byproduct of the combustion process, and it's output is regulated in some jurisdictions. Many regulators mirror SCAQMD rules, which regulate air quality for some parts of Southern California. Ultra Low NOx appliances emit less than 10-14 ng/J (nanogram per Joule) of NOx. Learn More
No
Low NOx Emissions Learn More
Low NOx Emissions
NOx is a byproduct of the combustion process, and it's output is regulated in some jurisdictions. Many regulators mirror SCAQMD rules, which regulate air quality for some parts of Southern California. Low NOx appliances emit less than 40 ng/J (nanogram per Joule) of NOx. Learn More
Yes
Electrical Data
Voltage
115 Volts
Phase
1
Frequency
60 Hz
Minimum Circuit Ampacity
8 Amps
Recommended Breaker Size
15 Amps
Dimensions
Flue Connection Size
2 or 3 Inches
Cabinet Width
17 1/2 Inches
Product Height
34 1/2 Inches
Product Width
17 1/2 Inches
Product Depth
28 3/4 Inches
Product Weight
115 Pounds
Shipping Weight
115 Pounds
Certifications
ETL Listed
Yes
Energy Star Listed
Yes
AHRI Certified
Yes
ISO Certified
Yes
AHRI Reference Number
207349253
Warranty Information
Parts Warranty Learn More
Parts Warranty
A warranty is a safeguard from defects in manufacturing and can vary in length and terms. Some manufacturers require registration for extended warranty benefits, be sure to check out features and the warranty document. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
10 Years
Heat Exchanger Warranty
Lifetime Years
