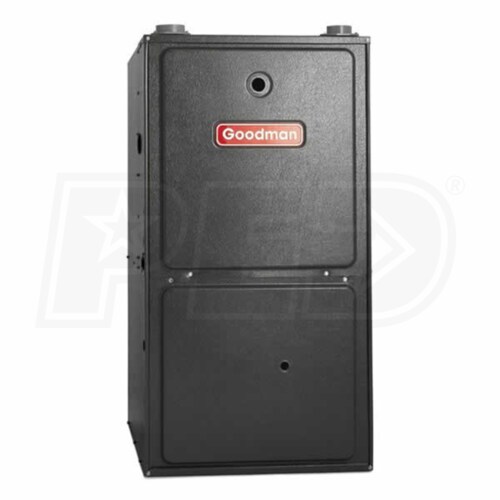

Goodman GMVC95 - 90,000 BTU - Gas-Fired Furnace - NG - 96.1% AFUE - Two-Stage - Upflow/Horizontal - Variable-Speed
Model:
GMVC950905DX
+
Share This Product
Recommended Accessories
Expert Recommended Accessories
Selected by Ken, our Expert
Optional Accessories
2
Model: 173-600-011
Quality
Quality
Quality is determined by the type of particulates filtered out of the air. The higher the MERV the better the filtration. Learn More
Frequency
Frequency
Select how often you will receive your air filters, we offer many options to meet your air quality standards.
Quantity
Quantity
This will be how many filters you receive per delivery.
Quality
Quality
Quality is determined by the type of particulates filtered out of the air. The higher the MERV the better the filtration. Learn More
Quantity
$6.99
In-Stock
$36.00
Features
The Goodman GMVC95 two-stage gas furnace typically runs up to 90% of the time at a low speed that maintains the temperature of your home on most days. Traditional, single stage furnaces only operate in binary fashion, on or off. Two stage furnaces such as this one, typically have three modes, off, low, and high. This gives the furnace the best of low level heating efficiency while still having the capability of quietly ramping up the temperature on more extremely cold days. This efficiency directly translates to consumer savings. 95 cents of every dollar directly translates to warming your home.
Product Features
Aluminized-Steel Primary Tubular Heat Exchanger
The dual-diameter configuration, built from quality, heat-efficient materials, contributes to the high efficiency of the furnace. This configuration results in a reliable, durable, and energy-saving furnace that will last for years to come.
Quiet Variable Speed Circulator Motor
This motor operates quitely and along a gradient of speeds. The ability to precisely adjust the speed of the motor allows for efficient use of the warm air generated. A consistent, lower speed is instrumental in the prevention of cold periods between warming cycles that occur in traditional furnaces.
Factory Tested
This furnace is factory tested to ensure there are no problems with the construction. This extra care, plus Goodman's long-term warranty, can guarantee that your furnace will function exactly as it should.
ComfortNet Communications System
The ComfortNet system is a total control electronic system between your air conditioner, thermostat, and any other parts of your home environment control system. This system is an intuitive and elegant control scheme for residential use.
California residents see
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
For more information go to: www.p65Warnings.ca.gov
Specifications
GMVC950905DX
General Information
Type
Gas Furnace
Product Line
GMVC95
Fuel Type
Fuel Type
To create heat, some form of fuel is required. Fuel Type specifies what the product uses as an input to create heat.
Natural Gas
Vent Type
Vent Type
Products that use combustion (burning) of fuel to create heat also create potentially dangerous gasses that need to be exhausted (AKA "Vented"). Depending on the product, venting can be done via a chimney, through a side wall, or use a second vent to provide fresh air to the appliance.
Direct Vent
Modulating/Staging
Modulating/Staging
Stages are unique speeds or levels that equipment can operate at. More stages allow for better fine-tuned control of output, which improves comfort and efficiency. Modulating equipment can operate across a range of levels, giving the highest level of fine-tuned control. Learn More
Staging
Blower Motor Type
Variable-Speed
Motor Type
ECM
Configuration
Configuration
Orientation describes the direction that air will flow through a piece of equipment. (e.g. air will flow horizontally through a "Horizontal" unit heater.) Most equipment will only function properly if installed in the proper orientation.
Upflow/Horizontal
Gas Conversion Kit
Available
Gas Valve Stages
Two-Stage
DOE Regional Compliance
DOE Regional Compliance
In 2015, the US Department of Energy broke the country into three regions - North, Southeast, and Southwest - and set legal standards for energy efficiency within each region. Learn More
Nationwide (Except CA)
Installation Available
No
Performance
AFUE
AFUE
AFUE (Annual Fuel Utilization Efficiency) measures the efficiency of combustion equipment over the entire heating season, and is calculated by dividing the amount of energy that is actually heating your home by the total energy contained in the fuel used by the boiler/furnace. Learn More
96.1 %
Heating BTU
90000
High Fire Output
86500 BTU
Low Fire Input
63000 BTU
Low Fire Output
60500 BTU
Maximum Air Flow
2000 CFM
Electrical Data
Voltage
115 Volts
Phase
1
Frequency
60 Hz
Minimum Circuit Ampacity
14.4 Amps
Recommended Breaker Size
15 Amps
Dimensions
Flue Connection Size
2 Inches
Product Height
40 3/4 Inches
Product Width
24 1/2 Inches
Product Depth
28 3/4 Inches
Shipping Weight
155 Pounds
Certifications
ETL Listed
Yes
AHRI Certified
Yes
Warranty Information
Parts Warranty
Parts Warranty
A warranty is a safeguard from defects in manufacturing and can vary in length and terms. Some manufacturers require registration for extended warranty benefits, be sure to check out features and the warranty document. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
10 Years
