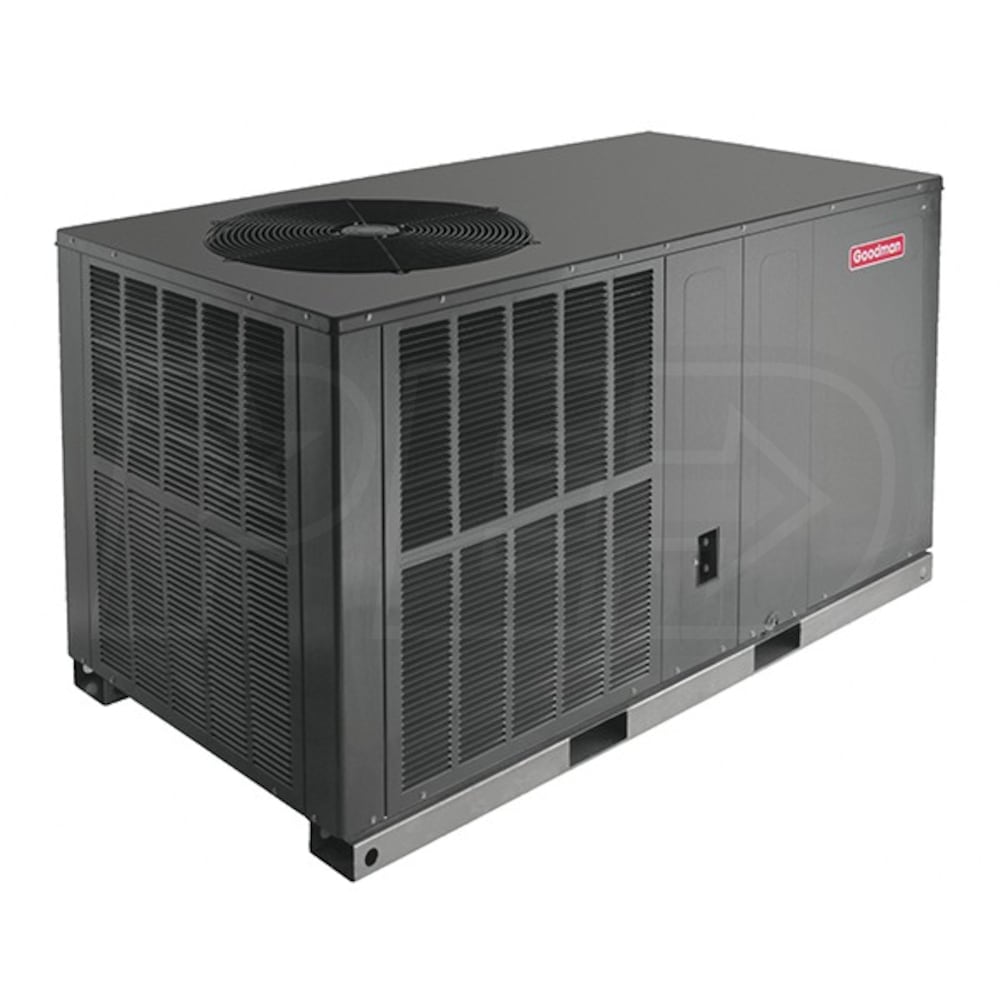

Goodman GPC14H - 5 Ton - Packaged Air Conditioner - 14 SEER - Horizontal - 208-230/1/60 (Scratch & Dent)
Model:
GPC1460H41-SD
+
Share This Product
Recommended Accessories
Expert Recommended Accessories
Selected by Ken, our Expert
Required Accessories
9
These accessories are required to properly setup/install this product.
Optional Accessories
10
Features
- Advanced Coil Design
- The condenser coil of this packaged unit is designed with aluminum fins and copper tubing to maximize surface area and efficiency. It also features a durable all-aluminum evaporator coil that optimizes heat transfer.
- High-Efficiency Compressor
- This unit utilizes a high-efficiency scroll compressor with an internal relief valve to provide refrigerant flow. Scroll compressors are renowned for operating more smoothly and reliably than traditional compressors.
- Secure Cabinet
- The cabinet of the GPC1460H41 is built to last. A galvanized steel casing with a powder paint finish prevents fading and corrosion while louvered panels and a coil guard keep the most important components secure.
- Filter Drier
- A filter drier is installed in the liquid line of this packaged unit's air conditioner. It serves two important purposes: removing moisture and trapping impurities. This prevents corrosion, freezing, and blockages that can negatively impact operation.
- Quiet Comfort
- A sound insulated blower compartment and quiet horizontal discharge system mean that the GPC1460H41 provides comfort without disrupting your home.
- Energy-Efficient Circulation
- PSC blower motors are energy hogs. The EEM motor in the GPC1460H41 reduces electrical consumption, ensuring efficient circulation.

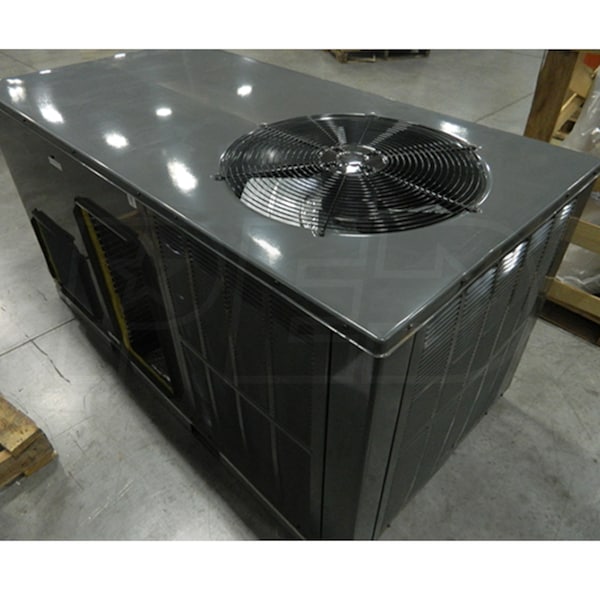

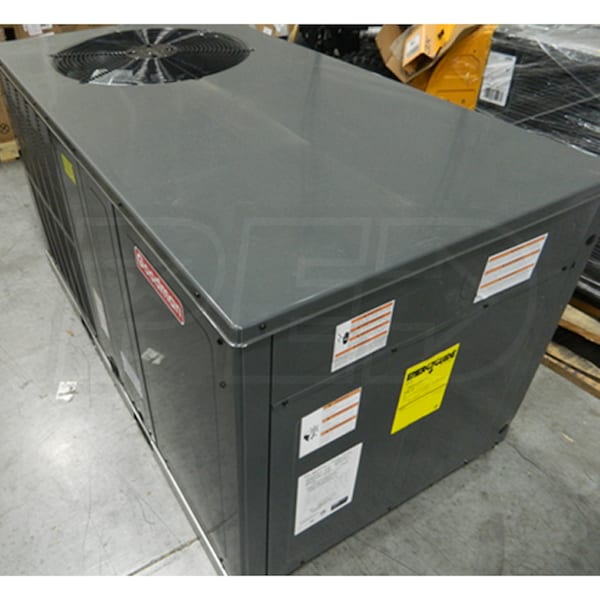

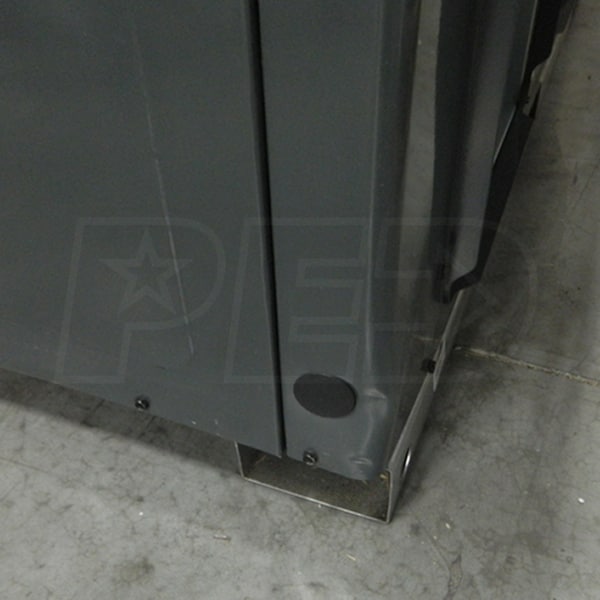

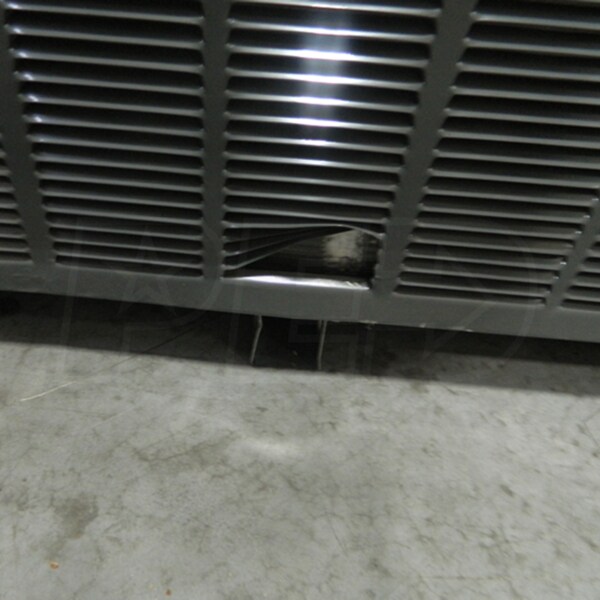

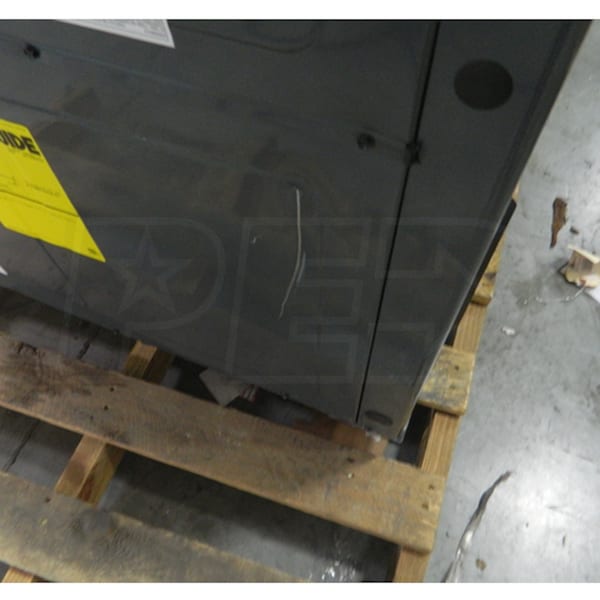

***Scratch & Dent*** Dented Side Panel, Damaged Packaging.
Goodman's packaged air conditioners are the perfect cooling solution for nearly any residential application. The GPC14H combines a Goodman air conditioner, evaporator coil, and blower to provide efficient cooling from a single convenient unit. A scroll compressor provides consistent refrigerant flow, and Goodman's superior coil design is featured to ensure efficient energy use. The GPC14H even includes convenient access panels that make for a quick installation. Streamline your comfort today with a Goodman packaged unit.
California residents see
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
For more information go to: www.p65Warnings.ca.gov
Specifications
GPC1460H41-SD
Overview
Product Category
Packaged HVAC Unit
UPC
GPC1460H41
General Information
Type
Air Conditioner Packaged Unit
Product Line
GPC14H
Product Category
Packaged HVAC Unit
Operating Mode
Operating Mode
Some products are only capable of cooling, while others can either heat or cool a space. Some products heat via "heat pump" technology while others use electric heating elements. Learn More
Cooling
Refrigerant Type
R-410A
Configuration
Configuration
Orientation describes the direction that air will flow through a piece of equipment. (e.g. air will flow horizontally through a "Horizontal" unit heater.) Most equipment will only function properly if installed in the proper orientation.
Horizontal
Installation Location
Outdoor
Compressor Stages
Compressor Stages
Stages are the distinct levels of output that an air conditioner or heat pump can deliver. Having more than one stage allows the equipment to better match the needs of the space and deliver better comfort and more efficiency.
Single Stage
DOE Regional Compliance
DOE Regional Compliance
In 2015, the US Department of Energy broke the country into three regions - North, Southeast, and Southwest - and set legal standards for energy efficiency within each region. Learn More
Nationwide
Installation Available
No
Performance
Capacity
Capacity
Tonnage, or tons of cooling, is a short hand method for describing the capacity of cooling equipment. One ton is equal to approximately 12 kBTU/hr.
5.0 Tons
Cooling Capacity
57500 BTU
SEER
SEER
SEER (Seasonal Energy Efficiency Ratio) is a measurement of cooling efficiency over a typical cooling season. It is useful for comparing energy efficiency of cooling systems. The higher the SEER, the more energy efficient the system. Learn More
14.0
EER
EER
EER (Energy Efficiency Ratio) is a measurement of cooling efficiency under fixed conditions. It is useful for comparing units that will operate consistently under one set of conditions (e.g. server room). The higher the EER, the more efficient the system. Learn More
11.5
Maximum Air Flow
1726 CFM
Minimum Air Flow
1314 CFM
Maximum Sound Level
Maximum Sound Level
Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB. Learn More
80 dB
Electrical Data
Voltage
208/230 Volts
Phase
1
Frequency
60 Hz
Minimum Circuit Ampacity
40 Amps
Recommended Breaker Size
60 Amps
Dimensions
Product Height
35 1/2 Inches
Product Width
66 Inches
Product Depth
33 Inches
Product Weight
375 Pounds
Shipping Weight
370 Pounds
Certifications
ETL Listed
Yes
AHRI Certified
Yes
ISO Certified
Yes
Warranty Information
Parts Warranty
Parts Warranty
A warranty is a safeguard from defects in manufacturing and can vary in length and terms. Some manufacturers require registration for extended warranty benefits, be sure to check out features and the warranty document. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
10 Limited Years
Compressor Warranty
Limited* 10 Years
