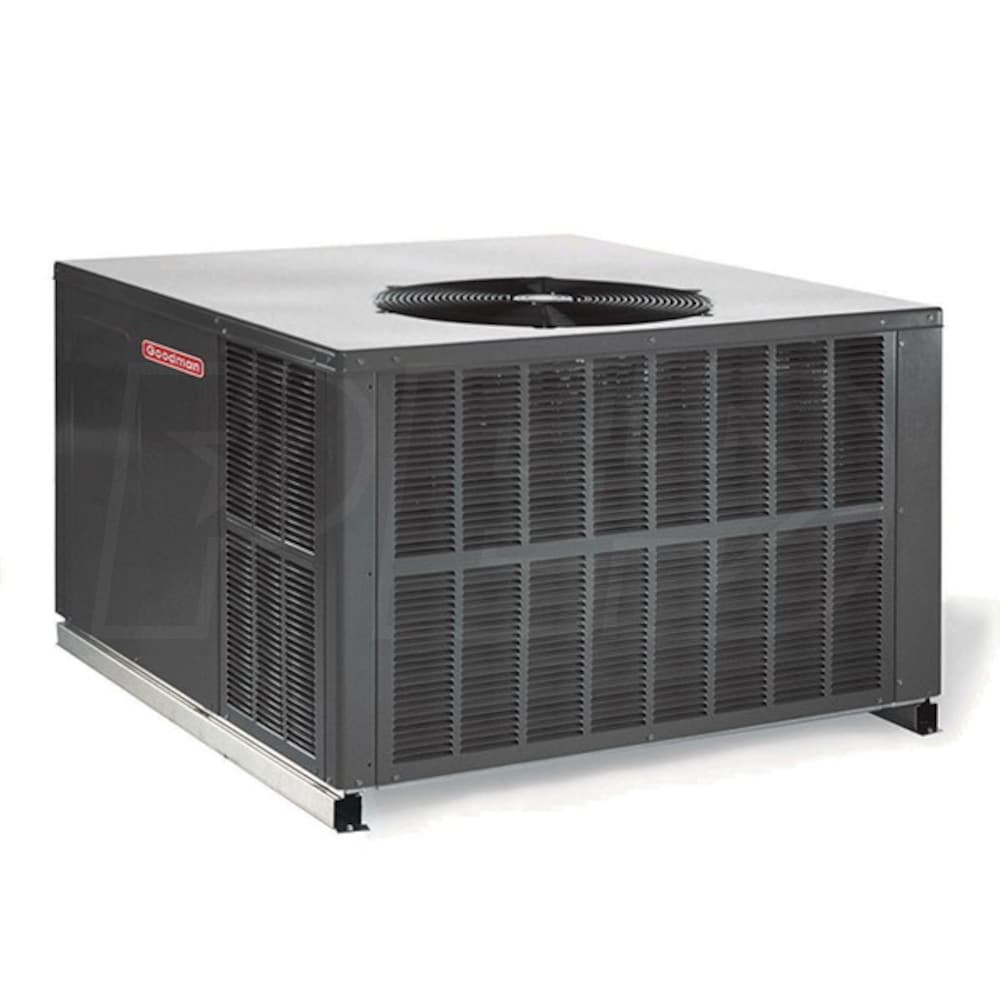

Goodman GPH15M - 3.5 Ton - Packaged Heat Pump System - 15 SEER - 8.0 HSPF - Downflow/Horizontal - 208-230/1/60
Model:
GPH1543M41
+
Share This Product
Recommended Accessories
Expert Recommended Accessories
Selected by Ken, our Expert
Required Accessories
9
These accessories are required to properly setup/install this product.
Optional Accessories
10
Features
Goodman's packaged units are the perfect all-in-one comfort solution for nearly any residential application. The GPH15M combines a Goodman heat pump, evaporator coil, and blower to provide efficient heating and cooling from a single unit. A scroll compressor provides consistent refrigerant flow, and Goodman's superior coil design is featured to ensure high efficiency regardless of whether you're heating or cooling your home. The GPH1543M41 can be used in either downflow or horizontal airflow applications. It even features convenient access panels that make installation and maintenance a breeze. Streamline your comfort today with this Goodman packaged unit.
Product Features
High-Efficiency Coils
The condenser coil of this packaged unit is designed with aluminum fins and rifled copper tubing to maximize surface area and efficiency. It also features a durable all-aluminum evaporator coil that optimizes heat transfer
Secure Design
The cabinet of the GPH1543M41 is built to last. A galvanized steel casing and UV-resistant powder paint prevent fading and corrosion. Louvered panels and a coil guard are employed to keep the most important components secure.
Filter Drier
A biflow filter drier is installed in the liquid line of this packaged unit's heat pump. It serves two important purposes: removing moisture and trapping impurities. This prevents corrosion, freezing, and blockages that can negatively impact the operation of the heat pump.
Quiet Comfort
A sound insulated blower compartment means that the GPH1543M41 provides year-round comfort without disrupting your home.
Scroll Compressor
This unit utilizes a high-efficiency scroll compressor with an internal relief valve to provide refrigerant flow. Scroll compressors are renowned for operating more smoothly and reliably than traditional compressors.
EEM Blower
PSC blower motors are energy hogs. The EEM motor in the GPH1543M41 consumes less electricity, ensuring energy-efficient circulation.
Compressor Protection
Goodman installed two layers of compressor protection in the GPH1543M41. A suction accumulator collects excess liquid refrigerant, preventing it from flooding and damaging the compressor during operation. A crankcase heater ensures that the compressor stays well-oiled by maintaining a compressor temperature that discourages oil migration.
California residents see
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
For more information go to: www.p65Warnings.ca.gov
Specifications
GPH1543M41
General Information
Type
Heat Pump Packaged Unit
Product Line
GPH15M
Operating Mode
Operating Mode
Some products are only capable of cooling, while others can either heat or cool a space. Some products heat via "heat pump" technology while others use electric heating elements. Learn More
Cooling & Heating
Refrigerant Type
R-410A
Blower Motor Type
Multi-Speed
Motor Type
EEM
Configuration
Configuration
Orientation describes the direction that air will flow through a piece of equipment. (e.g. air will flow horizontally through a "Horizontal" unit heater.) Most equipment will only function properly if installed in the proper orientation.
Downflow/Horizontal
Installation Location
Outdoor
Compressor Stages
Compressor Stages
Stages are the distinct levels of output that an air conditioner or heat pump can deliver. Having more than one stage allows the equipment to better match the needs of the space and deliver better comfort and more efficiency.
Single Stage
DOE Regional Compliance
DOE Regional Compliance
In 2015, the US Department of Energy broke the country into three regions - North, Southeast, and Southwest - and set legal standards for energy efficiency within each region. Learn More
Nationwide
Installation Available
No
UPC
663051484429
Performance
Capacity
Capacity
Tonnage, or tons of cooling, is a short hand method for describing the capacity of cooling equipment. One ton is equal to approximately 12 kBTU/hr.
3.5 Tons
Nominal Cooling Capacity
40000 BTU
Heating BTU
39000
SEER
SEER
SEER (Seasonal Energy Efficiency Ratio) is a measurement of cooling efficiency over a typical cooling season. It is useful for comparing energy efficiency of cooling systems. The higher the SEER, the more energy efficient the system. Learn More
15.0
EER
EER
EER (Energy Efficiency Ratio) is a measurement of cooling efficiency under fixed conditions. It is useful for comparing units that will operate consistently under one set of conditions (e.g. server room). The higher the EER, the more efficient the system. Learn More
12.0
HSPF
HSPF
HSPF (Heating Seasonal Performance Factor) is a measure of heating efficiency for heat pumps. It is useful for comparing energy efficiency of heat pumps. The higher the HSPF, the more efficient the system. Learn More
8
Maximum Air Flow
1434 CFM
Minimum Air Flow
968 CFM
Maximum Sound Level
Maximum Sound Level
Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB. Learn More
78 dB
Electrical Data
Voltage
208/230 Volts
Phase
1
Frequency
60 Hz
Minimum Circuit Ampacity
26.7 Amps
Recommended Breaker Size
40 Amps
Dimensions
Product Height
42 1/4 Inches
Product Width
47 Inches
Product Depth
51 Inches
Shipping Weight
472 Pounds
Certifications
ETL Listed
Yes
AHRI Certified
Yes
ISO Certified
Yes
Warranty Information
Parts Warranty
Parts Warranty
A warranty is a safeguard from defects in manufacturing and can vary in length and terms. Some manufacturers require registration for extended warranty benefits, be sure to check out features and the warranty document. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
5 Years
