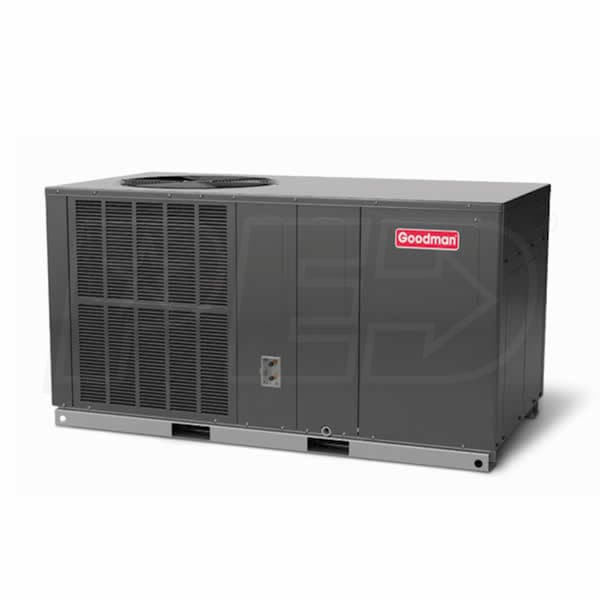

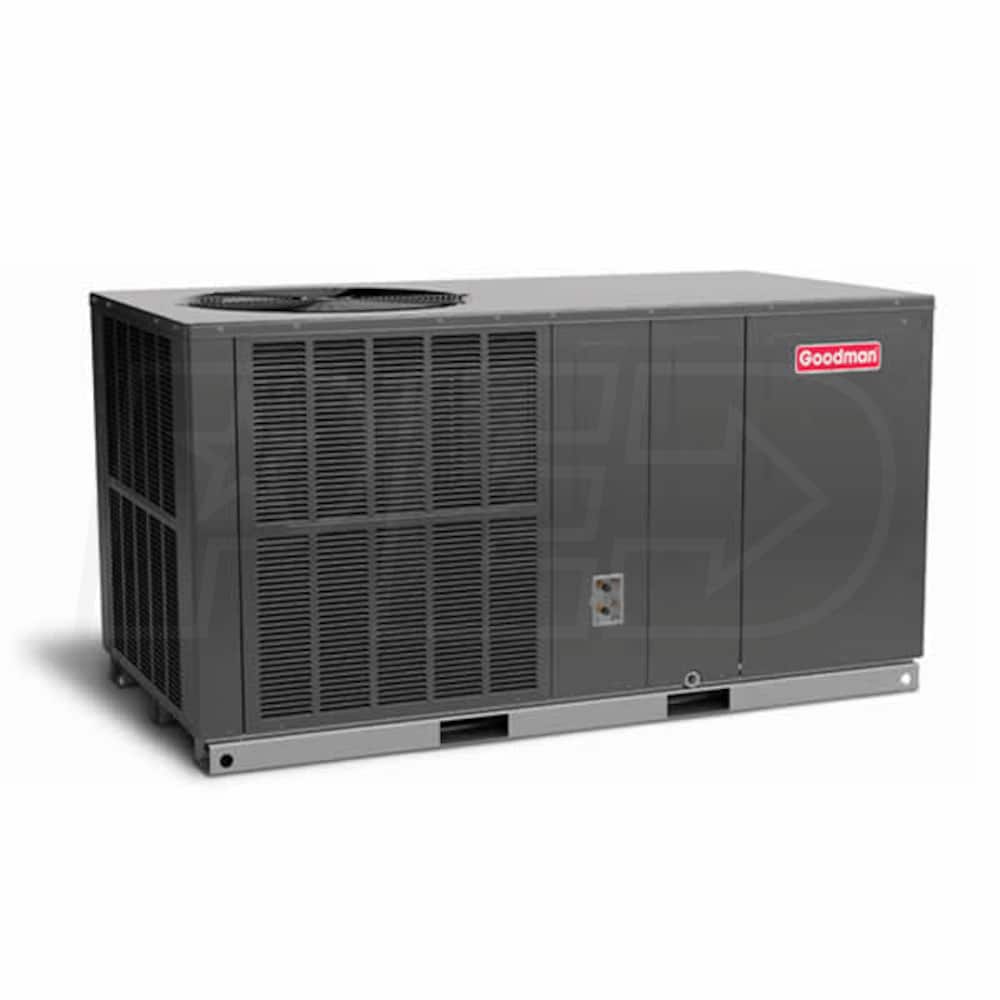

Goodman GPH16H - 4.0 Ton - Packaged Heat Pump System - 16.0 SEER - 8.0 HSPF - Horizontal - 208-230/1/6
Model:
GPH1648H41
+
Share This Product
Recommended Accessories
Expert Recommended Accessories
Selected by Ken, our Expert
Required Accessories
9
These accessories are required to properly setup/install this product.
Optional Accessories
10
Features
- High-Efficiency Coils
- The condenser coil of this packaged unit is designed with aluminum fins and rifled copper tubing to maximize surface area and efficiency. It also features a durable all-aluminum evaporator coil that optimizes heat transfer.
- Secure Design
- The cabinet of the GPH16H is built to last. A galvanized steel casing with a powder paint finish prevents fading and corrosion while louvered panels and a coil guard keep the most important components secure from damage.
- Quiet Comfort
- A sound insulated blower compartment and quiet horizontal discharge mean that the GPH16H provides comfort without disrupting your home.
- EEM Blower
- PSC blower motors are energy hogs. The EEM motor in the GPH16H reduces electrical consumption, ensuring efficient circulation.
- Optional Electric Heat
- With the GPH16H, you have the option to purchase an electric heat kit ranging from 5-20kw for field installation.
- Extended Warranty
- Goodman offers a 10-year limited parts warranty when you register your product online within 60 days of installation. An unregistered product has the standard 5-year warranty. See warranty sheet under the "Manuals" tab for more information.
Goodman's packaged units are the perfect all-in-one comfort solution for nearly any residential or light commercial application. The GPH16H combines a Goodman heat pump, evaporator coil, and blower to provide efficient heating and cooling IN a single unit. A rotary compressor means less maintenance, and Goodman's superior coil design helps to ensure efficient energy use. The GPH16H even features convenient access panels that make installation and maintenance a breeze.
California residents see
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
For more information go to: www.p65Warnings.ca.gov
Specifications
GPH1648H41
Overview
Product Category
Packaged HVAC Unit
UPC
663051525139
General Information
Type
Heat Pump Packaged Unit
Product Category
Packaged HVAC Unit
Operating Mode
Operating Mode
Some products are only capable of cooling, while others can either heat or cool a space. Some products heat via "heat pump" technology while others use electric heating elements. Learn More
Heating and Cooling
Refrigerant Type
R-410A
Blower Motor Type
Multi-Speed
Motor Type
EEM
Configuration
Configuration
Orientation describes the direction that air will flow through a piece of equipment. (e.g. air will flow horizontally through a "Horizontal" unit heater.) Most equipment will only function properly if installed in the proper orientation.
Horizontal
Installation Location
Outdoor
Compressor Stages
Compressor Stages
Stages are the distinct levels of output that an air conditioner or heat pump can deliver. Having more than one stage allows the equipment to better match the needs of the space and deliver better comfort and more efficiency.
Single Stage
DOE Regional Compliance
DOE Regional Compliance
In 2015, the US Department of Energy broke the country into three regions - North, Southeast, and Southwest - and set legal standards for energy efficiency within each region. Learn More
Nationwide
Installation Available
Yes
Performance
Capacity
Capacity
Tonnage, or tons of cooling, is a short hand method for describing the capacity of cooling equipment. One ton is equal to approximately 12 kBTU/hr.
4.0 Tons
Cooling Capacity
46000 BTU
Heating Capacity
44000 BTU
SEER
SEER
SEER (Seasonal Energy Efficiency Ratio) is a measurement of cooling efficiency over a typical cooling season. It is useful for comparing energy efficiency of cooling systems. The higher the SEER, the more energy efficient the system. Learn More
16.0
EER
EER
EER (Energy Efficiency Ratio) is a measurement of cooling efficiency under fixed conditions. It is useful for comparing units that will operate consistently under one set of conditions (e.g. server room). The higher the EER, the more efficient the system. Learn More
12.0
Maximum Air Flow
2002 CFM
Minimum Air Flow
1130 CFM
Maximum Sound Level
Maximum Sound Level
Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB. Learn More
80 dB
Electrical Data
Voltage
208/230 Volts
Phase
1
Frequency
60 Hz
Minimum Circuit Ampacity
35 Amps
Recommended Breaker Size
50 Amps
Dimensions
Product Height
35 Inches
Product Width
66 Inches
Product Depth
34 Inches
Product Weight
400 Pounds
Shipping Weight
410 Pounds
Certifications
ETL Listed
Yes
Energy Star Listed
Yes
AHRI Certified
Yes
ISO Certified
Yes
Warranty Information
Parts Warranty
Parts Warranty
A warranty is a safeguard from defects in manufacturing and can vary in length and terms. Some manufacturers require registration for extended warranty benefits, be sure to check out features and the warranty document. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
10 Limited Years
Compressor Warranty
Limited* 10 Years
