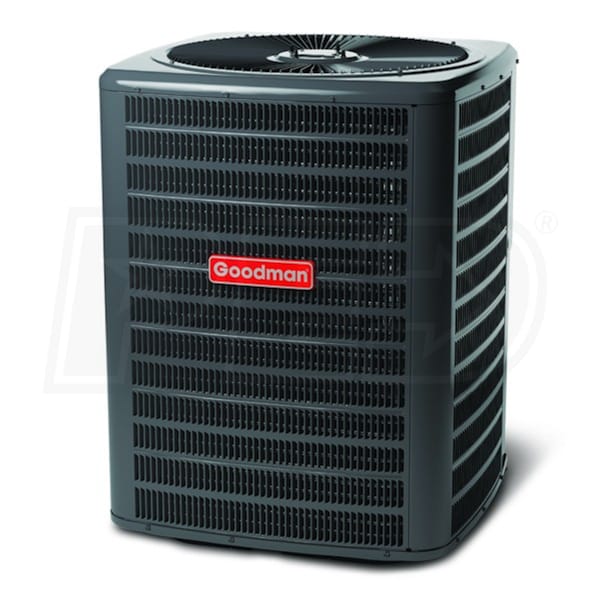

Goodman GSC13 - 5 Ton - Air Conditioner - 13 Nominal SEER - Single-Stage - R-22 Refrigerant

Model:

GSC130601

Write A Review
Product Discontinued
Sorry, this product is no longer available.
Try this product instead
Goodman GSC13 - 5 Ton - Air Conditioner - 13 Nominal SEER - Single-Stage - R-22 Refrigerant
Goodman GSC13 - 5 Ton - Air Conditioner - 13 Nominal SEER - Single-Stage - R-22 Refrigerant
Model: GSC130601
Product Discontinued
Accessories
Features
Specifications
Reviews
How-To Articles
Manuals

Recommended Accessories

eComfort expert image
Expert Recommended Accessories Selected by Ken, our Expert
Required Accessories 1
These accessories are required to properly setup/install this product.
$645.00
In-Stock
Optional Accessories 3
$37.26
$88.00

Features

    Goodman's air conditioners are all about reliable cooling at an affordable price. The GSC13 line of air conditioners is perfect for homes that are still using R22 refrigerant. With a nominal SEER rating of 13, a GSC13 represents a significant step-up in efficiency from older equipment. The savings don't stop at energy costs though, the GSC130601 is designed for quick installation and maintenance with an easily accessible control panel. Upgrade to a Goodman air conditioner today, and stay cool for years to come.

    Product Features

    Advanced Coil Design
    The condenser coil of this air conditioner is designed with aluminum fins and rifled copper tubing to maximize efficiency. The fins and rifling serve to increase surface area, allowing the heat transfer capabilities of the materials to shine.

    Secure Cabinet
    The cabinet of the GSC130601 is built to last. Galvanized steel construction, a durable powder paint finish, and a steel coil guard protect your equipment from wear and tear, increasing its longevity.

    Filter Drier
    A filter drier is installed in the liquid line of this air conditioner. It serves two important purposes: removing moisture and trapping impurities. This prevents corrosion, freezing, and blockages that can negatively impact the operation of the air conditioner.

    Quiet Comfort
    Goodman takes great pride in providing comfort that doesn't disrupt your home. The louvered top and three-bladed condenser fan of the GSC130601 were designed to reduce noise levels without compromising performance.

    Product Note

    Compliance with

    Product Note
    The recommended line set size for this unit will vary based on the length of line set you require for installation. Compatible line sets can be found under the "Recommended Accessories" tab.
California residents see
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
For more information go to: www.p65Warnings.ca.gov

Specifications

GSC130601
specs product image PID-26129
General Information
Type
Outdoor Condenser
Product Line
GSC13
Operating Mode Learn More
Operating Mode
Some products are only capable of cooling, while others can either heat or cool a space. Some products heat via "heat pump" technology while others use electric heating elements. Learn More
Cooling
Refrigerant Type
R-22
Installation Location
Outdoor
Compressor Stages Learn More
Compressor Stages
Stages are the distinct levels of output that an air conditioner or heat pump can deliver. Having more than one stage allows the equipment to better match the needs of the space and deliver better comfort and more efficiency.
Single Stage
DOE Regional Compliance Learn More
DOE Regional Compliance
In 2015, the US Department of Energy broke the country into three regions - North, Southeast, and Southwest - and set legal standards for energy efficiency within each region. Learn More
North
UPC
663051530942
Performance
Capacity Learn More
Capacity
Tonnage, or tons of cooling, is a short hand method for describing the capacity of cooling equipment. One ton is equal to approximately 12 kBTU/hr.
5.0 Tons
Nominal Cooling Capacity
60000 BTU
Maximum Sound Level Learn More
Maximum Sound Level
Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB. Learn More
77 dB
Nominal SEER Learn More
Nominal SEER
SEER (Seasonal Energy Efficiency Ratio) is a measurement of cooling efficiency over a typical cooling season. It is useful for comparing energy efficiency of cooling systems. The higher the SEER, the more energy efficient the system. Actual SEER may differ from Nominal SEER depending on the products used in a particular system.
13.0
Electrical Data
Voltage
208/230 Volts
Phase
1
Frequency
60 Hz
Minimum Circuit Ampacity
28.8 Amps
Recommended Breaker Size
50 Amps
Dimensions
Product Height
40 Inches
Product Width
29 Inches
Product Depth
29 Inches
Product Weight
174 Pounds
Shipping Weight
192 Pounds
Liquid Valve Connection Size
3/8 Inch
Suction Valve Connection Size
7/8 Inch
Certifications
ETL Listed
Yes
AHRI Certified
Yes
ISO Certified
Yes
Warranty Information
Parts Warranty Learn More
Parts Warranty
A warranty is a safeguard from defects in manufacturing and can vary in length and terms. Some manufacturers require registration for extended warranty benefits, be sure to check out features and the warranty document. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
5 Years
Compressor Warranty
5 Years
