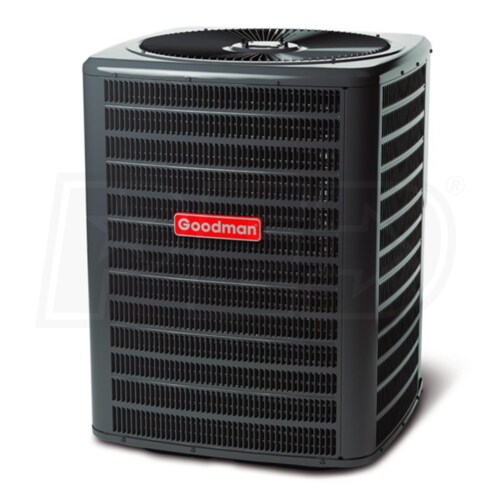

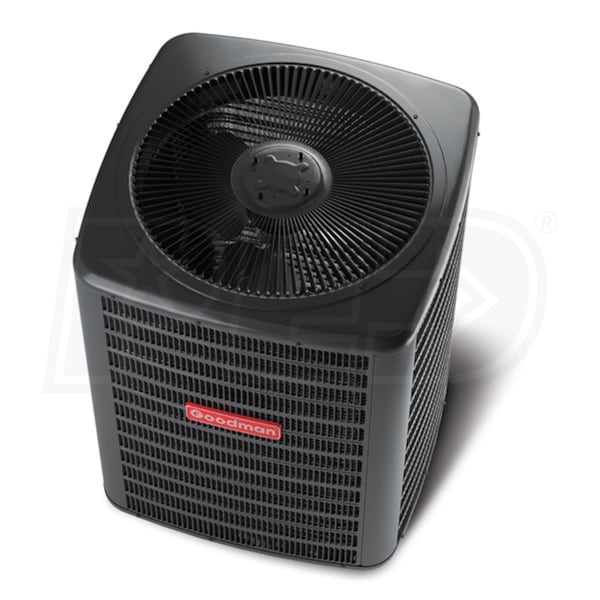

Goodman GSH13 - 2 Ton - Heat Pump - 13 Nominal SEER - Single-Stage - R-22 Refrigerant

Model:

GSH130241

Write A Review
Product Discontinued
Sorry, this product is no longer available.
Try this product instead
Goodman GSH13 - 2 Ton - Heat Pump - 13 Nominal SEER - Single-Stage - R-22 Refrigerant
Goodman GSH13 - 2 Ton - Heat Pump - 13 Nominal SEER - Single-Stage - R-22 Refrigerant
Model: GSH130241
Product Discontinued
Accessories
Features
Specifications
Reviews
How-To Articles
Manuals
Share

Recommended Accessories

eComfort expert image
Expert Recommended Accessories Selected by Ken, our Expert
Required Accessories 9
These accessories are required to properly setup/install this product.
Optional Accessories 10

Features

    Goodman established itself as the largest HVAC manufacturer in the US by producing high-quality, efficient equipment and providing it to homeowners at a great value. The GSH13 heat pump is perfect for homes that are still using R22 refrigerant. With a nominal SEER rating of 13 and a minimum HSPF of 7.7, the GSH13 represents a significant step-up in efficiency from older equipment. The savings don't stop at energy costs; the GSH130241 is designed for quick installation and maintenance with an easily accessible control panel and gauge ports. Become a heat pump household today, and enjoy efficient comfort from a single piece of equipment through all four seasons.

    Product Features

    Quiet Comfort
    Goodman takes great pride in providing comfort that doesn't disrupt your home. The louvered top and three-bladed condenser fan of the GSH130241 were designed to reduce noise levels without compromising performance.

    Filter Drier
    A biflow filter drier is installed in the liquid line of this heat pump. It serves two important purposes: removing moisture and trapping impurities. This prevents corrosion, freezing, and blockages that can negatively impact the operation of the heat pump.

    Secure Cabinet
    The cabinet of the GSH130241 is built to last. Galvanized steel construction, a durable powder paint finish, rust-resistant screws, and a steel coil guard protect your equipment from wear and tear, increasing its longevity.

    Defrost Capability
    The GSH13 features defrost control that prevents damaging freezing conditions in the coil. If the coil is below 32 degrees Fahrenheit after a user-set amount of run-time, the defrost will activate and run until the coil has reached a safe temperature.

    Compressor Protection
    This heat pump has liquid refrigerant return protection, which prevents refrigerant from flooding and damaging the compressor during operation.

    Product Note

    Compliance with US Federal Regional Efficiency Standards is dependent on the rated efficiency of your entire system, not the nominal efficiencies of individual components. If you are unsure if your system will be compliant, please confirm before purchasing by calling us at 866-554-4328 or email us at sales@eComfort.com.

California residents see
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
For more information go to: www.p65Warnings.ca.gov

Specifications

GSH130241
specs product image PID-26156
General Information
Type
Heat Pump
Product Line
GSH13
Operating Mode Learn More
Operating Mode
Some products are only capable of cooling, while others can either heat or cool a space. Some products heat via "heat pump" technology while others use electric heating elements. Learn More
Cooling & Heating
Refrigerant Type
R-22
Installation Location
Outdoor
Compressor Stages Learn More
Compressor Stages
Stages are the distinct levels of output that an air conditioner or heat pump can deliver. Having more than one stage allows the equipment to better match the needs of the space and deliver better comfort and more efficiency.
Single
UPC
663051497801
Performance
Capacity Learn More
Capacity
Tonnage, or tons of cooling, is a short hand method for describing the capacity of cooling equipment. One ton is equal to approximately 12 kBTU/hr.
2.0 Tons
Nominal Cooling Capacity
24000 BTU
Heating BTU
24000
Maximum Sound Level Learn More
Maximum Sound Level
Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB. Learn More
71 dB
Nominal SEER Learn More
Nominal SEER
SEER (Seasonal Energy Efficiency Ratio) is a measurement of cooling efficiency over a typical cooling season. It is useful for comparing energy efficiency of cooling systems. The higher the SEER, the more energy efficient the system. Actual SEER may differ from Nominal SEER depending on the products used in a particular system.
13
Electrical Data
Voltage
208-230 Volts
Phase
1
Frequency
60 Hz
Minimum Circuit Ampacity
14.2 Amps
Recommended Breaker Size
25 Amps
Dimensions
Product Height
32 1/4 Inches
Product Width
26 Inches
Product Depth
26 Inches
Product Weight
133 Pounds
Shipping Weight
150 Pounds
Liquid Valve Connection Size
3/8 Inch
Suction Valve Connection Size
3/4 Inch
Certifications
ETL Listed
Yes
AHRI Certified
Yes
ISO Certified
Yes
Warranty Information
Parts Warranty Learn More
Parts Warranty
A warranty is a safeguard from defects in manufacturing and can vary in length and terms. Some manufacturers require registration for extended warranty benefits, be sure to check out features and the warranty document. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
5 Years
