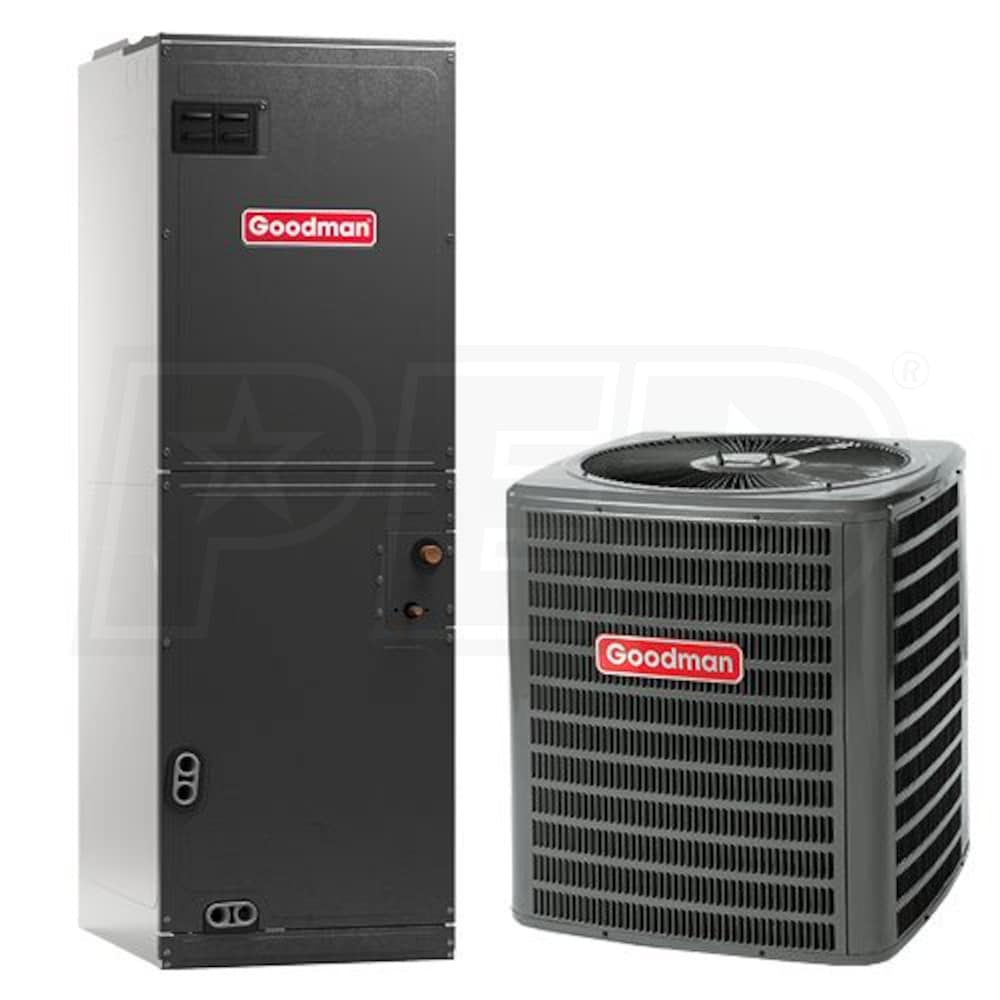

Goodman - 1.5 Ton Cooling - Air Conditioner + Air Handler System - 13.0 SEER

Model:

GSX13018 ARUF25B14

Write A Review
Product Discontinued
Sorry, this product is no longer available.
Continue Shopping With These Categories
Goodman - 1.5 Ton Cooling - Air Conditioner + Air Handler System - 13.0 SEER
Goodman - 1.5 Ton Cooling - Air Conditioner + Air Handler System - 13.0 SEER
Model: GSX13018 ARUF25B14
Product Discontinued
Accessories
Features
Specifications
Reviews
How-To Articles
Manuals
Share

Recommended Accessories

eComfort expert image
Expert Recommended Accessories Selected by Ken, our Expert
Required Accessories 9
These accessories are required to properly setup/install this product.
Optional Accessories 10

Features

    The Goodman brand is one of the biggest names in home cooling and energy-efficient home comfort. That's because Goodman air conditioner condensers live up to its name in a big way, with time-tested energy-efficient technology, highly-durable materials and spot-on manufacturing. So, no matter where you live or whether your home is small or large, Goodman probably has a solution to help keep your home comfortable.

    PLEASE NOTE

    The US Department of Energy (DOE) regulates minimum efficiency standards for central air conditioners and heat pumps based on geographic regions for the United States. We are required to abide by these regulations when selling these types of products, and take this responsibility seriously. The standards depend on the rated efficiency of the entire system, not the nominal efficiencies of individual components. If you live in any of the following states - AL, AR, DC, DE, FL, GA, KY, LA, MD, MS, NC, OK, SC, TN, TX or VA and are planning to have the product shipped to those states it is strongly recommend you call us or email us before you place your order so we can offer an alternate product. We unfortunately will not ship equipment that falls under the minimum DOE requirements to those states. (Learn More)

    The Goodman GSX130181 Air Conditioner Condenser with a SEER rating up to 14 SEER will keep you as cool as a cucumber

    Known as the best air conditioner the Goodman GSX130181 air conditioner condenser is the kind you don't have to think or worry about. It comes on the moment you need it and then runs quietly and efficiently all year long as needed. The Goodman GSX13 GSX130181 air conditioner condenser is loaded with features designed to provide outstanding performance for years to come. The Goodman company use's advanced techniques and materials so you know the cozy, even temperature you feel in every corner of your home is an energy-efficient trend that's designed to stay for many years.

    Goodman brand air conditioners such as the GSX130181 take pride in its company heritage.

    Goodman brand air conditioners offer a complete line of HVAC products that are priced to help add comfort to your budget. Goodman air conditioners were designed to add a smile every time you open your utility bill. The Goodman GSX130181 air conditioner condensers ultimately adhere to some old-fashioned values, too. Goodman believes in the integrity of the American worker. That's why Goodman brand cooling systems are designed, engineered and assembled in the United States.

    When you think of the Goodman GSX130181 air conditioner condenser, consider it as the art of precision

    Energy-Efficient Scroll Compressor- Inside of the Goodman GSX130181 air conditioner condensers you will find compressors designed to provide years of reliable cooling comfort, it provides 14 SEER cooling performance for lower energy bills compared to lower SEER units.

    Single-Speed Condenser Fan Motor - With advanced fan design, it provides dependable, quiet airflow across the condensing coil. The Goodman GSX130181 air conditioner condenser simply work the way they're supposed to, making each one a thing of beauty.

    Efficient Cooling Capacity - Five millimeter, refrigeration-grade premium copper tubing and aluminum fin condenser coil configuration deliver outstanding heat transfer properties with R-410A, chlorine-free, refrigerant.

    Heavy-Gauge, Galvanized Steel Enclosure Cabinet - A louvered cabinet protects the coil, while its appliance-quality, post-paint, baked enamel finish protects your system from outdoor elements.

    Factory-Installed In-Line Filter Drier - Protects the refrigerant system from dirt and moisture for longer service life compared to units without filter driers.

    Overview for Goodman ARUF25B14 Air Conditioner Air Handler

    The Goodman ARUF25B14 Air Conditioner Air Handler features a check flowrater expansion device. The Goodman ARUF25B14 Air Conditioner Air Handler is housed in a rust-resistant, fully insulated steel cabinet with painted front panels. The Goodman Air Conditioning and Heating company have become one of the largest manufacturers of residential and light commercial air conditioning, heating, and indoor air quality products and systems by focusing on just one thing, building the most reliable and refreshingly affordable indoor comfort products in the market.

    The Goodman ARUF ARUF25B14 Multi speed, Multi position Air Handler Electric Furnace with PSC Motor

    The Goodman brand is one of the biggest names in home cooling, heating and energy-efficient home comfort. That's because Goodman air conditioner condensers live up to its name in a big way, with time-tested energy-efficient technology, highly-durable materials and spot-on manufacturing. So, no matter where you live or whether your home is small or large, Goodman probably has a solution to help keep your home comfortable.

    A history of the Goodman ARUF ARUF25B14 Multi speed, Multi position Air Handler Electric Furnace with PSC Motor

    Known as the best modular blower around, the Goodman ARUF ARUF25B14 Multi speed, Multi position Air Handler Electric Furnace with PSC Motor is the kind you don't have to think or worry about. It comes on the moment you need it and then runs quietly and efficiently all year long as needed. The Goodman ARUF ARUF25B14 Multi speed, Multi position Air Handler Electric Furnace with PSC Motor is loaded with features designed to provide outstanding performance for years to come. The Goodman company use's advanced techniques and materials so you know the cozy, even temperature you feel in every corner of your home is an energy-efficient trend that's designed to stay for many years.

    Goodman brand Air handlers - Electric Furnaces such as the ARUF25B14 take pride in its company heritage.

    Goodman brand air conditioners and heaters offer a complete line of HVAC products that are priced to help add comfort to your budget. Goodman modular blowers were designed to add a smile every time you open your utility bill. The Goodman ARUF ARUF25B14 Multi speed, Multi position Air Handler Electric Furnace ultimately adhere to some old-fashioned values, too. Goodman believes in the integrity of the American worker. That's why Goodman brand heating and cooling systems are designed, engineered and assembled in the United States.

    Goodman ARUF ARUF25B14 Multi speed, Multi position Air Handler Electric Furnace with PSC Motor are considered as the art of precision

    All-Aluminum Evaporator Coil - Designed for efficient heat transfer and durable performance and resists potential corrosion.

    Field-Installed Heat Strips - From 3-20 kW* for emergency heating, if ever needed. (*Only select Goodman Modular blowers can use the Goodman 15-20kW Heat Strips)

    Smartframe Substructure - Intelligent structural design both improves the Goodman brand air handler's lateral strength and affords a sturdy mounting framework for internal components. It also secures the foil-faced insulation covering the entire blower casing that can reduce operating noise. All of which helps to increase durability and reliability of unit.

  • The manufacturer model number(s): Goodman GSX130181 ARUF25B14
  • AHRI Reference Number: 7984175 * *May change based on the Manufacturer revision
  • Product Includes
    • (1) Goodman GSX13 - 1.5 Ton - Air Conditioner - 13 Nominal SEER - Single-Stage - R-410a Refrigerant (GSX130181)
    • (1) Goodman ARUF - 2 Ton - Air Handler - Multi-Position - PSC Motor (ARUF25B14)
California residents see
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
For more information go to: www.p65Warnings.ca.gov

Specifications

Product Includes
  • (1) Goodman GSX13 - 1.5 Ton - Air Conditioner - 13 Nominal SEER - Single-Stage - R-410a Refrigerant (GSX130181)
  • (1) Goodman ARUF - 2 Ton - Air Handler - Multi-Position - PSC Motor (ARUF25B14)
GSX13018 ARUF25B14
specs product image PID-87120
Overview
Product Category
Air Conditioner & Air Handler Package
General Information
Product Category
Air Conditioner & Air Handler Package
Operating Mode Learn More
Operating Mode
Some products are only capable of cooling, while others can either heat or cool a space. Some products heat via "heat pump" technology while others use electric heating elements. Learn More
Cooling
Configuration Learn More
Configuration
Orientation describes the direction that air will flow through a piece of equipment. (e.g. air will flow horizontally through a "Horizontal" unit heater.) Most equipment will only function properly if installed in the proper orientation.
Multi-Position
DOE Regional Compliance Learn More
DOE Regional Compliance
In 2015, the US Department of Energy broke the country into three regions - North, Southeast, and Southwest - and set legal standards for energy efficiency within each region. Learn More
North
Installation Available
Yes
Performance
Capacity Learn More
Capacity
Tonnage, or tons of cooling, is a short hand method for describing the capacity of cooling equipment. One ton is equal to approximately 12 kBTU/hr.
1.5 Tons
Cooling Capacity
18000 BTU
Nominal Cooling Capacity
18000 BTU
SEER Learn More
SEER
SEER (Seasonal Energy Efficiency Ratio) is a measurement of cooling efficiency over a typical cooling season. It is useful for comparing energy efficiency of cooling systems. The higher the SEER, the more energy efficient the system. Learn More
13.0
EER Learn More
EER
EER (Energy Efficiency Ratio) is a measurement of cooling efficiency under fixed conditions. It is useful for comparing units that will operate consistently under one set of conditions (e.g. server room). The higher the EER, the more efficient the system. Learn More
11.0
Maximum Air Flow
570 CFM
Dimensions
Cabinet Width
17 1/2 Inches
Product Weight
202 Pounds
Shipping Weight
217 Pounds
Certifications
ETL Listed
Yes
AHRI Certified
Yes
AHRI Reference Number
201298411
GSX130181
General Information
Type
Condenser
Product Line
GSX13
Product Category
Air Conditioning Condensers
Operating Mode Learn More
Operating Mode
Some products are only capable of cooling, while others can either heat or cool a space. Some products heat via "heat pump" technology while others use electric heating elements. Learn More
Cooling
Refrigerant Type
R-410a
Installation Location
Outdoor
Compressor Stages Learn More
Compressor Stages
Stages are the distinct levels of output that an air conditioner or heat pump can deliver. Having more than one stage allows the equipment to better match the needs of the space and deliver better comfort and more efficiency.
Single Stage
DOE Regional Compliance Learn More
DOE Regional Compliance
In 2015, the US Department of Energy broke the country into three regions - North, Southeast, and Southwest - and set legal standards for energy efficiency within each region. Learn More
North
Installation Available
Yes
Performance
Capacity Learn More
Capacity
Tonnage, or tons of cooling, is a short hand method for describing the capacity of cooling equipment. One ton is equal to approximately 12 kBTU/hr.
1.5 Tons
Cooling BTU
18000
Cooling Capacity
18000 BTU
SEER Learn More
SEER
SEER (Seasonal Energy Efficiency Ratio) is a measurement of cooling efficiency over a typical cooling season. It is useful for comparing energy efficiency of cooling systems. The higher the SEER, the more energy efficient the system. Learn More
13.0
EER Learn More
EER
EER (Energy Efficiency Ratio) is a measurement of cooling efficiency under fixed conditions. It is useful for comparing units that will operate consistently under one set of conditions (e.g. server room). The higher the EER, the more efficient the system. Learn More
11.0
Maximum Sound Level Learn More
Maximum Sound Level
Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB. Learn More
75 dB
Electrical Data
Voltage
208/230 Volts
Phase
1
Frequency
60 Hz
Minimum Circuit Ampacity
9 Amps
Recommended Breaker Size
15 Amps
Dimensions
Suction Connection Size
3/4 Inch
Liquid Connection Size
3/8 Inch
Product Height
25 3/4 Inches
Product Width
23 Inches
Product Depth
23 Inches
Product Weight
102 Pounds
Shipping Weight
117 Pounds
Certifications
ETL Listed
Yes
AHRI Certified
Yes
ISO Certified
Yes
Warranty Information
Parts Warranty Learn More
Parts Warranty
A warranty is a safeguard from defects in manufacturing and can vary in length and terms. Some manufacturers require registration for extended warranty benefits, be sure to check out features and the warranty document. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
Limited* 10 Years Years
Overview
Product Category
Air Conditioning Condensers
ARUF25B14
General Information
Type
Air Handler
Product Line
ARUF
Product Category
Air Handler
Refrigerant Type
R-410A
Blower Motor Type
Multi-Speed
Motor Type
PSC
Mount Type
Multi-Position
Installation Location
Indoor
Electric Heat
Available
Installation Available
Yes
TXV Installed
No
Performance
Capacity Learn More
Capacity
Tonnage, or tons of cooling, is a short hand method for describing the capacity of cooling equipment. One ton is equal to approximately 12 kBTU/hr.
2.0 Tons
Cooling BTU
24000
Maximum Air Flow
1255 CFM
Minimum Air Flow
650 CFM
Electrical Data
Voltage
208/230 Volts
Phase
1
Frequency
60 Hz
Minimum Circuit Ampacity
2 Amps
Recommended Breaker Size
15 Amps
Dimensions
Suction Connection Size
3/4 Inch
Liquid Connection Size
3/8 Inch
Cabinet Width
17 1/2 Inches
Product Height
45 Inches
Product Width
17 1/2 Inches
Product Depth
21 Inches
Product Weight
100 Pounds
Shipping Weight
113 Pounds
Certifications
ETL Listed
Yes
AHRI Certified
Yes
Warranty Information
Warranty Learn More
Warranty
A warranty is a safeguard from defects in manufacturing and can vary in length and terms. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
5 Years
Parts Warranty Learn More
Parts Warranty
A warranty is a safeguard from defects in manufacturing and can vary in length and terms. Some manufacturers require registration for extended warranty benefits, be sure to check out features and the warranty document. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
10 Limited Years
Overview
Product Category
Air Handler
