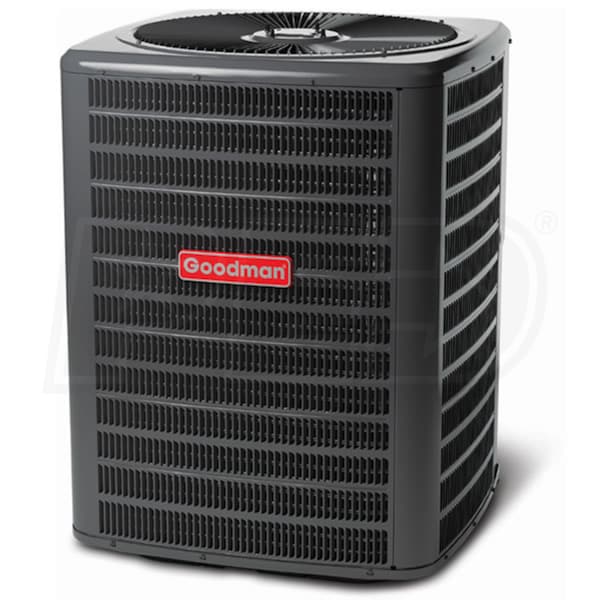

Goodman GSZ16 - 4 Ton - Heat Pump - 16 Nominal SEER - Single-Stage - R-410A Refrigerant

Model:

GSZ160481

Write A Review
Product Discontinued
Sorry, this product is no longer available.
Try this product instead
Goodman GSZ16 - 4 Ton - Heat Pump - 16 Nominal SEER - Single-Stage - R-410A Refrigerant
Goodman GSZ16 - 4 Ton - Heat Pump - 16 Nominal SEER - Single-Stage - R-410A Refrigerant
Model: GSZ160481
Product Discontinued
Accessories
Features
Specifications
Reviews
How-To Articles
Manuals
Share

Recommended Accessories

eComfort expert image
Expert Recommended Accessories Selected by Ken, our Expert
Required Accessories 9
These accessories are required to properly setup/install this product.
Optional Accessories 10

Features

    Goodman established itself as the largest HVAC manufacturer in the US by producing high-quality, efficient equipment and providing it to homeowners at a great value. The GSZ16 heat pump has a nominal SEER rating of 16 and a HSPF rating of up to 9.0 to ensure efficient comfort regardless of your application. It includes advanced components that protect the coil and compressor to ensure reliable operation and peace of mind.
  • SmartShift
  • Goodman's SmartShift technology, combined with ambient and coil temperature sensors, gives this unit a quiet and effective defrost system. SmartShift also helps to prevent short-cycling, increasing the efficiency of defrost operation.
  • Filter Drier
  • A biflow filter drier is installed in the liquid line of this heat pump. It serves two important purposes: removing moisture and trapping impurities. This prevents freezing and blockages that can negatively impact the operation of the heat pump.
  • Advanced Coil Design
  • The condenser coil of this heat pump is designed with smaller aluminum fins and rifled copper tubing to maximize efficiency. The fins and rifling serve to increase surface area, allowing the heat transfer capabilities of the materials to shine.
  • High-Efficiency Compressor
  • This unit utilizes a high-efficiency scroll compressor to provide refrigerant flow. Scroll compressors are renowned for operating more smoothly and reliably than traditional compressors.
  • Compressor Protection
  • Goodman installed two layers of compressor protection in the GSZ16. A suction accumulator that collects excess liquid refrigerant and a crankcase heater to help maintain a compressor temperature that discourages oil migration.
  • Quiet Comfort
  • The louvered top and three-bladed condenser fan of the GSZ16 was designed to reduce noise levels without compromising performance. This model also has a high-capacity discharge muffler to curtail vibration noise.
  • Secure Cabinet
  • The cabinet of the GSZ16 is built to last. Galvanized steel construction, a durable powder paint finish, and a steel coil guard protect your equipment from wear and tear, increasing its longevity.
  • ECM Motor
  • The GSZ16 has an ECM motor that is cost and energy efficient and can reduce operating costs. They also are not prone to overheating.
  • Extended Warranty
  • Goodman offers a 10-year limited parts warranty when you register your product online within 60 days of installation. An unregistered product has the standard 5-year warranty. See warranty sheet under the "Manuals" tab for more information.
  • Product Note
    The recommended line set size for this unit will vary based on the length of line set you require for installation. Compatible line sets can be found under the "Recommended Accessories" tab.
California residents see
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
For more information go to: www.p65Warnings.ca.gov

Specifications

GSZ160481
specs product image PID-72293
Overview
Product Category
Heat Pump
UPC
663051551398
General Information
Type
Heat Pump Condenser
Product Line
GSZ16
Product Category
Heat Pump
Operating Mode Learn More
Operating Mode
Some products are only capable of cooling, while others can either heat or cool a space. Some products heat via "heat pump" technology while others use electric heating elements. Learn More
Heating and Cooling
Refrigerant Type
R-410A
Installation Location
Outdoor
Compressor Stages Learn More
Compressor Stages
Stages are the distinct levels of output that an air conditioner or heat pump can deliver. Having more than one stage allows the equipment to better match the needs of the space and deliver better comfort and more efficiency.
Single Stage
DOE Regional Compliance Learn More
DOE Regional Compliance
In 2015, the US Department of Energy broke the country into three regions - North, Southeast, and Southwest - and set legal standards for energy efficiency within each region. Learn More
Nationwide
Installation Available
Yes
Performance
Capacity Learn More
Capacity
Tonnage, or tons of cooling, is a short hand method for describing the capacity of cooling equipment. One ton is equal to approximately 12 kBTU/hr.
4.0 Tons
Cooling BTU
48000
Cooling Capacity
48000 BTU
SEER Learn More
SEER
SEER (Seasonal Energy Efficiency Ratio) is a measurement of cooling efficiency over a typical cooling season. It is useful for comparing energy efficiency of cooling systems. The higher the SEER, the more energy efficient the system. Learn More
16.0
Maximum Sound Level Learn More
Maximum Sound Level
Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB. Learn More
74 dB
Electrical Data
Voltage
208/230 Volts
Phase
1
Frequency
60 Hz
Minimum Circuit Ampacity
26 Amps
Recommended Breaker Size
45 Amps
Dimensions
Suction Connection Size
1 1/8 Inches
Liquid Connection Size
3/8 Inch
Product Height
34 3/8 Inches
Product Width
35 1/2 Inches
Product Depth
35 1/2 Inches
Product Weight
250 Pounds
Shipping Weight
270 Pounds
Certifications
ETL Listed
Yes
Energy Star Listed
Yes
AHRI Certified
Yes
ISO Certified
Yes
Warranty Information
Parts Warranty Learn More
Parts Warranty
A warranty is a safeguard from defects in manufacturing and can vary in length and terms. Some manufacturers require registration for extended warranty benefits, be sure to check out features and the warranty document. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
Limited* 10 Years Years
