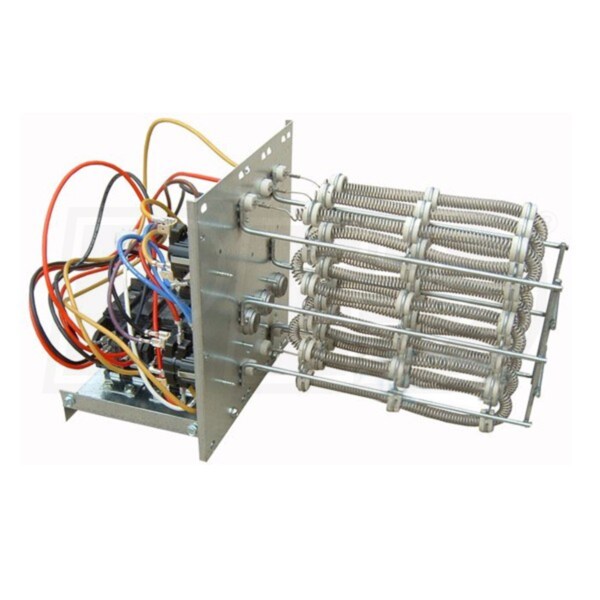

Goodman HKP - 19 kW - Electric Heat Kit - 208-240/60/1 - With Circuit Breaker
Model:
HKP-20C
+
Share This Product
Features
- Integrated Circuit Breaker
- The HKP-20C includes a factory-installed circuit breaker to protect your home's electrical system from damaging short circuits and overloads.
- Multi-Stage Operation
- Goodman electric heat kits are compatible with multi-stage heating controls. This makes it easy to ensure your home receives as much, or as little, heat as it needs.
- Durable Design
- Goodman uses rust-resistant nickel chromium for the 's heat elements, improving the unit's longevity and performance.
- Product Compatible With
- Goodman GPH14M Packaged Heat Pumps- 42,000+ BTU
- Goodman GPH16H Packaged Heat Pumps- 42,000+ BTU
- Goodman GPG14M Packaged Gas/Electric Central Air System - 42,000+ BTU
- Goodman GPC14M Packaged Heat Pumps- 42,000+ BTU
- Goodman GPC14M Packaged Heat Pumps- 42,000+ BTU
- Goodman GPC15H Packaged Heat Pumps- 42,000+ BTU
- Goodman GPD14M Packaged Heat Pumps- 42,000+ BTU
- Goodman GPG16M Packaged Heat Pumps- 42,000+ BTU
- Goodman GPH16M Packaged Heat Pumps- 42,000+ BTU
Adding electric heat to your Goodman system is easy with an electric heat kit. The HKP electric heat kit is perfect for homeowners looking to supplement their home's heating capabilities without making a major change to their system. The HKP-20C is a 19 kW heater capable of supplying 64,831 BTU of heating per hour. It is designed specifically to fit inside Goodman's packaged heat pumps and air conditioners, and features a plug-in wiring harness to keep installation quick and simple. If you're looking for a little extra heat from your packaged central system, Goodman's HKP-20C electric heat kit will keep you comfortable.
Product Note
Goodman may substitute this product with Tutco model 81-0304-05.
California residents see
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
For more information go to: www.p65Warnings.ca.gov
Specifications
HKP-20C
Overview
Product Category
Forced Air Accessories
UPC
663051565197
General Information
Type
Heat Strip
Product Line
HKP
Product Category
Forced Air Accessories
Performance
Electric Heat Capacity
19.0 kW
Electrical Data
Voltage
208/240 Volts
Phase
1
Frequency
60 Hz
Current Draw
83.3 Amps
Dimensions
Product Weight
9 Pounds
Shipping Width
8 1/2 Inches
Shipping Height
9 29/48 Inches
Shipping Length
16 1/2 Inches
Shipping Weight
14 Pounds
Certifications
ETL Listed
Yes
ISO Certified
Yes
Warranty Information
Parts Warranty
Parts Warranty
A warranty is a safeguard from defects in manufacturing and can vary in length and terms. Some manufacturers require registration for extended warranty benefits, be sure to check out features and the warranty document. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
5 Limited Years
Reviews
(10)
Goodman HKP-20C Reviews & Ratings
Customer Rating
4.80
(10 Ratings)
5
(8)
(8)4(2)
(2)3(0)
(0)2(0)
(0)1(0)
(0)
Goodman HKP - 19 kW - Electric Heat Kit
By Tony A
Missouri
Purchased 12/10/2023 |
Review Posted 01/18/2024
It was exactly what I needed.
Tony A Recommends This
Was this review helpful?
Rating Breakdown
5/5
5/5
5/5
5/5
Pros:
Easy To Use, Price, I39d Buy It Again
Cons:
None
Great product at a great price.
By Iverson R.
Pipe Creek, Texas
Purchased 02/12/2020 |
Review Posted 03/04/2020
This product was a direct replacement part. No issues whatsoever worked excellent. Excellent customer service. I will definitely order from these guys again.
Iverson R. Recommends This
Was this review helpful?
Rating Breakdown
5/5
5/5
5/5
5/5
Pros:
Price, High Quality, Id Buy It Again, Easy install
Easier than expected
By Paul C.
Muncie, Indiana
Purchased 02/18/2018 |
Review Posted 02/10/2020
Easy to install--15 minutes and done. Would be nice and a little more economical if it was available without the circuit breaker.
Paul C. Recommends This
Was this review helpful?
Rating Breakdown
5/5
5/5
5/5
4/5
easy to install
By Thomas S.
Glennville, Georgia
Purchased 07/05/2019 |
Review Posted 08/07/2019
easy to install and works great
Thomas S. Recommends This
Was this review helpful?
Rating Breakdown
5/5
5/5
5/5
5/5
Fairly simple to install.
By Kyla P
CUT BANK, Montana
Purchased 02/19/2019 |
Review Posted 03/14/2019
This is the replacement/updated version of the older HKR-20C that was in my 2007 Goodman furnace. There were a few changes so I had an electrician install this and within an hour I had my furnace running again. I looked at several online places and this was the least expensive as well as the quickest shipper. I am glad I ordered from eComfort.com!!!!
Kyla P Recommends This
Was this review helpful?
Rating Breakdown
4/5
4/5
4/5
5/5
Product is great ....World class customer service.
By Troy W
Decatur Alabama, Alabama
Purchased 01/14/2019 |
Review Posted 02/05/2019
Very good product
Troy W Recommends This
Was this review helpful?
Rating Breakdown
5/5
5/5
5/5
5/5
This 15kw Heat strip works
By Steven S
Tennessee
Purchased 12/06/2018 |
Review Posted 01/18/2019
This heat strip kit is the correct addition to my 4 ton Goodman heat pump package unit to heat correctly in the winter. It did require a separate 60amp service installed next to the current electrical service. 15kw heat strips draw too much electricity to hook into the existing service that runs the heat pump. You will need a 60 amp breaker, a 60 amp disconnect box, Romex outdoor 6-2 or 6-3 gauge wire (depending on your home and local code.) I needed 75 feet but bought 125 feet roll. Also need an extra whip without the wire so you can run the wire from the disconnect to the unit and to the included two breakers. You can run a jumper from the 45amp includes breaker to the 25 amp included breaker.
Don’t forget to run the correct Wires to the thermostat. I had to go back and hook up the W2 wire to complete the install so the thermostat would trigger the heat strips. Having a compatible thermostat goes without saying.
Basics are that you should expect to spend an extra $250 in parts if you are handy and extra to pay a technician to install. I’m a certified HVAC tech so I did the install myself.
Don’t forget to run the correct Wires to the thermostat. I had to go back and hook up the W2 wire to complete the install so the thermostat would trigger the heat strips. Having a compatible thermostat goes without saying.
Basics are that you should expect to spend an extra $250 in parts if you are handy and extra to pay a technician to install. I’m a certified HVAC tech so I did the install myself.
Steven S Recommends This
Was this review helpful?
Rating Breakdown
5/5
5/5
5/5
5/5
IT's a heat strip. Works as expected
By John N.
Raleigh, North Carolina
Purchased 01/21/2018 |
Review Posted 02/14/2018
My only complaint is the burning smell for the first few weeks of use. I have only had it installed for about a month but it seems to be better now. Every time the defrost cycle would come on and the heat strip would kick in there was a burning smell.
John N. Recommends This
Was this review helpful?
Expert Response
Hi John,
Thanks for your review! The burning smell you are experiencing is mostly likely due to the heating element burning off the dust in your system. This typically goes away after several uses.
We appreciate your feedback and we hope you are enjoying the heat kit. Please don't hesitate to contact us if the problem persists.
Thanks for your review! The burning smell you are experiencing is mostly likely due to the heating element burning off the dust in your system. This typically goes away after several uses.
We appreciate your feedback and we hope you are enjoying the heat kit. Please don't hesitate to contact us if the problem persists.
Ken D.
eComfort Product Expert
Rating Breakdown
4/5
3/5
4/5
5/5
A good replacement
By Laurence H.
Vero Beach, Florida
Purchased 01/18/2018 |
Review Posted 02/08/2018
I ordered this to replace the existing, worn out piece in my Goodman package unit. Installation took 10 minutes, wiring was straightforward. The instructions are totally useless. The device works great, like a new unit should.
The breaker that is supplied is not up to the quality of the original and it was difficult to squeeze the two feeder lines into the single contact.
The breaker that is supplied is not up to the quality of the original and it was difficult to squeeze the two feeder lines into the single contact.
Laurence H. Recommends This
Was this review helpful?
Rating Breakdown
5/5
4/5
4/5
5/5
Heat and A/C unit purchased
By Orlando G.
Tampa, Florida
Purchased 12/23/2017 |
Review Posted 02/07/2018
Bought matching A/C unit and needed heat strip everything worked out as planned. Great customer service.
Orlando G. Recommends This
Was this review helpful?
Rating Breakdown
5/5
5/5
5/5
5/5
