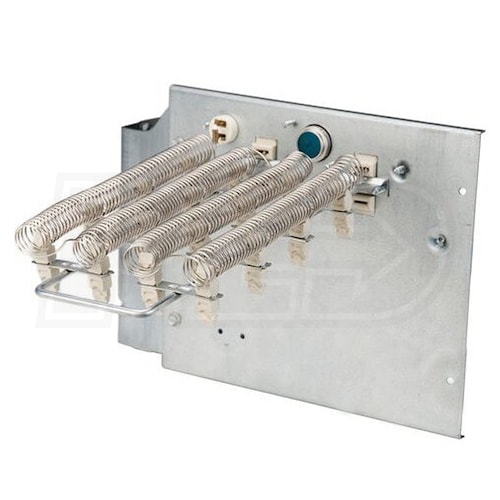

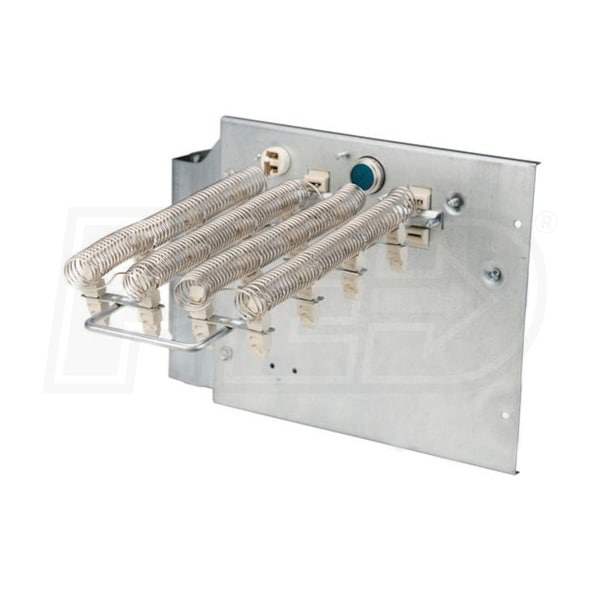

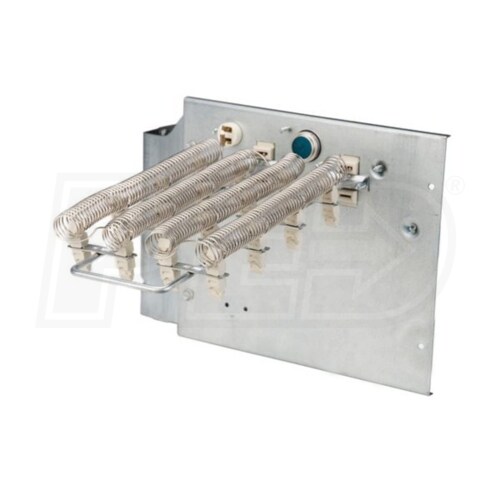

Goodman HKS - 4.5 kW - Electric Heat Kit - 208-240/60/1 - With Circuit Breaker
Model:
HKSC05XC
+
Share This Product
Features

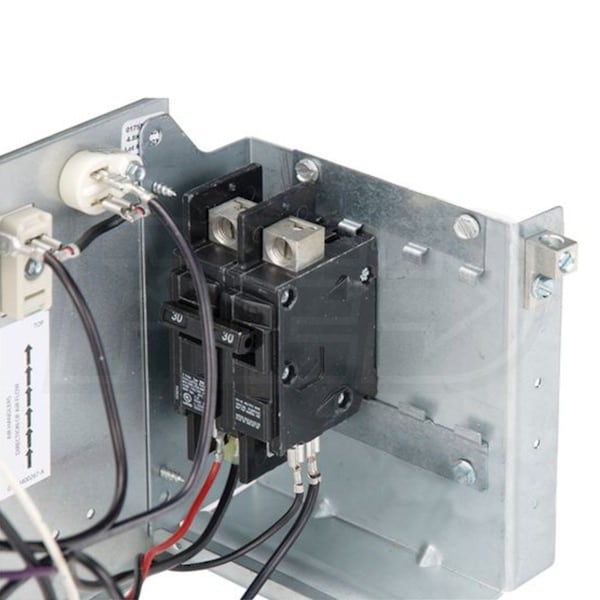

- Integrated Circuit Breaker
- The HKSC05XC includes a factory-installed circuit breaker to protect your home's electrical system from damaging short circuits and overloads.
- Multi-Stage Operation
- Goodman electric heat kits are compatible with multi-stage heating controls. This makes it easy to ensure your home receives as much, or as little, heat as it needs.
- Durable Design
- Goodman uses rust-resistant nickel chromium for the MBR's heat elements, improving the unit's longevity and performance.
- Product Compatible With
- Goodman ARPT Air Handlers
- Goodman ARUF Air Handlers
- Goodman ASPT Air Handlers
- Goodman ASUF Air Handlers
- Goodman AVPTC Air Handlers
Adding electric heat to your Goodman system is easy with an electric heat kit. The HKS electric heat kit is perfect for homeowners looking to supplement their home's heating capabilities without making a major equipment purchase. The HKSC05XC is a 4.5 kW heater capable of supplying 15,355 BTU of heating per hour. It is designed specifically to fit inside Goodman's air handlers, and features a plug-in wiring harness to keep installation quick and simple. Whether you're in a warm climate and can't justify a furnace or you're just looking for a little extra heat from your heat pump, the HKSC05XC electric heat kit has got you covered.
California residents see
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
For more information go to: www.p65Warnings.ca.gov
Specifications
HKSC05XC

Overview
Product Category
Forced Air Accessories
UPC
663051565357
General Information
Type
Heat Strip
Product Line
HKS
Product Category
Forced Air Accessories
Performance
Electric Heat Capacity
4.5 kW
Electrical Data
Voltage
208/240 Volts
Phase
1
Frequency
60 Hz
Current Draw
20.8 Amps
Factory Installed Circuit Breaker
Yes
Dimensions
Product Weight
8 Pounds
Shipping Height
8 17/24 Inches
Shipping Width
13 Inches
Shipping Length
16 1/2 Inches
Shipping Weight
13 Pounds
Certifications
ETL Listed
Yes
ISO Certified
Yes
Warranty Information
Parts Warranty
Parts Warranty
A warranty is a safeguard from defects in manufacturing and can vary in length and terms. Some manufacturers require registration for extended warranty benefits, be sure to check out features and the warranty document. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
5 Limited Years
Reviews
(12)
Goodman HKSC05XC Reviews & Ratings
Customer Rating
4.75
(12 Ratings)
94% recommend this product
5
(9)

4
(3)

3
(0)

2
(0)

1
(0)


Easier than expected
By Paul C.
Muncie, Indiana
Purchased 02/18/2018 |
Review Posted 02/10/2020
Easy to install--15 minutes and done. Would be nice and a little more economical if it was available without the circuit breaker.
Paul C. Recommends This
Was this review helpful?
Rating Breakdown
5/5
5/5
5/5
4/5

easy to install
By Thomas S.
Glennville, Georgia
Purchased 07/05/2019 |
Review Posted 08/07/2019
easy to install and works great
Thomas S. Recommends This
Was this review helpful?
Rating Breakdown
5/5
5/5
5/5
5/5

Fairly simple to install.
By Kyla P
CUT BANK, Montana
Purchased 02/19/2019 |
Review Posted 03/14/2019
This is the replacement/updated version of the older HKR-20C that was in my 2007 Goodman furnace. There were a few changes so I had an electrician install this and within an hour I had my furnace running again. I looked at several online places and this was the least expensive as well as the quickest shipper. I am glad I ordered from eComfort.com!!!!
Kyla P Recommends This
Was this review helpful?
Rating Breakdown
4/5
4/5
4/5
5/5

Perfect customer service
By Larry K.
Descanso, California
Purchased 01/09/2019 |
Review Posted 02/24/2019
Fit perfectly and was easy to install
Larry K. Recommends This
Was this review helpful?
Rating Breakdown
5/5
5/5
5/5
5/5

Really easy to install
By William G
Boca Raton, Florida
Purchased 07/07/2018 |
Review Posted 08/01/2018
I installed this heating element in less than ten minutes.
William G Recommends This
Was this review helpful?
Rating Breakdown
5/5
5/5
5/5
5/5

qualite product
By Micheline S.
McNeill, Mississippi
Purchased 05/31/2018 |
Review Posted 06/25/2018
easy installed
Micheline S. Recommends This
Was this review helpful?
Rating Breakdown
4/5
5/5
5/5
5/5

qualite product
By Micheline S.
McNeill, Mississippi
Purchased 05/31/2018 |
Review Posted 06/25/2018
easy installed
Micheline S. Recommends This
Was this review helpful?
Rating Breakdown
4/5
5/5
5/5
5/5

IT's a heat strip. Works as expected
By John N.
Raleigh, North Carolina
Purchased 01/21/2018 |
Review Posted 02/14/2018
My only complaint is the burning smell for the first few weeks of use. I have only had it installed for about a month but it seems to be better now. Every time the defrost cycle would come on and the heat strip would kick in there was a burning smell.
John N. Recommends This
Was this review helpful?
Expert Response
Hi John,
Thanks for your review! The burning smell you are experiencing is mostly likely due to the heating element burning off the dust in your system. This typically goes away after several uses.
We appreciate your feedback and we hope you are enjoying the heat kit. Please don't hesitate to contact us if the problem persists.
Thanks for your review! The burning smell you are experiencing is mostly likely due to the heating element burning off the dust in your system. This typically goes away after several uses.
We appreciate your feedback and we hope you are enjoying the heat kit. Please don't hesitate to contact us if the problem persists.

Ken D.
eComfort Product Expert
Rating Breakdown
4/5
3/5
4/5
5/5

Heat and A/C unit purchased
By Orlando G.
Tampa, Florida
Purchased 12/23/2017 |
Review Posted 02/07/2018
Bought matching A/C unit and needed heat strip everything worked out as planned. Great customer service.
Orlando G. Recommends This
Was this review helpful?
Rating Breakdown
5/5
5/5
5/5
5/5

Great Product!
By Barbara M.
Colquitt, Georgia
Purchased 08/22/2017 |
Review Posted 09/13/2017
Would recommend to friends.
Barbara M. Recommends This
Was this review helpful?
Rating Breakdown
5/5
5/5
5/5
5/5
Pros:
