Features
- Modular Design
- The modular nature of the MBVB makes it easy to work into any system. The two-piece design speeds up installation, and it can be configured easily for upflow, downflow, and horizontal airflow applications.
- Secure Cabinet
- This blower's cabinet features embossing to enhance durability and foil-faced insulation to reduce noise and condensation levels.
- Energy-Efficient Circulation
- By scaling the airflow to the unique demands and challenges of your home, the advanced variable speed blower motor provides ideal airflow through shifting conditions in nearly any application - all while using less energy than traditional motors.
- ComfortBridgeâ„¢ Compatible
- This blower is compatible with Goodman's ComfortBridgeâ„¢ controls. A ComfortBridgeâ„¢ control simplifies the installation and maintenance processes further by automatically detecting your equipment and providing diagnostics and troubleshooting.
- Product Compatible With
- Goodman CAPF Evaporator Coils
- Goodman CAPFA Evaporator Coils
- Goodman CAUF Evaporator Coils
- Goodman CAUFA Evaporator Coils
- Goodman CAPT Evaporator Coils
- Goodman CAPTA Evaporator Coils
- Goodman CHPF Evaporator Coils
- Goodman CHPFA Evaporator Coils
- Extended Warranty
- Goodman offers a 10-year limited parts warranty when you register your product online within 60 days of installation. An unregistered product has the standard 5-year warranty. See warranty sheet under the "Manuals" tab for more information.

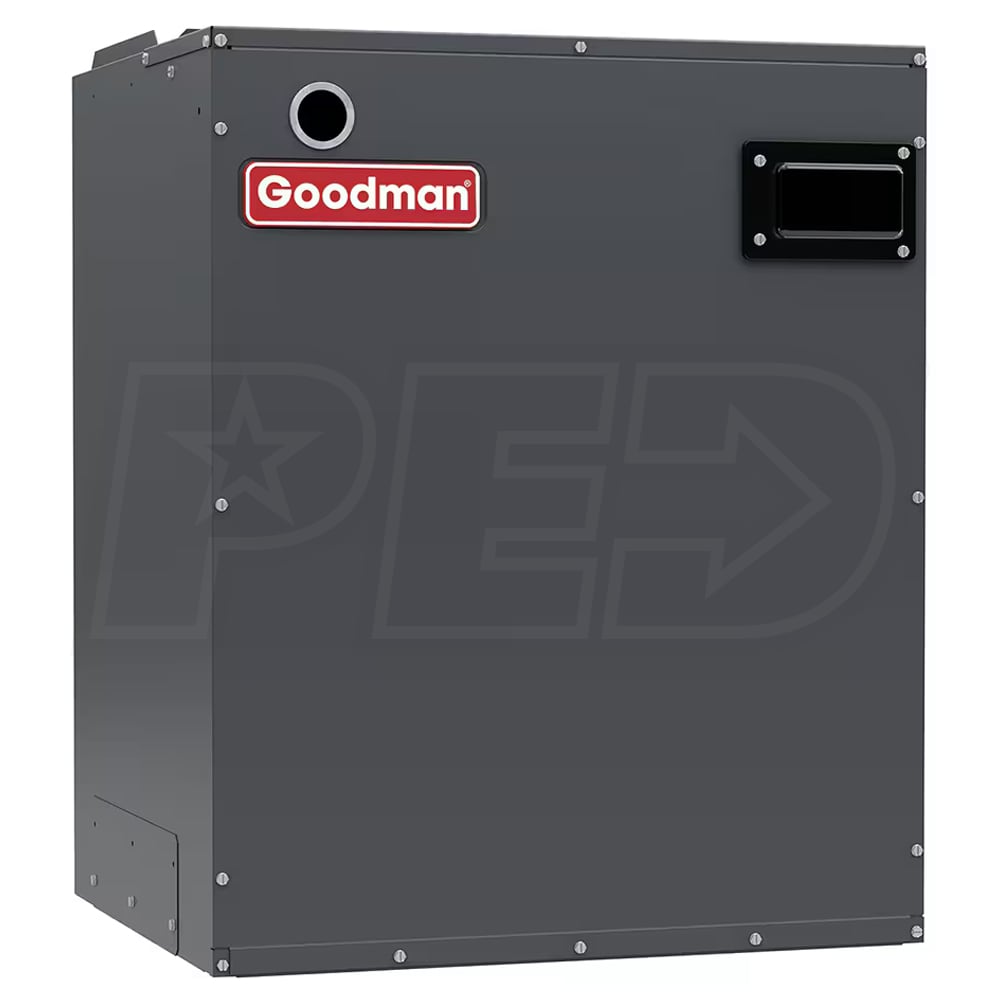

The best air conditioner or heat pump in the world is all for naught if your home lacks proper airflow. That's where the Goodman MBVB modular blower comes in. The MBVB is compatible with all Goodman R-32 "A" coils, and ready for multi-stage heating and cooling applications out of the box. It features one of the most advanced fan motors on the market today and a cabinet designed to improve longevity. With a focus on both efficiency and durability, the MBVB is a tremendous value for homeowners. If airflow issues are preventing you from getting the most out of your system, upgrade to a Goodman MBVB modular blower today.
California residents see
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
For more information go to: www.p65Warnings.ca.gov
Specifications
MBVB20DP1X00
General Information
Type
Air Handler
Product Line
MBVB
Product Category
Forced Air Blower
Blower Motor Type
Variable Speed
Motor Type
ECM
Mount Type
Multi-Position
Installation Location
Indoor
Electric Heat
Available
Installation Available
Yes
TXV Installed
No
UPC
663051692923
Performance
Capacity
Capacity
Tonnage, or tons of cooling, is a short hand method for describing the capacity of cooling equipment. One ton is equal to approximately 12 kBTU/hr.
5.0 Tons
Maximum Air Flow
2000 CFM
Electrical Data
Voltage
208/230 Volts
Phase
1
Frequency
60 Hz
Minimum Circuit Ampacity
6.5 Amps
Recommended Breaker Size
15 Amps
Dimensions
Cabinet Width
24 1/2 Inches
Product Height
30 Inches
Product Width
24 1/2 Inches
Product Depth
21 Inches
Product Weight
86 Pounds
Shipping Weight
86 Pounds
Certifications
ETL Listed
Yes
AHRI Certified
Yes
ISO Certified
Yes
Warranty Information
Parts Warranty
Parts Warranty
A warranty is a safeguard from defects in manufacturing and can vary in length and terms. Some manufacturers require registration for extended warranty benefits, be sure to check out features and the warranty document. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
Limited* 10 Years
