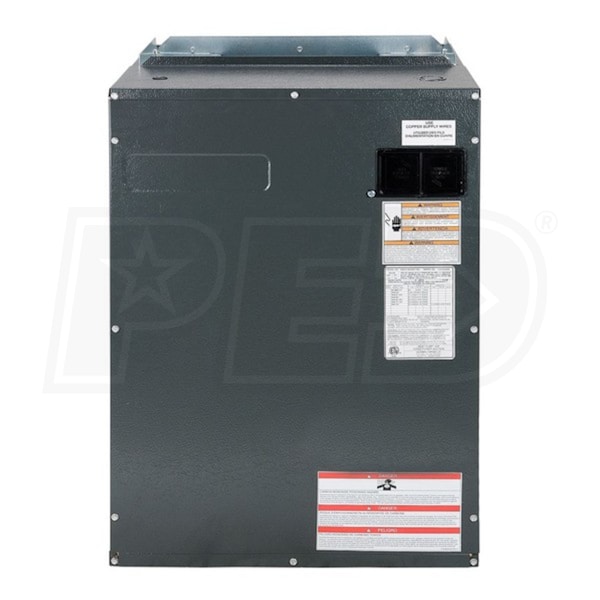

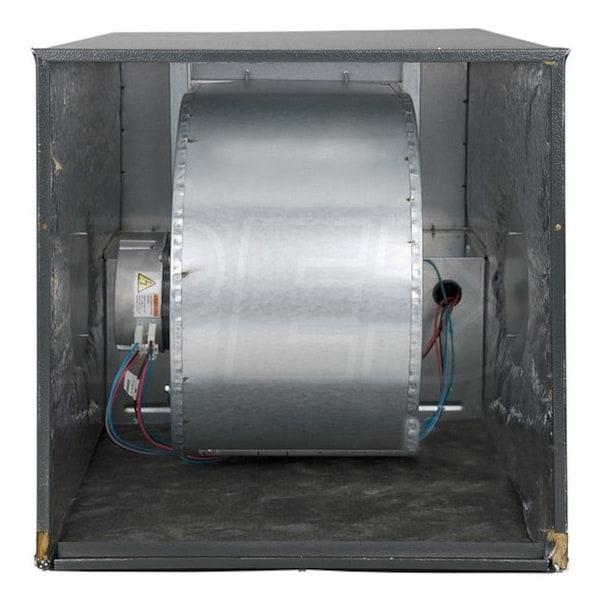

Goodman 1.5 to 3 Ton Air Conditioner Modular Blower Variable Speed
Model:
MBVC1200AA-1
+
Share This Product
Features
- Modular Design
- The modular nature of the MBVC makes it easy to work into any system. The two-piece design speeds up installation, and it can be configured easily for upflow, downflow, and horizontal airflow applications.
- Secure Cabinet
- This blower's cabinet features embossing to enhance durability and foil-faced insulation to reduce noise and condensation levels.
- Energy-Efficient Circulation
- By scaling the airflow to the unique demands and challenges of your home, the advanced variable speed blower motor provides ideal airflow through shifting conditions in nearly any application - all while using less energy than traditional motors.
- ComfortBridge Compatible
- This blower is compatible with Goodman's ComfortBridge communicating controls. A ComfortBridge control simplifies the installation and maintenance processes further by automatically detecting your equipment and providing diagnostics and troubleshooting.
- Product Compatible With
- Goodman CAPF Evaporator Coils
- Goodman CAUF Evaporator Coils
- Goodman CAPT Evaporator Coils
- Goodman CHPF Evaporator Coils
- Extended Warranty
- Goodman offers a 10-year limited parts warranty when you register your product online within 60 days of installation. An unregistered product has the standard 5-year warranty. See warranty sheet under the "Manuals" tab for more information.
Overview for Goodman MBVC1200AA-1 Air Conditioner Modular BlowerThe Goodman MBVC1200AA-1 Air Conditioner Modular Blower is tailor-made for exceptional energy efficiency. This Goodman MBVC1200AA-1 Air Conditioner Modular Blower is designed with quality components and assembled with excellent craftsmanship. The Goodman Air Conditioning and Heating company have become one of the largest manufacturers of residential and light commercial air conditioning, heating, and indoor air quality products and systems by focusing on just one thing, building the most reliable and refreshingly affordable indoor comfort products in the market.
The Goodman MBVC MBVC1200AA-1 Variable speed, Multi position Modular blower with ComfortNet Capabilites
The Goodman brand is one of the biggest names in home cooling, heating and energy-efficient home comfort.
California residents see
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
For more information go to: www.p65Warnings.ca.gov
Specifications
MBVC1200AA-1
Overview
Product Category
Forced Air Blower
UPC
663051549524
Additional Model Numbers
MBVC1200AA-1, MBVC1200AA-1
General Information
Type
Air Handler
Product Line
MBVC
Product Category
Air Handler
Blower Motor Type
Variable Speed
Motor Type
ECM
Mount Type
Multi-Position
Installation Location
Indoor
Electric Heat
Available
Installation Available
Yes
TXV Installed
No
Performance
Capacity
Capacity
Tonnage, or tons of cooling, is a short hand method for describing the capacity of cooling equipment. One ton is equal to approximately 12 kBTU/hr.
3.0 Tons
Maximum Air Flow
1200 CFM
Electrical Data
Voltage
208/230 Volts
Phase
1
Frequency
60 Hz
Minimum Circuit Ampacity
4.3 Amps
Recommended Breaker Size
15 Amps
Dimensions
Cabinet Width
17 1/2 Inches
Product Height
26 Inches
Product Width
17 1/2 Inches
Product Depth
21 Inches
Product Weight
67 Pounds
Shipping Weight
77 Pounds
Certifications
ETL Listed
Yes
AHRI Certified
Yes
Warranty Information
Parts Warranty
Parts Warranty
A warranty is a safeguard from defects in manufacturing and can vary in length and terms. Some manufacturers require registration for extended warranty benefits, be sure to check out features and the warranty document. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
Limited* 10 Years
Reviews
(1)
Goodman MBVC1200AA-1 Reviews & Ratings
Product Q&A
(1)
Product Questions
Answered by Ken, the eComfort Product Expert
I will be installing this in a downflow orientation. Does the filter install on the top or the side of the blower?
Richard
from Vermont
September 19, 2015
