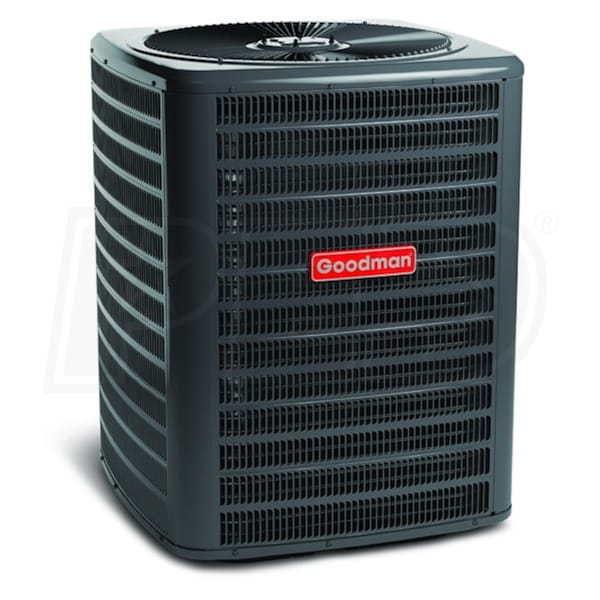

Goodman SSZ16 - 2 Ton - Heat Pump - 16 Nominal SEER - Single-Stage - R-410a Refrigerant

Model:

SSZ160241

Write A Review
Product Discontinued
Sorry, this product is no longer available.
Try this product instead
Goodman SSZ16 - 2 Ton - Heat Pump - 16 Nominal SEER - Single-Stage - R-410a Refrigerant
Goodman SSZ16 - 2 Ton - Heat Pump - 16 Nominal SEER - Single-Stage - R-410a Refrigerant
Model: SSZ160241
Product Discontinued
Accessories
Features
Specifications
Reviews
How-To Articles
Manuals
Share

Recommended Accessories

eComfort expert image
Expert Recommended Accessories Selected by Ken, our Expert
Required Accessories 9
These accessories are required to properly setup/install this product.
Optional Accessories 10

Features

    Goodman established itself as the largest HVAC manufacturer in the US by producing high-quality, efficient equipment and providing it to homeowners at a great value. The SSZ16 heat pump has a nominal SEER rating of 16 and a minimum HSPF of 8.2 to ensure incredibly efficient comfort regardless of your application. The savings don't stop at energy costs; the SSZ160241's design allows it to be quickly installed and serviced. It also includes advanced components that protect the coil and compressor to ensure reliable operations and peace of mind. Become a heat pump household today, and enjoy efficient comfort from a single piece of equipment through all four seasons.

    Product Features

    Quiet Comfort
    Goodman takes great pride in providing comfort that doesn't disrupt your home. The louvered top and three-bladed condenser fan of the SSZ160241 were designed to reduce noise levels without compromising performance. This model also has a high-capacity discharge muffler and a high-density foam sound blanket, which curtail vibrational and compressor noise, respectively.

    Filter Drier
    A biflow filter drier is installed in the liquid line of this heat pump. It serves two important purposes: removing moisture and trapping impurities. This prevents corrosion, freezing, and blockages that can negatively impact the operation of the heat pump.

    Secure Cabinet
    The cabinet of the SSZ160241 is built to last. Galvanized steel construction, a durable powder paint finish, rust-resistant screws, and a steel coil guard protect your equipment from wear and tear, increasing its longevity.

    SmartShift
    Goodman's SmartShift technology, combined with ambient and coil temperature sensors, gives this unit a quiet and effective defrost system. SmartShift also helps to prevent short-cycling, increasing the efficiency of defrost operations.

    High-Efficiency Compressor
    This unit utilizes a high-efficiency scroll compressor to provide refrigerant flow. Scroll compressors are renowned for operating more smoothly and reliably than traditional compressors.

    Compressor Protection
    Goodman installed two layers of compressor protection in the SSZ160241. A suction accumulator collects excess liquid refrigerant, preventing it from flooding and damaging the compressor during operation. A crankcase heater ensures that the compressor stays well-oiled by maintaining a compressor temperature that discourages oil migration.

    Product Note
    NOTE: Due to DOE regulations, as of January 1st this unit can no longer be installed in the southwest and southeast DOE regions.
California residents see
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
For more information go to: www.p65Warnings.ca.gov

Specifications

SSZ160241
specs product image PID-26137
General Information
Type
Heat Pump
Product Line
SSZ16
Operating Mode Learn More
Operating Mode
Some products are only capable of cooling, while others can either heat or cool a space. Some products heat via "heat pump" technology while others use electric heating elements. Learn More
Cooling & Heating
Refrigerant Type
R-410A
Installation Location
Outdoor
Compressor Stages Learn More
Compressor Stages
Stages are the distinct levels of output that an air conditioner or heat pump can deliver. Having more than one stage allows the equipment to better match the needs of the space and deliver better comfort and more efficiency.
Single Stage
DOE Regional Compliance Learn More
DOE Regional Compliance
In 2015, the US Department of Energy broke the country into three regions - North, Southeast, and Southwest - and set legal standards for energy efficiency within each region. Learn More
Nationwide
UPC
663051509467
Performance
Capacity Learn More
Capacity
Tonnage, or tons of cooling, is a short hand method for describing the capacity of cooling equipment. One ton is equal to approximately 12 kBTU/hr.
2.0 Tons
Nominal Cooling Capacity
24000 BTU
Heating BTU
24000
Maximum Sound Level Learn More
Maximum Sound Level
Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB. Learn More
70 dB
Nominal SEER Learn More
Nominal SEER
SEER (Seasonal Energy Efficiency Ratio) is a measurement of cooling efficiency over a typical cooling season. It is useful for comparing energy efficiency of cooling systems. The higher the SEER, the more energy efficient the system. Actual SEER may differ from Nominal SEER depending on the products used in a particular system.
16
Electrical Data
Voltage
208/230 Volts
Phase
1
Frequency
60 Hz
Minimum Circuit Ampacity
17.9 Amps
Recommended Breaker Size
30 Amps
Dimensions
Product Height
38 1/4 Inches
Product Width
29 Inches
Product Depth
29 Inches
Product Weight
190 Pounds
Shipping Weight
208 Pounds
Liquid Valve Connection Size
3/8 Inch
Suction Valve Connection Size
3/4 Inch
Certifications
ETL Listed
Yes
AHRI Certified
Yes
ISO Certified
Yes
Warranty Information
Parts Warranty Learn More
Parts Warranty
A warranty is a safeguard from defects in manufacturing and can vary in length and terms. Some manufacturers require registration for extended warranty benefits, be sure to check out features and the warranty document. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
5 Years
Compressor Warranty
5 Years
