Features
- Product Compatible With
- Goodman GSX130301 Air Conditioners
- Goodman GSX130361 Air Conditioners
- Goodman DSXC160361 Air Conditioners
- Goodman GSZ130301 Heat Pumps
- Goodman GSZ130361 Heat Pumps
- Goodman SSZ140301 Heat Pumps
- Goodman SSZ140361 Heat Pumps
- Goodman SSZ140381 Heat Pumps
- Goodman SSZ160301 Heat Pumps
- Goodman SSZ160361 Heat Pumps
- Goodman DSZC160361 Heat Pumps
- Goodman DSZC180361 Heat Pumps
- Goodman CAPF3030*6 Evaporator Coils
- Goodman CAUF3030*6 Evaporator Coils
- Goodman CAPF3642*6 Evaporator Coils
- Goodman CAUF3642*6 Evaporator Coils
- Goodman CHPF3636B6 Evaporator Coils
- Goodman CSCF3036N6 Evaporator Coils
- Goodman CSCF3642N6 Evaporator Coils
Overview for Goodman TX3N4 Air Conditioner TXV Valve for R410A RefrigerantThe Goodman Goodman TX3N4 Air Conditioner TXV or thermal expansion valve (often abbreviated as TEV, TXV or TX valve) is a component in refrigeration and air conditioning systems that controls the amount of refrigerant flow into the evaporator thereby controlling the superheating at the outlet of the evaporator. Available in R410A Refrigerant to meet your installation requirements.This Goodman TX3N4 Air Conditioner thermostatic expansion valve or TXV is a precision device. It is designed to regulate the rate at which liquid refrigerant flows into the evaporator from the condenser. This controlled flow is necessary to maximize the efficiency of the evaporator while preventing excess liquid refrigerant from returning to the compressor.How does the Goodman TX3N4 Air Conditioner TXV Valve for R410A Refrigerant work?As the Goodman TX3N4 Air Conditioner TXV regulates the rate at which liquid refrigerant flows into the evaporator, it maintains a proper supply of refrigerant by matching this flow rate against how quickly the refrigerant evaporates (boils off) in the evaporator coil. The Goodman TX3N4 Air Conditioner TXV responds to two variables in order to properly maintain efficiency. The temperature of the refrigerant vapor as it leaves the evaporator and the pressure in the evaporator itself. The Goodman TX3N4 Air Conditioner TXV does this by using a movable valve pin against the spring pressure to precisely control the flow of liquid refrigerant into the evaporator.By performing these actions the Goodman TX3N4 Air Conditioner TXV can maintain the required pressure for the SEER Rating as dictated by your system. This Goodman TX3N4 Air Conditioner TXV is a field installed accessory. Goodman has become one of the largest manufacturers of residential and light commercial air conditioning, heating, and indoor air quality products and systems by focusing on just one thing, building the most reliable and refreshingly affordable indoor comfort products in the market.
California residents see
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
For more information go to: www.p65Warnings.ca.gov
Specifications
TX3N4
Overview
Product Category
Forced Air Accessories
UPC
193031106183
Additional Model Numbers
TX3N4, TX3N4
General Information
Type
TXV Kit
Product Line
TX
Product Category
Forced Air Accessories
Refrigerant Type
R-410A
Dimensions
Product Weight
1 Pound
Shipping Weight
2 Pounds
Reviews
(5)
Goodman TX3N4 Reviews & Ratings
Product Q&A
Be the First to Ask A Question
Answered by Ken, the eComfort Product Expert
How-To Articles
How an Air Handler Works
If you live in a desert or tropical climate, chances are you have a central air...
How Central Air Conditioning Systems Work
Can you imagine life without air conditioning? Oppressive heat waves that can m...
How to Pick the Perfect Evaporator Coil & Air Handler
Evaporator coils and the refrigerant that flows through them are the veins and ...
Manuals
Ask A Question!
*Required Fields
+
Thank You For Submitting Your Question
Your submission has been sent successfully. Please give our experts up to two business days to respond.
Media Gallery

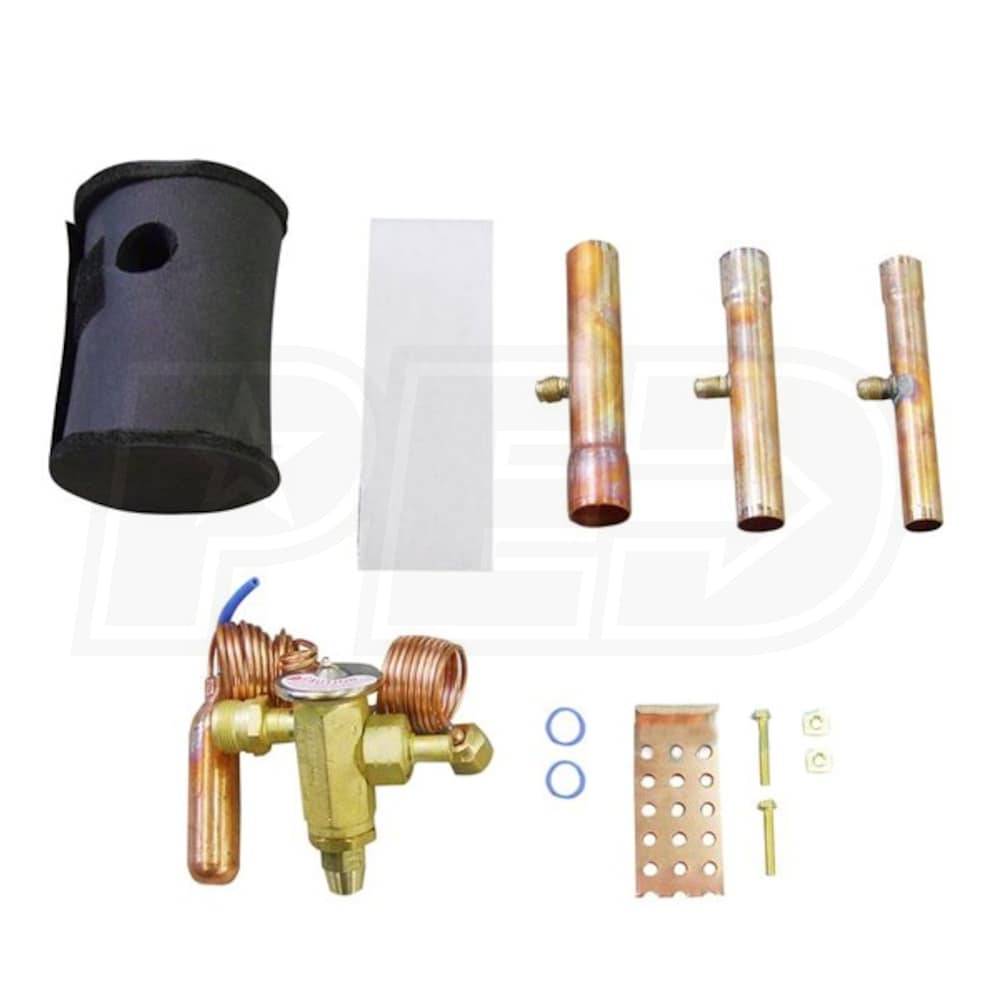

Goodman 2.5 to 3 Ton Air Conditioner TXV Kit R410A Refrigerant
