Goodman e-Series - 9k BTU Cooling + Heating - Wall Mounted Air Conditioning System - 18.0 SEER2
Model:
RXNG09AXVJU FTXNG09AXVJU
+
Share This Product
Recommended Accessories
Expert Recommended Accessories
Selected by Ken, our Expert
Required Accessories
9
These accessories are required to properly setup/install this product.
Optional Accessories
10
Features
- ECO+ Function
- The Goodman e-Series automatically adjusts the set temperature to an eco-friendly level, ensuring optimum energy consumption.

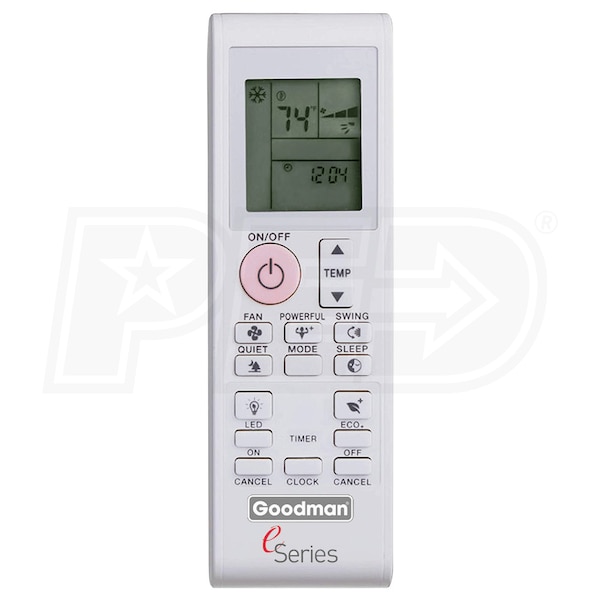

- Wireless Remote Control with Backlight
- Easily operate the indoor unit in the dark with the backlit LCD and luminous button on the remote control.
- Auto Restart
- The indoor unit has an auto-restart module that allows the unit to restart automatically and, in the case of a sudden power failure, will restore those setting automatically after power returns.
- 24-Hour Timer Feature
- The timer function establishes the amount of time that will elapse before the unit will automatically turn on/off.
- Inverter Powerful Operation
- This function enables the unit to reach your set temperature quickly by boosting cooling or heating performance for a 20 minute period.
- Sleep Mode
- Sleep mode helps you achieve your personalized sleep goal. This mode gradually adjusts the set temperature and auto adjusts the LED intensity for a more pleasant sleep.
- LED Display
- Simply turn off the LED display on the indoor unit with a touch of a button, guaranteeing no disruptions from light.
- On/Off Switch
- If the wireless remote is lost or its batteries are dead, the indoor unit can be conveniently started by hand.
- Self-Diagnosing
- The Goodman e-Series shows malfunction codes on the digital display of the remote control, providing fast and easy maintenance.
- Power-Airflow Flap
- The indoor unit provides cool air to the corners of a room by flattening the flaps during cooling operations.
- Automatic Operation
- At startup, the Goodman e-Series system automatically selects cooling or heating mode based on the room temperature.
- Vertical Auto-Swing
- The indoor unit distributes air across the room by automatically moving the flaps up and down.
- Auto Fan Speed
- Featuring a microprocessor, the Goodman e-Series automatically adjusts the fan speed to high to quickly reach the set temperature. After reaching the desired temperature, the fan will automatically reduce the speed to low.
- Quiet Operation
- With the wireless remote controller, the operating sound pressure levels of the indoor unit can be decreased from the low fan speed setting.
- Dry Function
- The Goodman e-Series manages humidity levels in the room while keeping the room temperature as stable as possible. It does this by automatically controlling both temperature and airflow rate.
- Wide-Angle Louvers
- The wide-angle louvers efficiently distribute air throughout the entire room, regardless of where the indoor unit is placed.
- Titanium Apatite Deodorizing Filter
- The titanium apatite within this filter not only traps dust particles with its micron-level fibers but also absorbs odors and allergens, effectively deodorizing the air.
- Catechin Air Filter
- Infused with catechin extracted from green tea, this filter neutralizes bacteria and viruses that are captured. Also, it prevents mildew growth on the surface of the filter.
- Wipe-Clean Panel
- With its flat panel design, a simple swipe across the surface is all it takes to clean it. Also, the panel can be detached for a more thorough cleaning.
- Removable Drain Pan
- Easily clean and service the Goodman e-Series with the removable drain pan. This pan collects condensation generated by the indoor heat exchanger fins.
- 5 Year Warranty
- Goodman stands behind their product with a hassle-free 5 year limited parts warranty.
- (1) Goodman e-Series - 9k BTU - Single Zone Outdoor Unit (RXNG09AXVJU)
- (1) Goodman e-Series - 9k BTU - Wall Mounted - Single Zone Only (FTXNG09AXVJU)
- Line Set - This double insulated tubing transfers refrigerant efficiently between your outdoor condenser and indoor unit.
- Drain Tubing - Drain tubing facilitates the reliable and effective removal of condensate from your system. It connects your indoor unit to drain locations of your choosing. We recommend locally purchased PVC hard pipe for the condensate drain on cassette and concealed duct units.
- Disconnect Box & Electrical Whip Kit - The Disconnect Box & Whip Kit provides a safe and simple way to connect your outdoor condenser to your fuse box.
- Connecting Cable - This durable, insulated cable provides power to your indoor unit from your outdoor condenser.
- Outdoor Condenser Plastic Pad or Wall Bracket - We recommend outdoor condensers should not be placed directly on the ground. An outdoor condenser pad or wall bracket will provide a stable way to mount your condenser free from obstructions and debris.
Goodman has firmly established themselves as a world leader in heating and cooling equipment manufacturing, and their ductless systems are no exception. Goodman e-Series wall mounted systems are perfect for all your single zone heating and cooling needs. This system pairs a Goodman e-Series wall mounted indoor unit with an outdoor heat pump unit to provide warm and cool air quietly and efficiently to any single zone or room in your home. Goodman e-Series indoor and outdoor units are designed with powerful energy saving features, allowing these systems to provide you with cost-efficient home comfort.
Product Includes
Product Note
This product requires the following accessories for installation:
California residents see
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
For more information go to: www.p65Warnings.ca.gov
Specifications
Product Includes
- (1) Goodman e-Series - 9k BTU - Single Zone Outdoor Unit (RXNG09AXVJU)
- (1) Goodman e-Series - 9k BTU - Wall Mounted - Single Zone Only (FTXNG09AXVJU)
RXNG09AXVJU FTXNG09AXVJU
General Information
Type
Wall Mounted
Product Category
Mini Split Heat Pump System
Operating Mode
Operating Mode
Some products are only capable of cooling, while others can either heat or cool a space. Some products heat via "heat pump" technology while others use electric heating elements. Learn More
Heating and Cooling
Number of Zones
Number of Zones
A zone is a room or area within a building that has its own temperature control.
1
Refrigerant Type
R-410A
Indoor Unit Size(s)
Indoor Unit Size(s)
Mini split systems can have one or more indoor units connected to a single outdoor unit. Indoor Unit Size(s) specifies what indoor unit sizes are used in a system. We have combined 6k and 7k indoor units to enhance searchability.
9
Outdoor Unit Size
9000 BTU
DOE Regional Compliance
DOE Regional Compliance
In 2015, the US Department of Energy broke the country into three regions - North, Southeast, and Southwest - and set legal standards for energy efficiency within each region. Learn More
Nationwide
Line Set Size
1/4" x 3/8"
Performance
Cooling BTU
9000
Cooling Capacity
10200 BTU
Heating Capacity
13000 BTU
Low Ambient Heating
No
Minimum Outdoor Temperature for Heating
Minimum Outdoor Temperature for Heating
This is the lowest rated outdoor temperature for heating operation. Because heat pumps rely on heat available in outdoor air, the amount of heat they are able to supply decreases with outdoor temperatures. Learn More
5 F
Minimum Outdoor Temperature for Cooling
50 F
SEER2
SEER2
The U.S Department of Energy has raised the minimum rating requirements starting in 2023 that include updated testing conditions and metrics to better reflect real-world conditions. SEER2 (Seasonal Energy Efficiency Ratio) is a measurement of cooling efficiency over a typical cooling season. It is useful for comparing energy efficiency of cooling systems. The higher the SEER2, the more energy efficient the system.
18.0
EER2
EER2
The U.S Department of Energy has raised the minimum rating requirements starting in 2023 that include updated testing conditions and metrics to better reflect real-world conditions. EER2 (Energy Efficiency Ratio) is a measurement of cooling efficiency under fixed conditions. It is useful for comparing units that will operate consistently under one set of conditions (e.g. server room). The higher the EER2, the more efficient the system.
11.0
HSPF2
HSPF2
The U.S Department of Energy has raised the minimum rating requirements starting in 2023 that include updated testing conditions and metrics to better reflect real-world conditions. HSPF2 (Heating Seasonal Performance Factor) is a measure of heating efficiency for heat pumps. It is useful for comparing energy efficiency of heat pumps. The higher the HSPF2, the more efficient the system.
9.0
Electrical Data
Voltage
208/230 Volts
Phase
1
Frequency
60 Hz
Dimensions
Product Weight
75.3 Pounds
Shipping Weight
86.7 Pounds
Certifications
AHRI Certified
Yes
AHRI Reference Number
211594218
RXNG09AXVJU
General Information
Type
Outdoor Condenser
Product Category
Mini Split System Components
Operating Mode
Operating Mode
Some products are only capable of cooling, while others can either heat or cool a space. Some products heat via "heat pump" technology while others use electric heating elements. Learn More
Heating and Cooling
Maximum Number of Zones
1
Multi-Zone Compatible
No
Refrigerant Type
R-410A
Installation Location
Outdoor
Performance
Cooling BTU
9000
Heating BTU
9400
Maximum Air Flow
1103 CFM
Maximum Sound Level
Maximum Sound Level
Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB. Learn More
48 dB
SEER2
SEER2
The U.S Department of Energy has raised the minimum rating requirements starting in 2023 that include updated testing conditions and metrics to better reflect real-world conditions. SEER2 (Seasonal Energy Efficiency Ratio) is a measurement of cooling efficiency over a typical cooling season. It is useful for comparing energy efficiency of cooling systems. The higher the SEER2, the more energy efficient the system.
18.0
EER2
EER2
The U.S Department of Energy has raised the minimum rating requirements starting in 2023 that include updated testing conditions and metrics to better reflect real-world conditions. EER2 (Energy Efficiency Ratio) is a measurement of cooling efficiency under fixed conditions. It is useful for comparing units that will operate consistently under one set of conditions (e.g. server room). The higher the EER2, the more efficient the system.
11.0
HSPF2
HSPF2
The U.S Department of Energy has raised the minimum rating requirements starting in 2023 that include updated testing conditions and metrics to better reflect real-world conditions. HSPF2 (Heating Seasonal Performance Factor) is a measure of heating efficiency for heat pumps. It is useful for comparing energy efficiency of heat pumps. The higher the HSPF2, the more efficient the system.
9.0
Electrical Data
Voltage
208/230 Volts
Phase
1
Frequency
60 Hz
Recommended Breaker Size
15 Amps
Dimensions
Gas Connection Size
3/8 Inch
Liquid Connection Size
1/4 Inch
Product Height
21 11/16 Inches
Product Width
26 1/2 Inches
Product Depth
11 3/16 Inches
Product Weight
55 Pounds
Warranty Information
Parts Warranty
Parts Warranty
A warranty is a safeguard from defects in manufacturing and can vary in length and terms. Some manufacturers require registration for extended warranty benefits, be sure to check out features and the warranty document. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
5 Years
FTXNG09AXVJU
General Information
Type
Wall Mounted
Product Category
Mini Split System Components
Operating Mode
Operating Mode
Some products are only capable of cooling, while others can either heat or cool a space. Some products heat via "heat pump" technology while others use electric heating elements. Learn More
Heating and Cooling
Multi-Zone Compatible
No
Indoor Unit Size(s)
Indoor Unit Size(s)
Mini split systems can have one or more indoor units connected to a single outdoor unit. Indoor Unit Size(s) specifies what indoor unit sizes are used in a system. We have combined 6k and 7k indoor units to enhance searchability.
9
Installation Location
Indoor
Remote Included
Yes
Performance
Cooling BTU
9000
Heating BTU
9400
Maximum Air Flow
466 CFM
Minimum Air Flow
142 CFM
Minimum Sound Level
19 dB
Maximum Sound Level
Maximum Sound Level
Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB. Learn More
43 dB
Electrical Data
Voltage
208/230 Volts
Phase
1
Frequency
60 Hz
Recommended Breaker Size
15 Amps
Dimensions
Gas Connection Size
3/8 Inch
Liquid Connection Size
1/4 Inch
Product Height
11 1/3 Inches
Product Width
30 5/16 Inches
Product Depth
9 3/16 Inches
Product Weight
20.3 Pounds
Warranty Information
Parts Warranty
Parts Warranty
A warranty is a safeguard from defects in manufacturing and can vary in length and terms. Some manufacturers require registration for extended warranty benefits, be sure to check out features and the warranty document. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
5 Years
