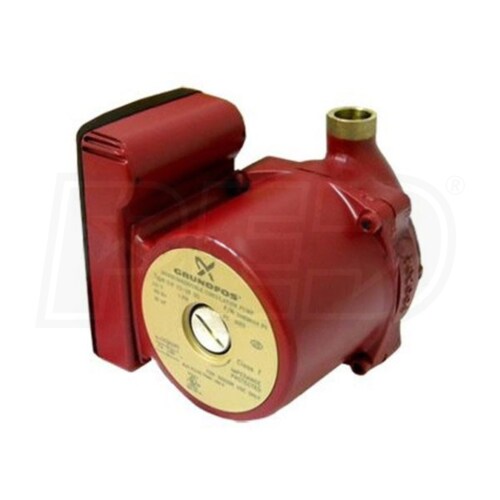

Grundfos UP - 1/25 HP - Single-Speed Circulation Pump - Bronze - 1/2" Sweat
Model:
59896114
+
Share This Product
Recommended Accessories
Expert Recommended Accessories
Selected by Ken, our Expert
Optional Accessories
3
$48.00
In-Stock
$57.00
In-Stock
$104.00
In-Stock
Features
- Durable Bronze Construction
- The Grundfos UP15-18B5 is crafted from bronze, which gives the pump both extended lifespan and protection against corrosion.
- Whisper Quiet Operation
- The UP15-18B5 pump runs quiet even at high flow levels, ensuring the pump won't distract you from your work or disrupt your sleep.
- Resilient Wet-Rotor Fluid Movement
- The wet rotor design of the UP15-18B5 lends integrity to both the motor and the rotor itself, providing exceptional longevity to any hydronic system the pump is a part of.
Grundfos pumps offer the pinnacle of reliability and performance for a large variety of water circulation applications. From home hydronic circulation to large scale commercial water movement, Grundfos has a pump that will provide years of trouble-free service. The UP15-18B5 is a single speed circulator with a wet-rotor fluid movement design. Solid bronze construction guarantees years of reliable performance with minimal maintenance needs, while hardwire electrical connection design allows the pump to tap directly into your home's electrical supply.
Specifications
59896114
Overview
Product Category
Boiler Accessories
UPC
05700391411250
General Information
Product Line
UP15-18
Product Category
Boiler Accessories
Motor Type
Single Speed
Connection Type
Sweat
Mount Type
In-Line
Material
Bronze
Drive Type
Wet Rotor
DHW Compatible
DHW Compatible
Can be used in Domestic Hot Water applications (baths, sinks, showers).
Yes
Performance
Maximum Head
13.8 Feet
Maximum Flow Rate
14.5 GPM
Minimum Fluid Temperature
35.6 F
Maximum Fluid Temperature
230 F
Horsepower
1/25 HP
Maximum Operating Pressure
145 PSI
Electrical Data
Voltage
115 Volts
Phase
1
Frequency
60 Hz
Current Draw
0.74 Amps
Dimensions
Connection Size
1/2 Inch
Product Height
4 11/16 Inches
Product Width
5 Inches
Product Depth
5 Inches
Product Weight
6 Pounds
Warranty Information
Parts Warranty
Parts Warranty
A warranty is a safeguard from defects in manufacturing and can vary in length and terms. Some manufacturers require registration for extended warranty benefits, be sure to check out features and the warranty document. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
2 Years
Reviews
(19)
Grundfos 59896114 Reviews & Ratings
Customer Rating
4.84
(19 Ratings)
5
(16)
(16)4(3)
(3)3(0)
(0)2(0)
(0)1(0)
(0)
Great replacement for original
By Roberto M.
El Paso, Texas
Purchased 01/13/2020 |
Review Posted 02/25/2020
Easy to follow directions.
Roberto M. Recommends This
Was this review helpful?
Rating Breakdown
5/5
5/5
5/5
5/5
Pros:
Id Buy It Again, High Quality
Effective product
By Jerry S.
Gilbert, Arizona
Purchased 01/02/2020 |
Review Posted 01/29/2020
The Grundfos recirc pump works to move hot water very quickly and effectively. It runs very quietly and the pump construction is solid and durable. The only issue that I have is the Grundfos timer that I purchased along with it is hard to set and understand how it works.
Jerry S. Recommends This
Was this review helpful?
Rating Breakdown
4/5
5/5
5/5
4/5
25+year pumps.
By James H.
Constantia, New York
Purchased 12/02/2019 |
Review Posted 12/26/2019
1 st pump of 3 that I had to replace in twenty six years.So I replaced it with another Grundfos end of story.
James H. Recommends This
Was this review helpful?
Rating Breakdown
5/5
5/5
5/5
5/5
Nice And Quiet
By Mark L
Spokane, Washington
Purchased 10/01/2019 |
Review Posted 10/27/2019
The pump doesn't come with a clamp cable connector for securing the electrical wiring. I purchased this along with a temperature sensor which did have one.
The pump's electrical port has enough room to run two sets of wires for power and for the sensor.
To make this comparable to the other units that cost almost $100 more with 1/2" female threads and a 24 hrs timer. I sweat on two 1/2" copper pressure cup and cup union fittings to make it easy to disconnect for maintenance and purchased a 24 hrs light timer. This only cost about $20 extra. Not bad for the same set up.
It runs quiet, as expected.
The pump's electrical port has enough room to run two sets of wires for power and for the sensor.
To make this comparable to the other units that cost almost $100 more with 1/2" female threads and a 24 hrs timer. I sweat on two 1/2" copper pressure cup and cup union fittings to make it easy to disconnect for maintenance and purchased a 24 hrs light timer. This only cost about $20 extra. Not bad for the same set up.
It runs quiet, as expected.
Mark L Recommends This
Was this review helpful?
Rating Breakdown
3/5
5/5
5/5
4/5
Pros:
Price, Durable, Quiet, Light Weight
Quality product at a good price!
By Cory S.
Eugene, Oregon
Purchased 08/28/2019 |
Review Posted 09/20/2019
In 1980 I had a solar hot water system installed in our house. After 39 years the original Grundfos pump finally failed.....This pump is the replacement model I needed. After draining the system and removing the old pump, the new one fit in easily and did not require any.plumbing changes. After refilling the system the new pump ran perfectly and the system is back up and running. Another 39 years of service?
Cory S. Recommends This
Was this review helpful?
Rating Breakdown
5/5
5/5
5/5
5/5
my pump
By Rodney H.
Elk Grove, California
Purchased 08/27/2019 |
Review Posted 09/17/2019
Works great the best pump of all on the market
Rodney H. Recommends This
Was this review helpful?
Rating Breakdown
5/5
5/5
5/5
5/5
Pros:
Price, Durable
Works perfect
By B A
Muskego, Wisconsin
Purchased 04/14/2019 |
Review Posted 05/06/2019
Works perfectly quiet, as you would expect.
B A Recommends This
Was this review helpful?
Rating Breakdown
5/5
5/5
5/5
5/5
Excellent
By Dharmesh B.
Robstown, Texas
Purchased 12/24/2018 |
Review Posted 01/17/2019
This pump is working perfectly at the moment. Just what I needed.
Dharmesh B. Recommends This
Was this review helpful?
Rating Breakdown
5/5
5/5
5/5
5/5
Grundfos UP
By Stuart W
Grapevine, Texas
Purchased 09/05/2018 |
Review Posted 09/29/2018
I purchased this pump to replace a Grundfos pump that was 8 years old. The professional plumber had installed it incorrectly (follow the directions carefully when positioning the pump). It was very easy to replace and properly position the pump. It took less than an hour from start to finish. I am looking for a long life from this new pump.
I was very surprised that the pump arrived two days after I ordered it. Quick delivery!
I was very surprised that the pump arrived two days after I ordered it. Quick delivery!
Stuart W Recommends This
Was this review helpful?
Rating Breakdown
5/5
5/5
5/5
5/5
Recirculating pump
By James F.
Boulder Junction, Wisconsin
Purchased 08/24/2018 |
Review Posted 09/14/2018
Pump was installed on a hot water heater reculating line. The pump was a simple do it yourself project. Pump works great, is quiet and now have instant hot water at a long run faucet.
James F. Recommends This
Was this review helpful?
Rating Breakdown
4/5
4/5
4/5
4/5
Product Q&A
(2)
Product Questions
Answered by Ken, the eComfort Product Expert
Can this pump work upside down? That is installed vertically but the flow goes from above to below?
Robert
from Illinois
December 31, 2015
My pump froze. Is there more to changing out the pump than shutting both gate valves and undoing the 4 bolts?
Mike
from California
September 19, 2015
