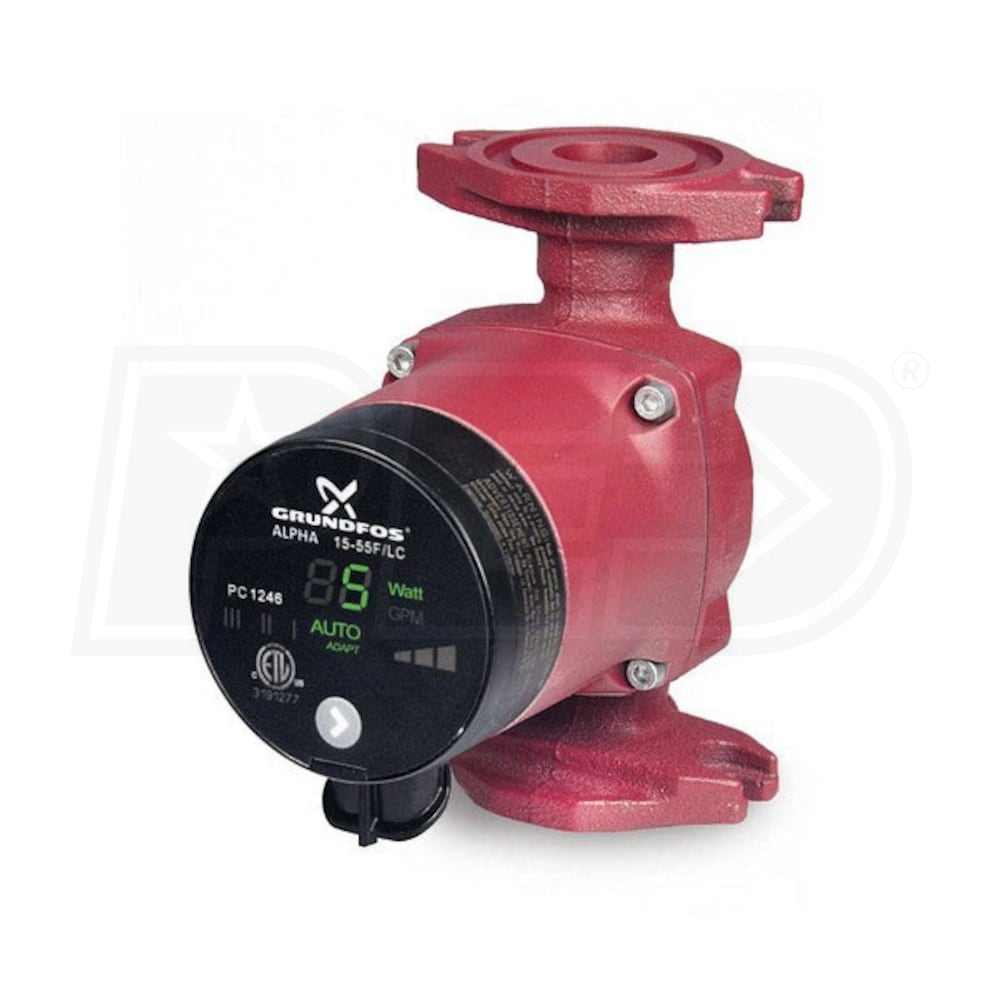

Grundfos ALPHA - 1/16 HP - Variable-Speed Circulation Pump - Cast Iron - GF 15/26 Flange

Model:

59896877

Write A Review
Product Discontinued
Sorry, this product is no longer available.
Continue Shopping With These Categories
Grundfos ALPHA - 1/16 HP - Variable-Speed Circulation Pump - Cast Iron - GF 15/26 Flange
Grundfos ALPHA - 1/16 HP - Variable-Speed Circulation Pump - Cast Iron - GF 15/26 Flange
Model: 59896877
Product Discontinued
Accessories
Features
Specifications
Reviews
How-To Articles
Manuals
Share

Recommended Accessories

eComfort expert image
Expert Recommended Accessories Selected by Ken, our Expert
Required Accessories 9
These accessories are required to properly setup/install this product.
Optional Accessories 10

Features

    Grundfos Alpha pumps are a culmination of years of pump manufacturing experience, combining the best features of Grundfos circulators into a single pump while remaining easy to operate. The ALPHA 15-55F is a variable speed circulator designed to provide consistent flow in a wide variety of applications. Constructed of Cast Iron, the Alpha is designed to provide year after year of reliable use.

    Product Features

    Durable Cast Iron Construction
    The Grundfos ALPHA 15-55F is crafted from cast iron, which gives the pump both extended lifespan and protection against corrosion.

    Preset Performance Modes
    Grundfos Alpha pumps come with a number of preset operation modes, designed to simplify the integration of the pump into your hydronic system.

    Unique ALPHA plug cord
    A unique composite cable is used to power the Grundfos Alpha, allowing power and data to be transmitted over the line.

    Large, Easy-to-Read Display
    The integrated bright LED-lit display allows at-a-glance readings of either flow rate or power consumption.

Specifications

59896877
specs product image PID-36382
Overview
Product Category
Boiler Accessories
General Information
Product Line
ALPHA 15-55
Product Category
Boiler Accessories
Blower Motor Type
Variable-Speed
Connection Type
Flange
Mount Type
In-Line
Material
Cast Iron
Drive Type
Wet Rotor
Performance
Maximum Head
18 Feet
Maximum Flow Rate
14 GPM
Minimum Fluid Temperature
35.6 F
Maximum Fluid Temperature
230 F
Horsepower
1/16 HP
Maximum Operating Pressure
145 PSI
Electrical Data
Voltage
115 Volts
Phase
1
Frequency
60 Hz
Current Draw
0.65 Amps
Dimensions
Product Height
10 3/16 Inches
Product Width
4 Inches
Product Depth
6 1/2 Inches
Product Weight
7 Pounds
Flange Connection
GF 15/26
Warranty Information
Parts Warranty Learn More
Parts Warranty
A warranty is a safeguard from defects in manufacturing and can vary in length and terms. Some manufacturers require registration for extended warranty benefits, be sure to check out features and the warranty document. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
2 Years
