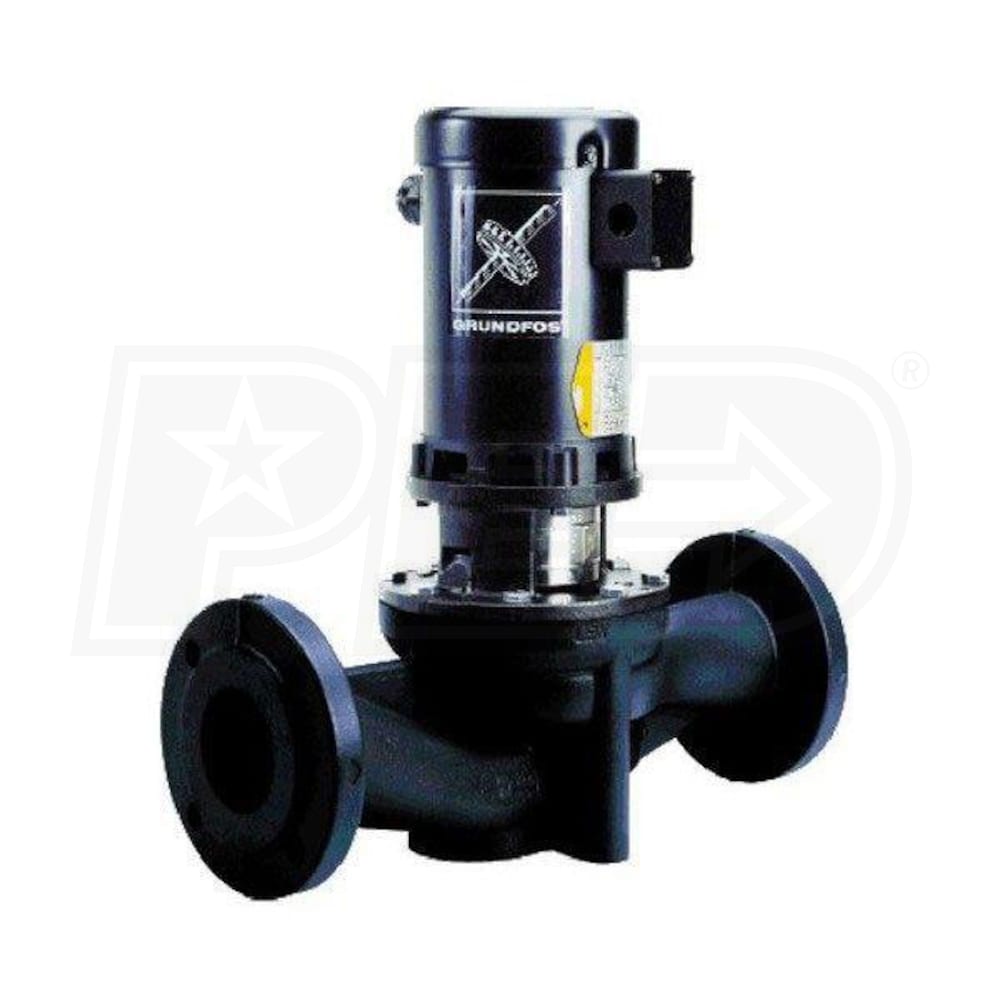

Grundfos TP40-160/2 Direct Coupled In-Line Circulator, PUMP END ONLY, Bronze, GF 40/43 Flange Mount - Requires 3/4 HP, 3,450 RPM Motor
Model:
91122126
+
Share This Product
Features
- Advanced fan design
- Results in dramatically reduced noise levels
- All-in-one-solution
- The coupling and shaft are friction-welded together in order to create a completely stable mechanical unit, drastically reducing the vibration levels and prolongs the lifetime of the shaft seals and bearings
- Mechanically and hydraulically balanced impeller
- Further minimizes vibration levels and axial forces while maximizing motor bearing and shaft seal lifetime
- Anti-corrosion surface
- Cataphoresis surface treatment consisting of Powercon cathodic electrocoating and zinc phosphate coating results in maximal protection against corrosion and a longer lasting inside surface that keeps efficiency high
- Renewable neck rings
- Makes it easy to upgrade your pump when necessary
- Unique design of shaft seal chamber
- Eliminates the need for external piping and ensures optimal water circulation, prolonging the lifetime of the shaft seal
- Grundfos Blueflux IE3
- Only motors with the official IE3 logo are certified maximum efficiency motors
- Compact perfection
- A large shaft diameter and a short distance from the impeller to the motor maximizes stability and results in lower maintenance costs
The Grundfos TP40-160/2 is a direct coupled, single-stage, in-line centrifugal pump. The TP 40-160/2 is a top-pull-out design, meaning the pump head (which includes the motor, motor stool and impeller) can be detached without interfering with the pump housing's pipework. This simplifies the routine service work needed to maintain the performance of these pumps, enabling a single person to service even the largest pumps. The Grundfos TP series pumps are specifically designed for the circulation of liquids in heating and air-conditioning systems. Typical applications for this bronze pump include: district heating/cooling, industrial cooling/processes, boiler/hydronic heating, domestic hot water, chilled water, air conditioning systems, cooling towers, radiant floor heating, solar and snow melt systems.
Specifications
91122126
Overview
Product Category
Boiler Accessories
UPC
05700394584326
General Information
Product Line
TP40-160/2
Product Category
Boiler Accessories
Flange Material
Bronze
Motor Type
Single Speed
Connection Type
Flanged
Mount Type
In-Line
Material
Bronze
Drive Type
Close-Coupled
DHW Compatible
DHW Compatible
Can be used in Domestic Hot Water applications (baths, sinks, showers).
Yes
Performance
Maximum Head
52.5 Feet
Maximum Flow Rate
59.4 GPM
Minimum Fluid Temperature
5 F
Maximum Fluid Temperature
284 F
Maximum Operating Pressure
145 PSI
Dimensions
Connection Size
1 1/2 Inches
Product Height
11 1/2 Inches
Product Depth
8 Inches
Product Weight
52 Pounds
Warranty Information
Warranty
Warranty
A warranty is a safeguard from defects in manufacturing and can vary in length and terms. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
2 Years
