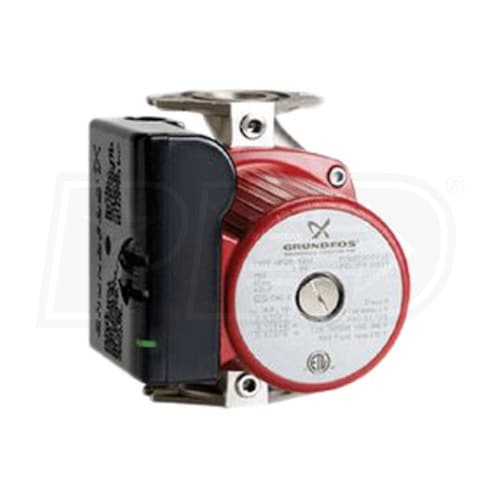

Grundfos UPS - 1/2 HP - 3-Speed Circulation Pump - Stainless Steel - GF 40/43 Flange
Model:
95906638
+
Share This Product
Recommended Accessories
Expert Recommended Accessories
Selected by Ken, our Expert
Required Accessories
9
These accessories are required to properly setup/install this product.
Optional Accessories
10
Features
- Durable Stainless Steel Construction
- The Grundfos UPS43-100SF is crafted from stainless steel, which gives the pump both extended lifespan and protection against corrosion.
- Whisper Quiet Operation
- The UPS43-100SF pump runs quiet even at high flow levels, ensuring the pump won't distract you from your work or disrupt your sleep.
- Resilient Wet-Rotor Fluid Movement
- The wet rotor design of the UPS43-100SF lends integrity to both the motor and the rotor itself, providing exceptional longevity to any hydronic system the pump is a part of.
Grundfos pumps offer the pinnacle of reliability and performance for a large variety of water circulation applications. From home hydronic circulation to large scale commercial water movement, Grundfos has a pump that will provide years of trouble-free service. The UPS43-100SF is a three speed circulator with a wet-rotor fluid movement design. Solid stainless steel construction guarantees years of reliable performance with minimal maintenance needs, while hardwire electrical connection design allows the pump to tap directly into your home's electrical supply.
Specifications
95906638
Overview
Product Category
Boiler Accessories
UPC
05700313291762
General Information
Product Line
UPS43-100
Product Category
Boiler Accessories
Motor Type
Multi-Speed
Connection Type
Flanged
Mount Type
In-Line
Material
Stainless Steel
Drive Type
Wet Rotor
DHW Compatible
DHW Compatible
Can be used in Domestic Hot Water applications (baths, sinks, showers).
Yes
Performance
Maximum Head
30.8 Feet
Maximum Flow Rate
65 GPM
Minimum Fluid Temperature
32 F
Maximum Fluid Temperature
230 F
Horsepower
1/2 HP
Maximum Operating Pressure
145 PSI
Electrical Data
Voltage
115 Volts
Phase
1
Frequency
60 Hz
Current Draw
3.5 Amps
Dimensions
Product Height
7 3/8 Inches
Product Width
6 Inches
Product Depth
8 1/2 Inches
Product Weight
17.7 Pounds
Flange Connection
GF 40/43
Warranty Information
Parts Warranty
Parts Warranty
A warranty is a safeguard from defects in manufacturing and can vary in length and terms. Some manufacturers require registration for extended warranty benefits, be sure to check out features and the warranty document. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
2 Years
Reviews
(6)
Grundfos 95906638 Reviews & Ratings
Product Q&A
(1)
Product Questions
Answered by Ken, the eComfort Product Expert
What position of the motor speed switch on this pump is for the low speed?
Sasha
from New York
April 05, 2016
