Grundfos UPS - 3/4 HP - 3-Speed Circulation Pump - Cast Iron - GF 40/43 Flange
Model:
96402782
+
Share This Product
Recommended Accessories
Expert Recommended Accessories
Selected by Ken, our Expert
Required Accessories
9
These accessories are required to properly setup/install this product.
Optional Accessories
10
Features
- Durable Cast Iron Construction
- The Grundfos UPS40-160/2 is crafted from cast iron, which gives the pump both extended lifespan and protection against corrosion.
- Whisper Quiet Operation
- The UPS40-160/2 pump runs quiet even at high flow levels, ensuring the pump won't distract you from your work or disrupt your sleep.
- Resilient Wet-Rotor Fluid Movement
- The wet rotor design of the UPS40-160/2 lends integrity to both the motor and the rotor itself, providing exceptional longevity to any hydronic system the pump is a part of.
Grundfos pumps offer the pinnacle of reliability and performance for a large variety of water circulation applications. From home hydronic circulation to large scale commercial water movement, Grundfos has a pump that will provide years of trouble-free service. The UPS40-160/2 is a three-speed circulator with a wet-rotor fluid movement design. Solid cast iron construction guarantees years of reliable performance with minimal maintenance needs, while hardwire electrical connection design allows the pump to tap directly into your home's electrical supply.
Product Note
Cast iron cannot be used in domestic hot water or potable water applications.
Specifications
96402782
Overview
Product Category
Boiler Accessories
UPC
05700390681210
General Information
Product Line
UPS40-160/2
Product Category
Boiler Accessories
Motor Type
Multi-Speed
Connection Type
Flanged
Mount Type
In-Line
Material
Cast Iron
Drive Type
Wet Rotor
DHW Compatible
DHW Compatible
Can be used in Domestic Hot Water applications (baths, sinks, showers).
No
Performance
Maximum Head
52.5 Feet
Maximum Flow Rate
48 GPM
Minimum Fluid Temperature
14 F
Maximum Fluid Temperature
248 F
Horsepower
3/4 HP
Maximum Operating Pressure
145 PSI
Electrical Data
Voltage
115 Volts
Phase
1
Frequency
60 Hz
Current Draw
2.5 Amps
Dimensions
Product Height
11 5/16 Inches
Product Width
9 11/16 Inches
Product Depth
11 1/2 Inches
Product Weight
50 Pounds
Flange Connection
GF 40/43
Warranty Information
Parts Warranty
Parts Warranty
A warranty is a safeguard from defects in manufacturing and can vary in length and terms. Some manufacturers require registration for extended warranty benefits, be sure to check out features and the warranty document. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
2 Years
Reviews
(6)
Grundfos 96402782 Reviews & Ratings
Product Q&A
(1)
Product Questions
Answered by Ken, the eComfort Product Expert
What position of the motor speed switch on this pump is for the low speed?
Sasha
from New York
April 05, 2016
How-To Articles
Hydronic System Accessory Guide
How warm does a coat keep you without gloves and a hat? Accessories are sometim...
How to Increase Efficiency and Comfort in Your Boiler
Low energy costs and a comfortable home are the hallmarks of an efficient, effe...
How to Pick the Perfect Hot Water Towel Warmer
Hydronic towel warmers are a great way to take advantage of your existing hot w...
Manuals
Ask A Question!
*Required Fields
+
Thank You For Submitting Your Question
Your submission has been sent successfully. Please give our experts up to two business days to respond.
Media Gallery

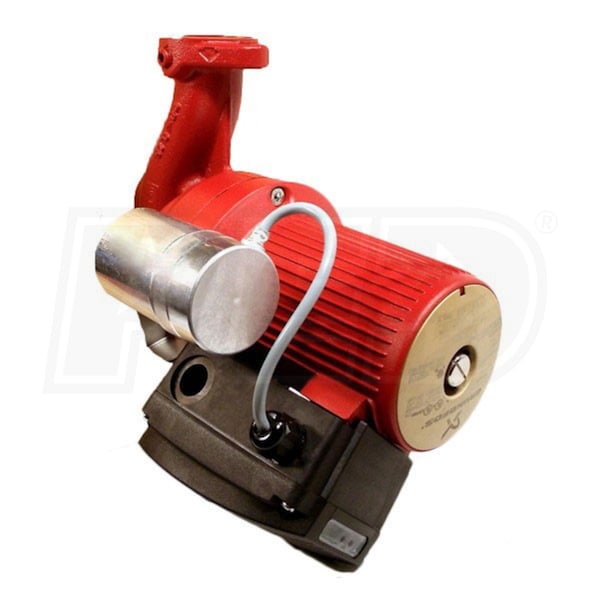

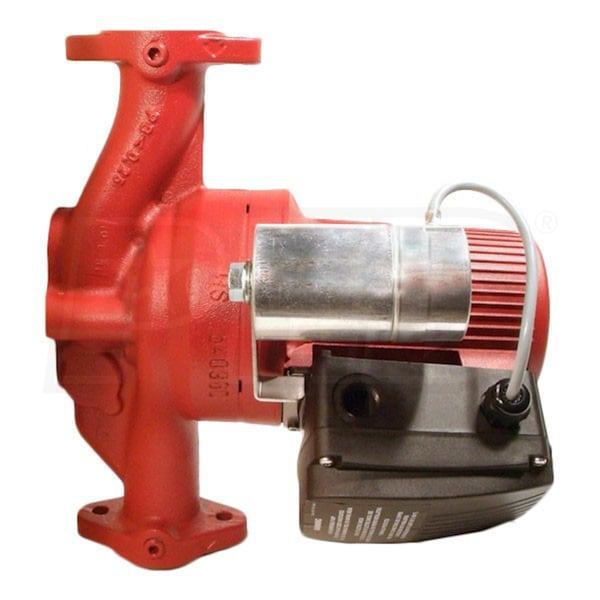

Grundfos UPS - 3/4 HP - 3-Speed Circulation Pump - Cast Iron - GF 40/43 Flange
