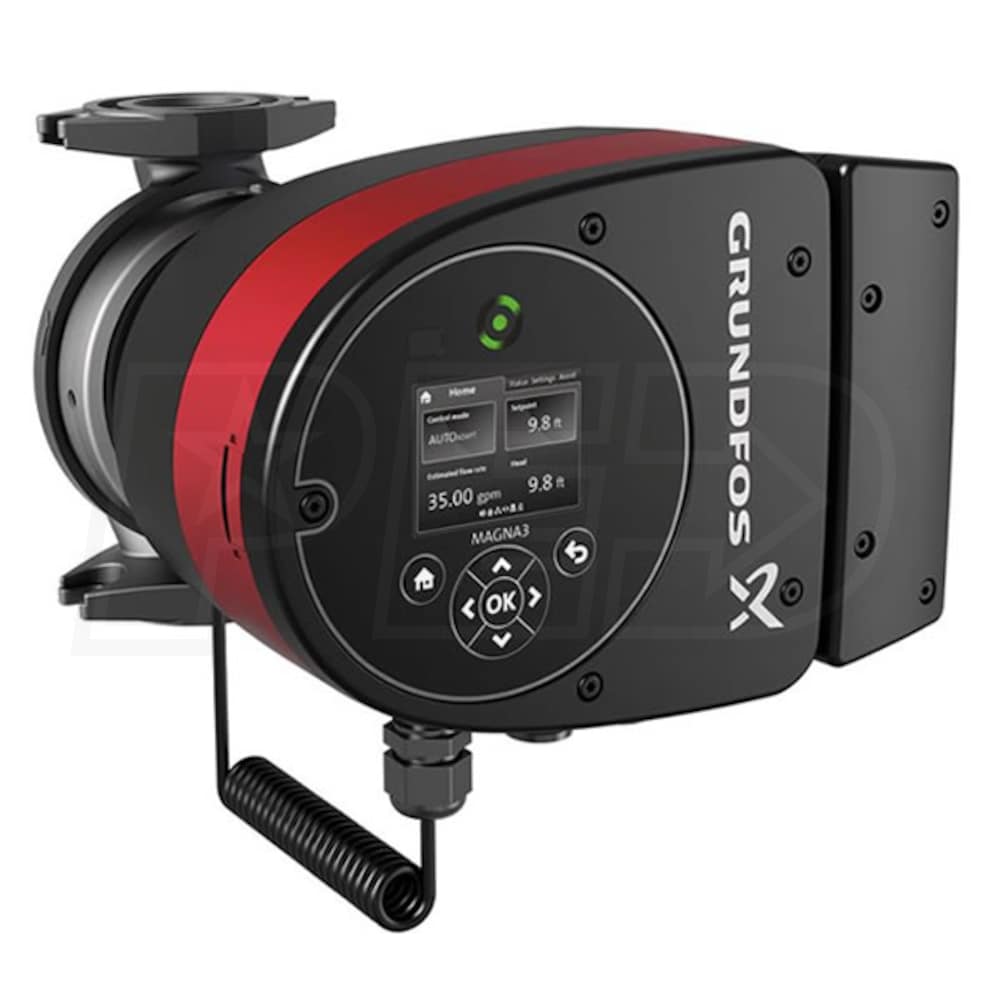

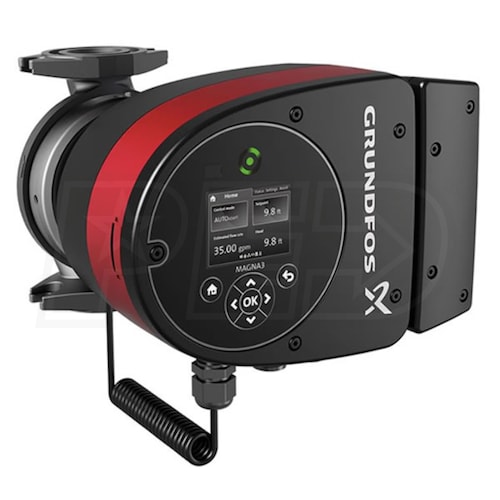

Grundfos MAGNA3 - 1/3 HP - Variable Speed Circulation Pump - Cast Iron - GF 15/26/40/43 Flange
Model:
98126800
+
Share This Product
Recommended Accessories
Expert Recommended Accessories
Selected by Ken, our Expert
Required Accessories
9
These accessories are required to properly setup/install this product.
Optional Accessories
10
Features
- Durable Cast Iron Construction
- The Grundfos MAGNA3 40-80 is crafted from cast iron, which gives the pump both extended lifespan and protection against corrosion.
- Whisper Quiet Operation
- The MAGNA3 40-80 pump runs quiet even at high flow levels, ensuring the pump won't distract you from your work or disrupt your sleep.
- Resilient Wet-Rotor Fluid Movement
- The wet rotor design of the MAGNA3 40-80 lends integrity to both the motor and the rotor itself, providing exceptional longevity to any hydronic system the pump is a part of.
- Intelligent Control
- With modes such as Constant Temperature Mode and Proportional Pressure Mode, you have a full range of control mode options with the MAGNA3. State-of-the-art modes like AutoAdapt and FlowAdapt set the MAGNA3 apart from the competition
- Energy Saving
- With the lowest Energy Efficiency Index (EEI), the MAGNA3 is the most efficient circulator on the market today. You can achieve energy savings up to 75% as compared to typical circulators.
Grundfos pumps offer the pinnacle of reliability and performance for a large variety of water circulation applications. From home hydronic circulation to large scale commercial water movement, Grundfos has a pump that will provide years of trouble-free service. With a full-range of intelligent, high efficiency pumps, the MAGNA3 series provides circulation for heating, cooling, ground source heat pump systems and domestic hot water applications.
Product Note
Cast iron cannot be used in domestic hot water or potable water applications.
Specifications
98126800
Overview
Product Category
Boiler Accessories
General Information
Product Line
MAGNA3
Product Category
Boiler Accessories
Motor Type
Variable Speed
Connection Type
Flanged
Material
Cast Iron
Drive Type
Permanent Magnet
DHW Compatible
DHW Compatible
Can be used in Domestic Hot Water applications (baths, sinks, showers).
No
Performance
Maximum Head
26.25 Feet
Maximum Flow Rate
46.7 GPM
Minimum Fluid Temperature
14 F
Maximum Fluid Temperature
230 F
Maximum Operating Pressure
174 PSI
Electrical Data
Voltage
115 Volts
Phase
1
Frequency
60 Hz
Dimensions
Product Height
8 1/2 Inches
Product Width
10 10/12 Inches
Product Depth
14 35/48 Inches
Product Weight
40 Pounds
Warranty Information
Parts Warranty
Parts Warranty
A warranty is a safeguard from defects in manufacturing and can vary in length and terms. Some manufacturers require registration for extended warranty benefits, be sure to check out features and the warranty document. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
2 Years
