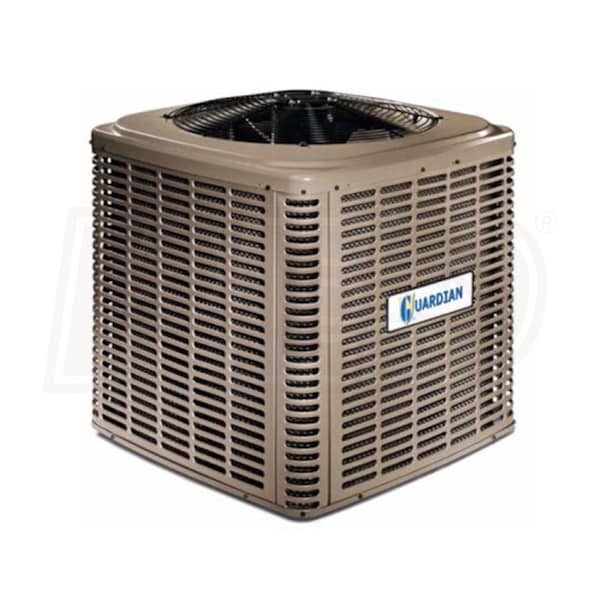

Guardian GCGD-2 - 1.5 Ton - Air Conditioner - 13 Nominal SEER - Single-Stage - R-22 Refrigerant

Model:

GCGD18S21S2X

Write A Review
Product Discontinued
Sorry, this product is no longer available.
Continue Shopping With These Categories
Guardian GCGD-2 - 1.5 Ton - Air Conditioner - 13 Nominal SEER - Single-Stage - R-22 Refrigerant
Guardian GCGD-2 - 1.5 Ton - Air Conditioner - 13 Nominal SEER - Single-Stage - R-22 Refrigerant
Model: GCGD18S21S2X
Product Discontinued
Features
Specifications
Reviews
How-To Articles
Manuals
Share

Features

    Backed by Johnson Controls, the Guardian brand strives to uphold quality standards unparalleled in the industry - delivering performance, efficiency, and reliability you can trust. Guardian's GCGD-2 air conditioner is the perfect cooling solution for homes that are still using R-22 refrigerant. It is built with an emphasis on longevity and value, offering homeowners an affordable way to stay comfortable that will last for years to come. The savings are compounded by the simplified installation process and low-maintenance design. If you're not looking to switch to R-410A refrigerant just yet, the Guardian GCGD18S21S2X will keep your home cool and comfortable without breaking your budget.

    Product Features

    Aluminum Coil Design
    The GCGD18S21S2X's condenser coil features aluminum construction for enhanced heat transfer and fins for maximum surface area. Microchannels are utilized to keep the coil's size down without sacrificing efficiency.

    Compressor Protection
    Guardian employs three forms of compressor protection to keep your investment running smoothly. An internal high pressure switch, a temperature sensor, and a liquid line filter-drier safeguard your air conditioner against malfunctions and damages.

    Low Noise
    Fan noise is no concern for Guardian air conditioners. The top panel and compressor mounts are designed to isolate and reduce the unit's operational noise, allowing you to enjoy quiet comfort.

    Built to Last
    GCGD-2 air conditioners are designed for longevity. Steel cabinet construction, a wire fan guard, and a coil guard all keep the GCGD18S21S2X safe from harm, and a UV-resistant paint job keeps it looking great for years.

    Easy to Install, Easy to Maintain
    Guardian's GCGD18S21S2X air conditioner is optimized for fast installation and servicing. The electrical and refrigerant connections are easily accessible, and the permanently lubricated motor bearing design is maintenance free.

    Product Note

    Compliance with US Federal Regional Efficiency Standards is dependent on the rated efficiency of your entire system, not the nominal efficiencies of individual components. If you are unsure if your system will be compliant, please confirm before purchasing by calling us at 866-554-4328 or email us at sales@eComfort.com.

Specifications

GCGD18S21S2X
specs product image PID-37297
General Information
Type
Outdoor Condenser
Product Line
GCGD-2
Operating Mode Learn More
Operating Mode
Some products are only capable of cooling, while others can either heat or cool a space. Some products heat via "heat pump" technology while others use electric heating elements. Learn More
Cooling Only
Refrigerant Type
R-22
Compressor Stages Learn More
Compressor Stages
Stages are the distinct levels of output that an air conditioner or heat pump can deliver. Having more than one stage allows the equipment to better match the needs of the space and deliver better comfort and more efficiency.
Single
UPC
688714000129
Performance
Capacity Learn More
Capacity
Tonnage, or tons of cooling, is a short hand method for describing the capacity of cooling equipment. One ton is equal to approximately 12 kBTU/hr.
1.5 Tons
Nominal Cooling Capacity
18000 BTU
Maximum Sound Level Learn More
Maximum Sound Level
Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB. Learn More
75 dB
Nominal SEER Learn More
Nominal SEER
SEER (Seasonal Energy Efficiency Ratio) is a measurement of cooling efficiency over a typical cooling season. It is useful for comparing energy efficiency of cooling systems. The higher the SEER, the more energy efficient the system. Actual SEER may differ from Nominal SEER depending on the products used in a particular system.
13.0
Electrical Data
Voltage
208-230 Volts
Phase
1
Frequency
60 Hz
Minimum Circuit Ampacity
8.5 Amps
Dimensions
Product Height
28 1/4 Inches
Product Width
24 Inches
Product Depth
24 Inches
Product Weight
130 Pounds
Liquid Valve Connection Size
3/8 Inch
Suction Valve Connection Size
3/4 Inch
Certifications
Country of Origin
United States
CSA Listed
Yes
AHRI Certified
Yes
ISO Certified
Yes
Warranty Information
Parts Warranty Learn More
Parts Warranty
A warranty is a safeguard from defects in manufacturing and can vary in length and terms. Some manufacturers require registration for extended warranty benefits, be sure to check out features and the warranty document. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
5 Years
Compressor Warranty
5 Years
