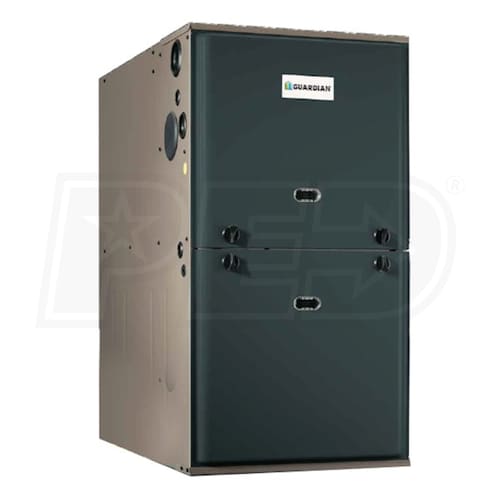

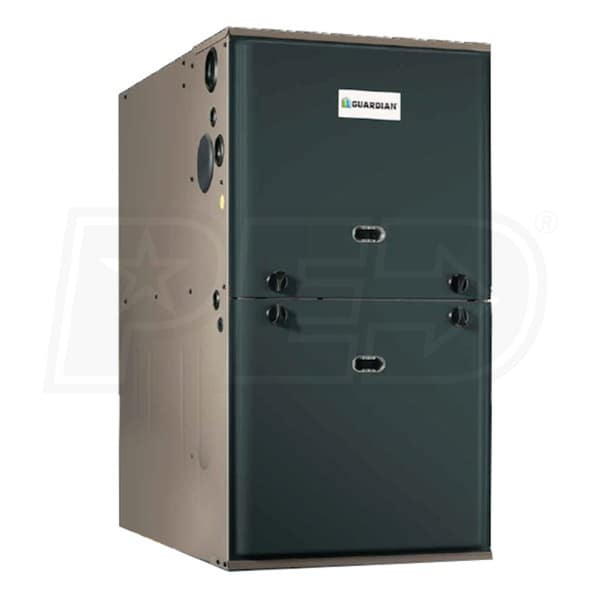

Guardian RGF-9-P - 60,000 BTU - Gas-Fired Furnace - NG - 95.5% AFUE - Single-Stage - Multi-Position - Multi-Speed
Model:
RGF19060BP12MP11
+
Share This Product
Features
Backed by Johnson Controls, the Guardian brand strives to uphold quality standards unparalleled in the industry - delivering performance, efficiency and reliability you can trust. Their RGF-9-P gas-fired furnace makes it easy to upgrade your home's energy efficiency. With multiple orientation and venting options and a compact design that emphasizes accessibility, the RGF19060BP12MP11 can be installed quickly and smoothly. This unit features dual heat exchangers, enabling it to provide 95.5% efficient comfort for your home. Instead of a pilot light, the RGF-9-P utilizes a hot surface ignition system with a 100% shut off gas valve for safer, more efficient operations. This Guardian furnace is an excellent addition to new construction and a substantial upgrade over older equipment, making it a great fit for nearly any comfort application.
Product Features
Advanced Heat Exchanger Design
The RGF19060BP12MP11's heat exchanger is the perfect blend of reliability and efficiency. The tubular design offers enhanced durability when compared to older heat exchanger designs, and aluminized steel construction ensures optimal heat transfer.
Secondary Heat Exchanger
This furnace features a secondary heat exchanger that improves the efficiency of your comfort by removing heat from combustion gases before they are vented. This secondary exchanger is built from stainless steel to protect against corrosion from the cooling gases.
Durable Cabinet
The cabinet of the RGF19060BP12MP11 is built from sheets of metal that have been galvanized and folded to provide maximum protection. The secure construction results in an airflow leakage rating of less than 1%.
Flexible Installation
This furnace can be installed in an upflow, downflow, or horizontal orientation, making it a perfect fit for any home's duct system.
Self-Priming Condensate Trap
A self-priming condensate trap installed within the unit automatically protects the RGF-9-P from internal damage by ensuring safe, swift condensate drainage.
Specifications
RGF19060BP12MP11
General Information
Type
Gas Furnace
Product Line
RGF-9-P
Fuel Type
Fuel Type
To create heat, some form of fuel is required. Fuel Type specifies what the product uses as an input to create heat.
Natural Gas
Vent Type
Vent Type
Products that use combustion (burning) of fuel to create heat also create potentially dangerous gasses that need to be exhausted (AKA "Vented"). Depending on the product, venting can be done via a chimney, through a side wall, or use a second vent to provide fresh air to the appliance.
Direct Vent
Modulating/Staging
Modulating/Staging
Stages are unique speeds or levels that equipment can operate at. More stages allow for better fine-tuned control of output, which improves comfort and efficiency. Modulating equipment can operate across a range of levels, giving the highest level of fine-tuned control. Learn More
Single Stage
Blower Motor Type
Multi-Speed
Motor Type
PSC
Configuration
Configuration
Orientation describes the direction that air will flow through a piece of equipment. (e.g. air will flow horizontally through a "Horizontal" unit heater.) Most equipment will only function properly if installed in the proper orientation.
Multi-Position
Gas Conversion Kit
Available
UPC
688714990581
Performance
AFUE
AFUE
AFUE (Annual Fuel Utilization Efficiency) measures the efficiency of combustion equipment over the entire heating season, and is calculated by dividing the amount of energy that is actually heating your home by the total energy contained in the fuel used by the boiler/furnace. Learn More
95.5 %
Heating BTU
60000
High Fire Input
60000 BTU
High Fire Output
57000 BTU
Maximum Air Flow
1200 CFM
Electrical Data
Voltage
115 Volts
Phase
1
Frequency
60 Hz
Minimum Circuit Ampacity
10 Amps
Recommended Breaker Size
15 Amps
Dimensions
Flue Connection Size
2 Inches
Product Height
33 Inches
Product Width
17 1/2 Inches
Product Depth
29 1/2 Inches
Product Weight
122 Pounds
Certifications
CSA Listed
Yes
AHRI Certified
Yes
ISO Certified
Yes
AHRI Reference Number
5852868
Warranty Information
Parts Warranty
Parts Warranty
A warranty is a safeguard from defects in manufacturing and can vary in length and terms. Some manufacturers require registration for extended warranty benefits, be sure to check out features and the warranty document. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
5 Years
Heat Exchanger Warranty
20 Years
