Honeywell Home-Resideo Aquastat Controller - 130-270° F Range - For High Limit, Manual Reset Applications
Honeywell Home-Resideo Aquastat Controller - 130-270° F Range - For High Limit, Manual Reset Applications
Model: L4006E1067
$256.00
Features
Specifications
Reviews
Product Q&A
How-To Articles
Manuals
Share

Features

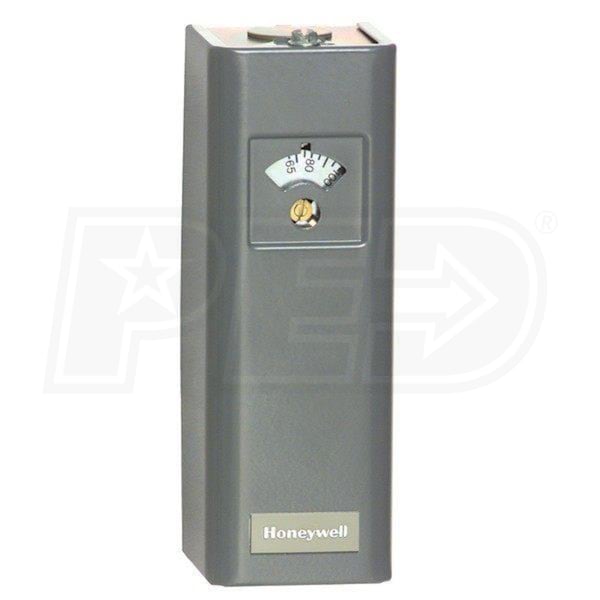

    The Honeywell Home-Resideo L4006E1067 Aquastat Controller For High Limit is an immersion type device for limiting or regulating the temperature of liquids in boilers, storage tanks and other applications where temperature control is required.
  • Honeywell Home-Resideo L4006E1067 Features
  • Totally enclosed Micro Switch snap-acting switches operate on temperature rise to setpoint
  • Visible control point scale and external adjustment screw permit easy setting
  • Horizontal or vertical insertion of the sensing element
  • Direct or well immersion of the sensing element
  • Models available for strap-on mounting
  • Remote bulb model may be used to sense air temperature in ducts and in outside air sensing applications
  • Heat Conductive Compound
  • Product Includes
  • Heat Conductive Compound

Specifications

L4006E1067
specs product image PID-33907
Overview
Product Category
Thermostats and Controls
UPC
085267048903
General Information
Product Line
L400
Product Category
Thermostats and Controls
Limit Type
High
High Differential Temperature Type
Manual Reset
Performance
Minimum Operating Temperature
130 F
Maximum Operating Temperature
270 F
Electrical Data
Maximum Load at 120V - AFL
8 Amps
Maximum Load at 120V - ALR
48 Amps
Maximum Load at 240V - AFL
1.3 Amps
Maximum Load at 240V - Resistive
30.6 Amps
Voltage
120/240 Volts
Phase
1
Frequency
60 Hz
Dimensions
Bulb Size
3/8 Inch
Product Height
5 5/8 Inches
Product Width
2 Inches
Product Length
2 1/8 Inches
Product Weight
1.3 Pounds
Certifications
CSA Listed
Yes
UL Listed
Yes
American Gas Association Certification
Yes
Warranty Information
Parts Warranty Learn More
Parts Warranty
A warranty is a safeguard from defects in manufacturing and can vary in length and terms. Some manufacturers require registration for extended warranty benefits, be sure to check out features and the warranty document. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
1 Year
