Honeywell Home-Resideo Aquastat Relay - Immersion Type - For High Limit Applications
Model:
L8148E1265
+
Share This Product
Features
- Honeywell Home-Resideo L8148E1265 Features
- High limit opens burner circuit only
- Include transformer and accessory terminals for adding a remote low limit controller
- Case available for horizontal or vertical mounting
- Well adapter, tube of heat conductive compound and range stops
- Product Includes
- Well adapter, tube of heat conductive compound and range stops

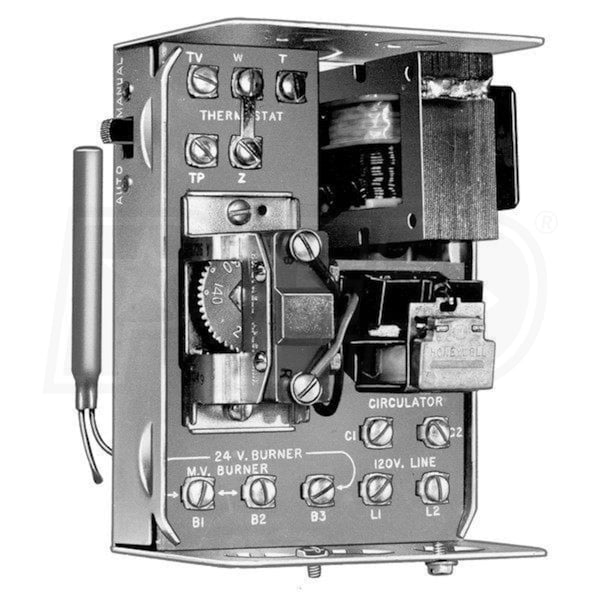

The Honeywell Home-Resideo L8148E1265 Aquastat Relay Immersion Type Controller is an immersion-type controller that combines high limit protection with switching relay control of burner and circulator motors.
Specifications
L8148E1265
Overview
Product Category
Thermostats and Controls
UPC
085267055215
General Information
Product Line
L814
Product Category
Thermostats and Controls
Limit Type
High
High Differential Temperature Type
Fixed
Performance
Maximum Operating Temperature
240 F
Electrical Data
Maximum Load at 120V - AFL
7.4 Amps
Maximum Load at 120V - ALR
44.4 Amps
Maximum Load at 240V - AFL
3.7 Amps
Maximum Load at 240V - Resistive
22.7 Amps
Voltage
120 Volts
Phase
1
Frequency
60 Hz
Dimensions
Capillary Length
4 1/2 Inches
Product Height
6 1/8 Inches
Product Width
3 1/8 Inches
Product Length
4 5/16 Inches
Product Weight
4 Pounds
Certifications
CSA Listed
Yes
UL Listed
Yes
Warranty Information
Parts Warranty
Parts Warranty
A warranty is a safeguard from defects in manufacturing and can vary in length and terms. Some manufacturers require registration for extended warranty benefits, be sure to check out features and the warranty document. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
1 Year
