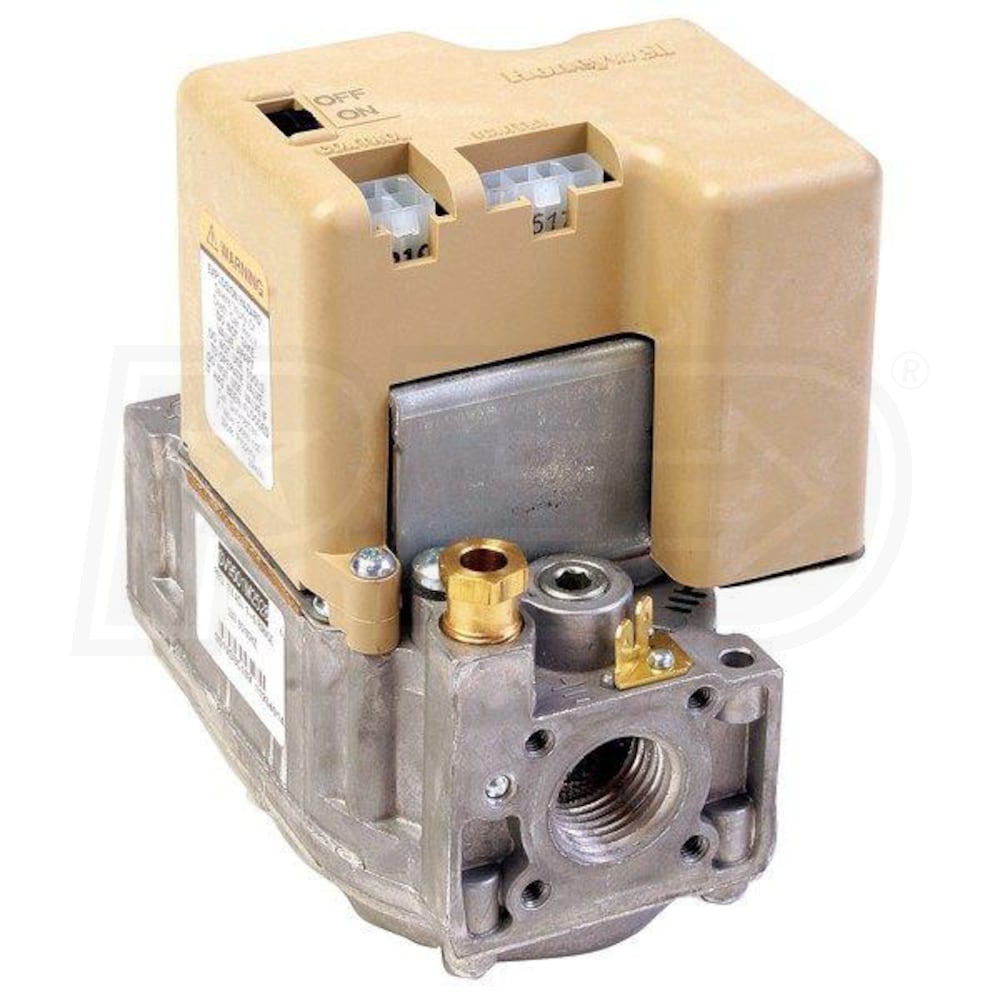

Honeywell Home-Resideo SmartValve System Control - Natural Gas - Slow Opening - 1/2" In x 1/2" Out
Model:
SV9502H2522
+
Share This Product
Features
- Honeywell Home-Resideo SV9502H2522 Features
- Suitable for a wide range of gas-fired appliances
- Ignition sequence includes timed trial for ignition
The Honeywell Home-Resideo SV9502H2522 SmartValve System Control provides easy field replacement of a wide range of Honeywell Home-Resideo SmartValve System models. Gas appliance manufacturers use these models in many types of gas fired heating appliances including central furnaces, residential boilers, rooftop furnaces, commercial cooking appliances and unit heaters. These controls provide intermittent pilot gas ignition sequencing, pilot flame sensing and both pilot and gas control functions in a single control. They are directly compatible with Q3450 or Q3480 Intermittent Pilot burners used with the original controls on the appliance.
Specifications
SV9502H2522
Overview
Product Category
Thermostats and Controls
UPC
085267791120
General Information
Product Line
SV950
Product Category
Thermostats and Controls
Gas Type
Natural Gas
Opening Characteristic
Slow Opening
Ignition Type
Intermittent Hot Surface Pilot Ignition
Gas Conversion Kit
Not Convertible
Electrical Data
Voltage
24 Volts
Phase
1
Frequency
50/60 Hz
Dimensions
Supply Connection
1/2 Inch
Return Connection
1/2 Inch
Product Height
4 43/48 Inches
Product Width
3 5/24 Inches
Product Length
4 5/48 Inches
Product Weight
2 Pounds
Certifications
American Gas Association Certification
Yes
Warranty Information
Parts Warranty
Parts Warranty
A warranty is a safeguard from defects in manufacturing and can vary in length and terms. Some manufacturers require registration for extended warranty benefits, be sure to check out features and the warranty document. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
1 Year
