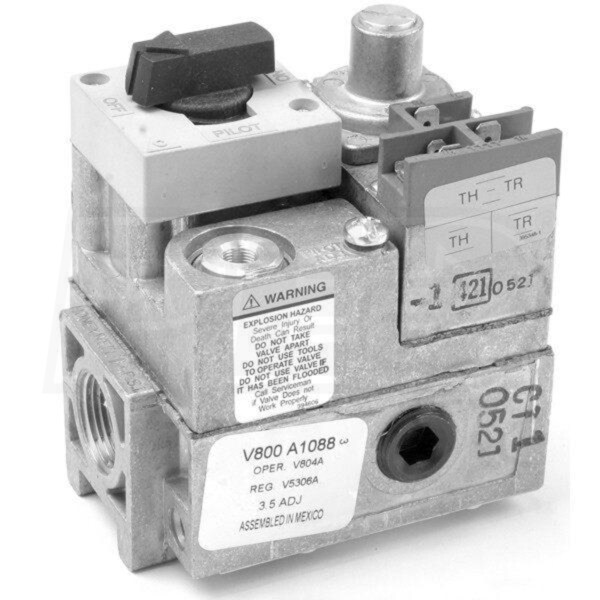

Honeywell Home-Resideo Low Voltage Combination Gas Control - NG or LP - Standard Opening - 3/4" In x 3/4" Out

Model:

V800A1591

Write A Review
$447.00
Free Shipping
  Learn More About Free Freight
Free Shipping
*This product qualifies for Free Shipping anywhere in the contiguous US. Accessories may ship separately. Items over 100lbs shipped via semi-truck, be sure to select "Lift Gate" to lower the product to the ground curbside. Remote area surcharges may apply, see our full shipping policy for more details.
Only 1 In-Stock
Ships Monday, Dec 23rd
Shipping to60601
synchrony card logo
$75 / Month
Suggested monthly payments with 6 month financing.
Honeywell Home-Resideo Low Voltage Combination Gas Control - NG or LP - Standard Opening - 3/4
Honeywell Home-Resideo Low Voltage Combination Gas Control - NG or LP - Standard Opening - 3/4" In x 3/4" Out
Model: V800A1591
$447.00
Features
Specifications
Reviews
Product Q&A
How-To Articles
Manuals
Share

Features

    The Honeywell Home-Resideo V800A1591 Low Voltage Combination Gas Control is a great component of gas fired standing pilot appliances. Designed for 30mV thermocouples, the Honeywell Home-Resideo V800A1591 Low Voltage Combination Gas Control is easy to install, adjust and service as they are all accessible from the top of unit.
  • Honeywell Home-Resideo V800A1591 Features
  • Complete Safety Shutoff on Pilot Flame Failure
  • Easy installation
  • LITE-RITE (OFF-PILOT-ON) lighting sequence
  • Manual Gas Valve
  • Safety Shutoff
  • Single millivoltage operator
  • Pressure Regulator
  • Pilot Gas Filter and Flow Adjustment
  • Pressure Tapping
  • Thermocouple Connector
  • Product Includes
  • Manual Gas Valve
  • Safety Shutoff
  • Single millivoltage operator
  • Pressure Regulator
  • Pilot Gas Filter and Flow Adjustment
  • Pressure Tapping
  • Thermocouple Connector

Specifications

V800A1591
specs product image PID-34490
Overview
Product Category
Thermostats and Controls
UPC
085267000727
General Information
Product Line
V800
Product Category
Thermostats and Controls
Gas Type
Natural Gas
Opening Characteristic
Standard
Ignition Type
Standing Pilot
Gas Conversion Kit
Available
Electrical Data
Voltage
24 Volts
Phase
1
Frequency
60 Hz
Dimensions
Supply Connection
3/4 Inch
Return Connection
3/4 Inch
Product Height
4 3/4 Inches
Product Width
3 3/16 Inches
Product Length
4 1/16 Inches
Product Weight
2.9 Pounds
Warranty Information
Parts Warranty Learn More
Parts Warranty
A warranty is a safeguard from defects in manufacturing and can vary in length and terms. Some manufacturers require registration for extended warranty benefits, be sure to check out features and the warranty document. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
1 Year
