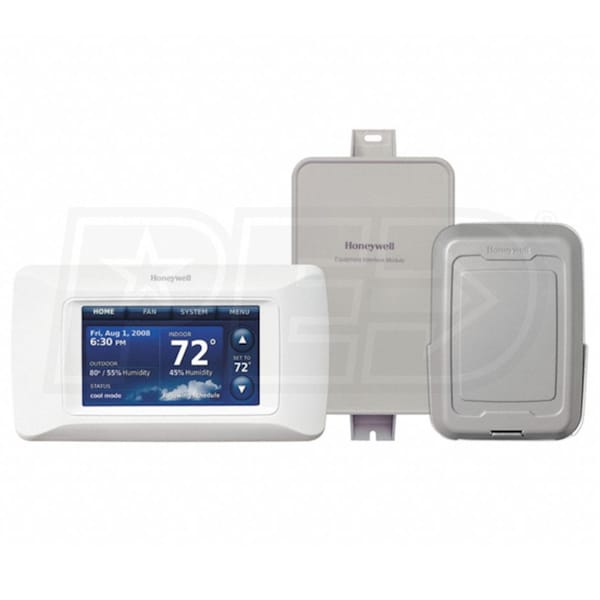

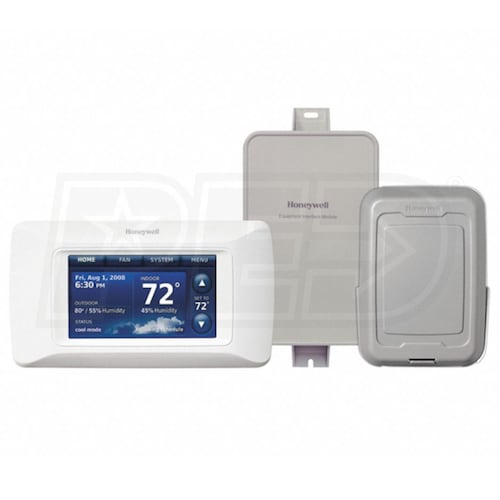

Honeywell Home-Resideo Prestige® RedLINK IAQ Thermostat Kit - EIM - Outdoor Sensor - 4H/2C Heat Pump, 3H/2C Conventional
Model:
YTHX9421R5101WW
+
Share This Product
Features
- Additional Features
- Smart Schedule allows you to program in seconds
- RedLINK™ wireless communication
- Selectable for residential or light commercial applications
- Delta T alerts and diagnostics informs you when system is not performing as expected
- Includes return and discharge air temperature sensors
- 3 assignable outputs to control humidification, dehumidification, ventilation and stage of heating or cooling
- 4 assignable inputs on the Equipment Interface Module for wired outdoor, indoor or discharge sensors, occupancy sensor, full drain pan or water leak
- Product Includes
- THX9421R5021WW Thermostat
- THM5421R1021 Equipment Interface Module
- C7089R1013 Wireless Outdoor Sensor
- 50062329-001 Discharge/Return Sensors (Qty 2)
The Honeywell Prestige® IAQ is a 2-wire color touchscreen thermostat that is 7-day programmable for residential and commercial use. The kit includes three sets of Universal IQA contacts to control humidification, dehumidification and ventilation. The kit also includes four sensor inputs for wired sensors or dry contact devices. Works with the Equipment Interface Module and RedLINK® accessories including the RedLINK® Internet Gateway, Portable Comfort Control, Wireless Outdoor Sensor and Wireless Indoor Sensor.
Specifications
YTHX9421R5101WW
Overview
Product Category
Thermostats and Controls
UPC
085267025850
General Information
Type
Thermostat
Product Category
Thermostats and Controls
Stages
4 Heat/2 Cool
Switch Contact Type
Digital
System Type
Heating + Cooling
Voltage Type
30
Programmable
Yes
Power Source
Hardwired
Interface
Digital
Dimensions
Product Height
3 1/2 Inches
Product Width
4 1/2 Inches
Product Depth
7/8 Inch
