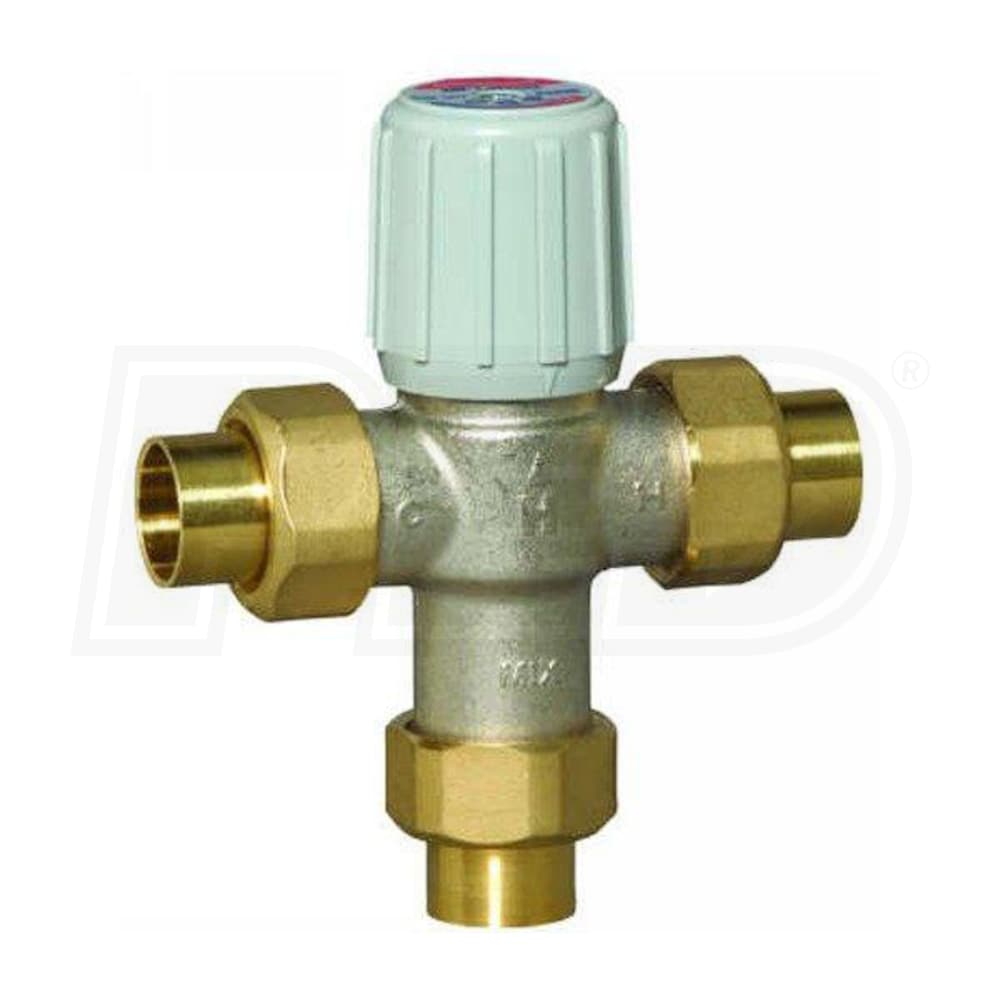

Honeywell Home-Resideo Thermostatic Mixing Valve - 3.9 Cv - 3/4" Union Sweat - 70° F to 180° F Operating Range
Model:
AM101R-US-1
+
Share This Product
Features
- Honeywell Home-Resideo AM101R-US-1 Features
- Dual purpose mixing or diverting valves
- Constant water temperature under changing operating conditions
- Reliable performance at minimum flow of .5 gpm
- Proportional valve (simultaneous control of hot and cold water)
- Temperature limit at any point
- Flow reduction in seconds if cold water supply is interrupted
- Nickel-plated brass construction, EPDM O-Rings
- High performance thermoplastic proportioning shuttle
- Straight through design (hot and cold at the same level)
- Max pressure 150 PSI
- Max temperature 212F
- Designed for easy maintenance and element replacement Teflon coating of internal valve components to prevent mineral build-up and extend life
- Tamper resistant design
- Valve trapping not required
- ASSE, CSA and IAPMO listed
The Honeywell Home-Resideo AM101R-US-1 Thermostatic Mixing Valve accurately adjusts, maintains and limits the hot water temperature to as desired setting selected by the user. In domestic water applications it offers scalding protection and bacteria growth control. With the installation of a Honeywell Home-Resideo AM101R-US-1 Thermostatic Mixing Valve and raising water heater storage temperature setting and limiting mixed outlet water temperature to safe temperature, more usable hot water is available. In heating applications it provides comfort and protects the equipment. The Honeywell Home-Resideo AM101R-US-1 Thermostatic Mixing Valve has a 0.75 inch Union Sweat connection, with a Cv of 3.9.
Specifications
AM101R-US-1
Overview
Product Category
Boiler Accessories
UPC
085267825214
General Information
Type
Mixing Valve
Product Line
AM
Product Category
Boiler Accessories
Valve Type
Mixing
Connection Type
Union Sweat
Performance
CV Value
3.9
Minimum Operating Temperature
70 F
Maximum Operating Temperature
180 F
Dimensions
Connection Size
3/4 Inch
Product Weight
2 Pounds
Certifications
CSA Listed
Yes
ASSE Certification
Yes
IAPMO Certification
Yes
Warranty Information
Parts Warranty
Parts Warranty
A warranty is a safeguard from defects in manufacturing and can vary in length and terms. Some manufacturers require registration for extended warranty benefits, be sure to check out features and the warranty document. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
1 Year
