Honeywell L4081B1096
Honeywell L4081B1096
Hover to zoom
1 of 1

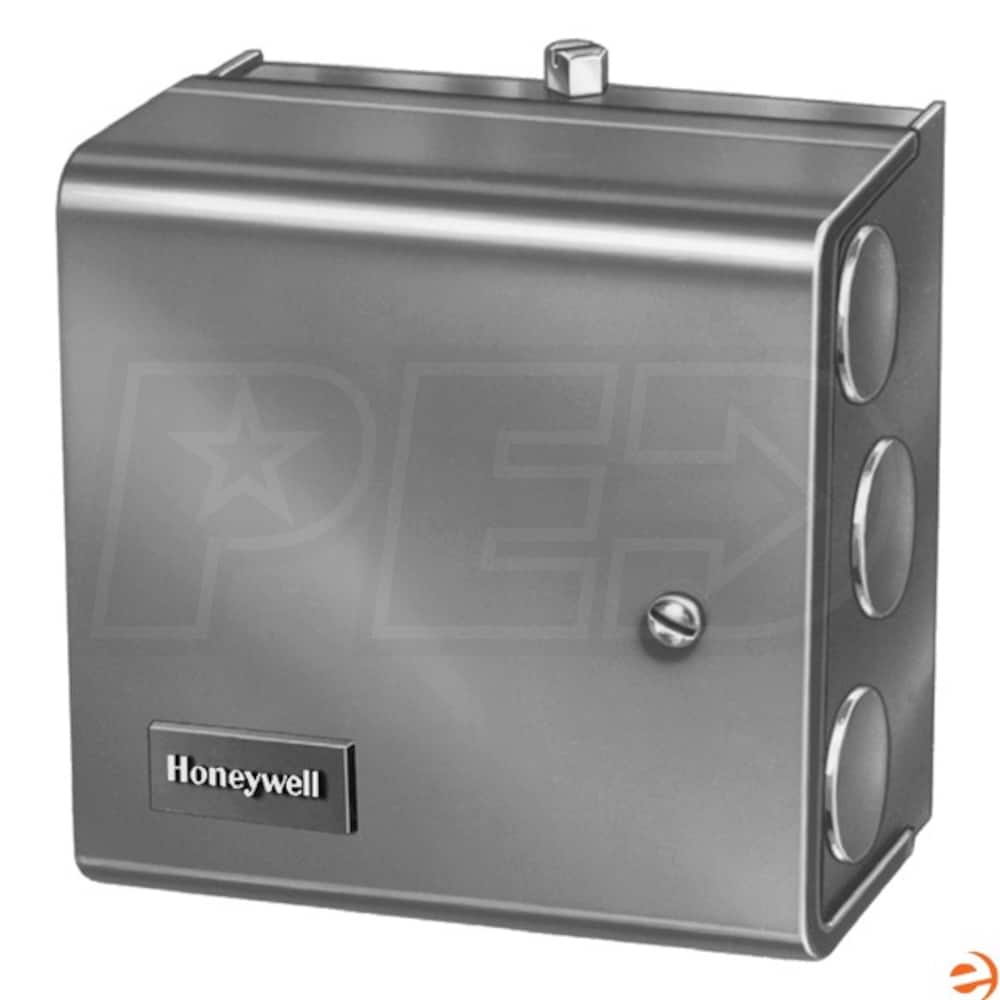

Honeywell Multiple Aquastat Controller for Circulator & High Limit Applications, 3" Insulation Depth

Model:

L4081B1096

Write A Review
$276.67
Free Shipping
  Learn More About Free Freight
Free Shipping
*This product qualifies for Free Shipping anywhere in the contiguous US. Accessories may ship separately. Items over 100lbs shipped via semi-truck, be sure to select "Lift Gate" to lower the product to the ground curbside. Remote area surcharges may apply, see our full shipping policy for more details.
Factory-Direct
Ships in 4-7 Business Days
synchrony card logo
$47 / Month
Suggested monthly payments with 6 month financing.
Honeywell Multiple Aquastat Controller for Circulator & High Limit Applications, 3
Honeywell Multiple Aquastat Controller for Circulator & High Limit Applications, 3" Insulation Depth
Model: L4081B1096
$276.67
Features
Specifications
Reviews
How-To Articles
Manuals

Features

    Honeywell Multiple Aquastat Controller for Circulator & High Limit Applications, 3" Insulation Depth

    The Honeywell L4081B1096 Multiple Aquastat Controller for Circulator & High Limit Applications is a high limit, low limit and or circulator controller used to regulate boiler water temperature in gas or oil fired hydronic heating systems.

    Honeywell L4081B1096 Multiple Aquastat Controller for Circulator & High Limit Applications Features:
    • An immersion type liquid-filled sensing element actuates two snap switches
    • One switch operates as a high limit control
    • Controller may be mounted in any positioning and needs no leveling
    • Separate, easy-to-read, calibrated dial and setpoint adjustments for each switch
    • Differential adjustment on low limit or circulator switch
    • All adjustments accessible inside front cover
    • Push-in terminals for quick connection
    • Single sensing element for easy installation
    • One SPST and one SPDT snap switches act independently at respective temperature settings
    Honeywell L4081B1096 Multiple Aquastat Controller for Circulator & High Limit Applications Warranty:
    • Parts: 1 Year

Specifications

L4081B1096
specs product image PID-34606
General Information
Product Line
L408
Limit Type
High
High Differential Temperature Type
Fixed
UPC
085267053440
Dimensions
Product Height
3 7/8 Inches
Product Width
4 1/12 Inches
Product Length
2 11/16 Inches
Product Weight
1.75 Pounds
Certifications
UL Listed
Yes
CSA Listed
Yes
Warranty Information
Parts Warranty Learn More
Parts Warranty
A warranty is a safeguard from defects in manufacturing and can vary in length and terms. Some manufacturers require registration for extended warranty benefits, be sure to check out features and the warranty document. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
1 Year
