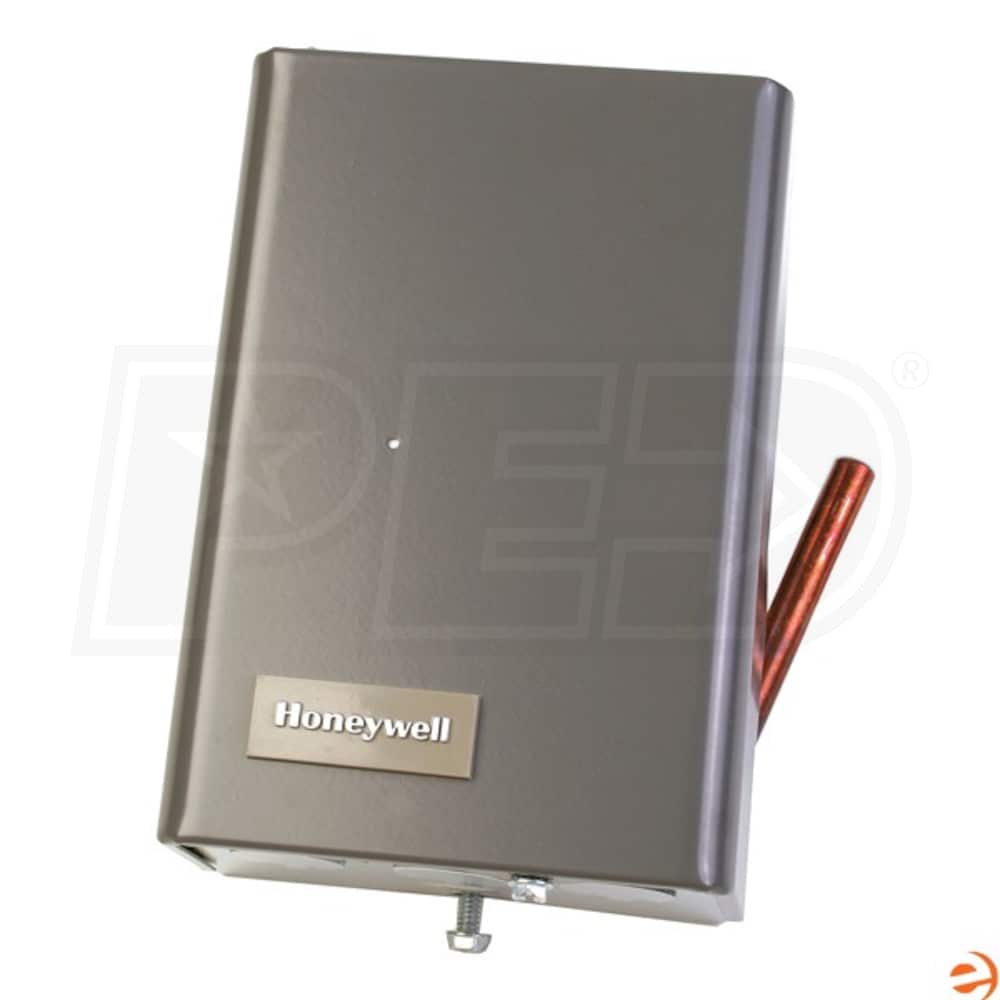

Honeywell Triple Aquastat Relay Immersion Type Controller for High Limit Applications
Model:
L8124E1016
+
Share This Product
Features
- Immersion-type controllers that combine high limit protection with low limit and circulator control in forced hydronic heating systems
- Provide multizone control by using a separate circulator and R845 Relay for each zone
- Mount directly to boiler
- Requires 24 Vac thermostat with heat anticipator set at .2A
- Diaphragm powerhead and Micro Switch assembly that responds to temperature changes in boiler water
- Parts: 1 Year
Honeywell Triple Aquastat Relay Immersion Type Controller for High Limit Applications
The Honeywell L8124E1016 Triple Aquastat Relay Immersion Type Controller is an immersion-type controller that combines high limit protection with low limit and circulator control in forced hydronic heating systems, including domestic hot water service.
Honeywell L8124E1016 Triple Aquastat Relay Immersion Type Controller Features:
Honeywell L8124E1016 Triple Aquastat Relay Immersion Type Controller Includes:
Honeywell L8124E1016 Triple Aquastat Relay Immersion Type Controller Warranty:
Specifications
L8124E1016

General Information
Product Line
L812
Limit Type
High
High Differential Temperature Type
Fixed
Low Differential Temperature Type
Adjustable
UPC
085267055000
Performance
Minimum Operating Temperature
130 F
Maximum Operating Temperature
240 F
Maximum Operating Pressure
200 PSI
Electrical Data
Maximum Load at 120V - AFL
7.4 Amps
Maximum Load at 120V - ALR
44.4 Amps
Maximum Load at 240V - AFL
3.7 Amps
Maximum Load at 240V - Resistive
22.7 Amps
Voltage
120 Volts
Phase
1
Frequency
60 Hz
Dimensions
Product Height
6 1/8 Inches
Product Width
3 1/8 Inches
Product Length
4 5/16 Inches
Product Weight
4.55 Pounds
Certifications
UL Listed
Yes
CSA Listed
Yes
Warranty Information
Parts Warranty
Parts Warranty
A warranty is a safeguard from defects in manufacturing and can vary in length and terms. Some manufacturers require registration for extended warranty benefits, be sure to check out features and the warranty document. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
1 Year
