Features
- Low Maintenance
- No moving parts to wear or hang up, as in float devices
- Compact Size
- Designed to fit in tight spaces
- More Probe Plate Space
- Large probe tip puts more conductive surface in the water, leading to more dependable operation and less chance of nuisance boiler shutdowns
- Power and Low Water LED Indicators
- Makes troubleshooting fast and easy
- Automatic Reset
- Shuts down the burner when water drops below the probe. Automatically restores the burner circuit upon return of a safe water level
- Test Button
- Tests control operation without lowering the water level
The Safgard 1100 Series low water cut-offs by Hydrolevel combine Hydrolevel's 35 years of electronic boiler control experience, advanced microchip technology and design input from heating professionals. The result is the smallest, easiest-to-install, low water cut-offs available for residential hot water boilers. Hydrolevel controls utilize a non-moving, heavy duty, electronic probe to sense liquid levels. The probe can be installed in an equalizing line or directly into a boiler or water tank in accordance with manufacturers' instructions and local and State codes. When water is in contact with the probe, it completes a circuit between the stainless steel probe tip and the tank or boiler surface in which the probe is installed. When water level drops below the probe, the circuit opens. Hydrolevel low water cut-offs for hydronic heating systems use the water signal to allow the burner to operate. If the water level drops below the probe, the circuit opens and the cut-off shuts down the burner. With today's homes designed to maximize living space, boilers are being squeezed into ever-smaller areas. In a closet, under the stairs or any tight spot, the compact size of the 1100 Series is designed to fit any application setting. Hydrolevel provides step-by-step, diagramed instructions for fast, easy installation and wiring. The 120 volt Model 1150 provides pigtail leads for quick wire-nut connections. The Model 1100 and Model 1150 are the only cut-offs designed for residential water boilers to offer a test button. This feature allows for testing the control without lowering the water level. And with the 1100 Series, the prescribed maintenance does not require annual probe removal as with other brands. The 1100 Series features Power and Low Water indicating lights for easy troubleshooting. The 1100 Series cut-offs feature heavy duty relay contacts and a tough, impact-resistant housing made from state-of-the-art polymers.
Specifications
1150
Overview
Product Category
Boiler Accessories
UPC
642277451156
General Information
Product Category
Boiler Accessories
Performance
Maximum Operating Pressure
125 PSI
Electrical Data
Voltage
120 Volts
Power Consumption
2.6 Watts
Frequency
60 Hz
Dimensions
Product Height
4 Inches
Product Width
4 Inches
Product Depth
3 11/16 Inches
Product Weight
15 Pounds
Warranty Information
Parts Warranty
Parts Warranty
A warranty is a safeguard from defects in manufacturing and can vary in length and terms. Some manufacturers require registration for extended warranty benefits, be sure to check out features and the warranty document. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
1 Year
Reviews
(1)
Hydrolevel 1150 Reviews & Ratings
Product Q&A
Be the First to Ask A Question
Answered by Ken, the eComfort Product Expert
How-To Articles
How to Increase Efficiency and Comfort in Your Boiler
Low energy costs and a comfortable home are the hallmarks of an efficient, effe...
How to Pick the Perfect Hot Water Towel Warmer
Hydronic towel warmers are a great way to take advantage of your existing hot w...
eComfort How-To Library
Articles, Tips and Buying Guides from Our Experts
Manuals
Ask A Question!
*Required Fields
+
Thank You For Submitting Your Question
Your submission has been sent successfully. Please give our experts up to two business days to respond.
Media Gallery

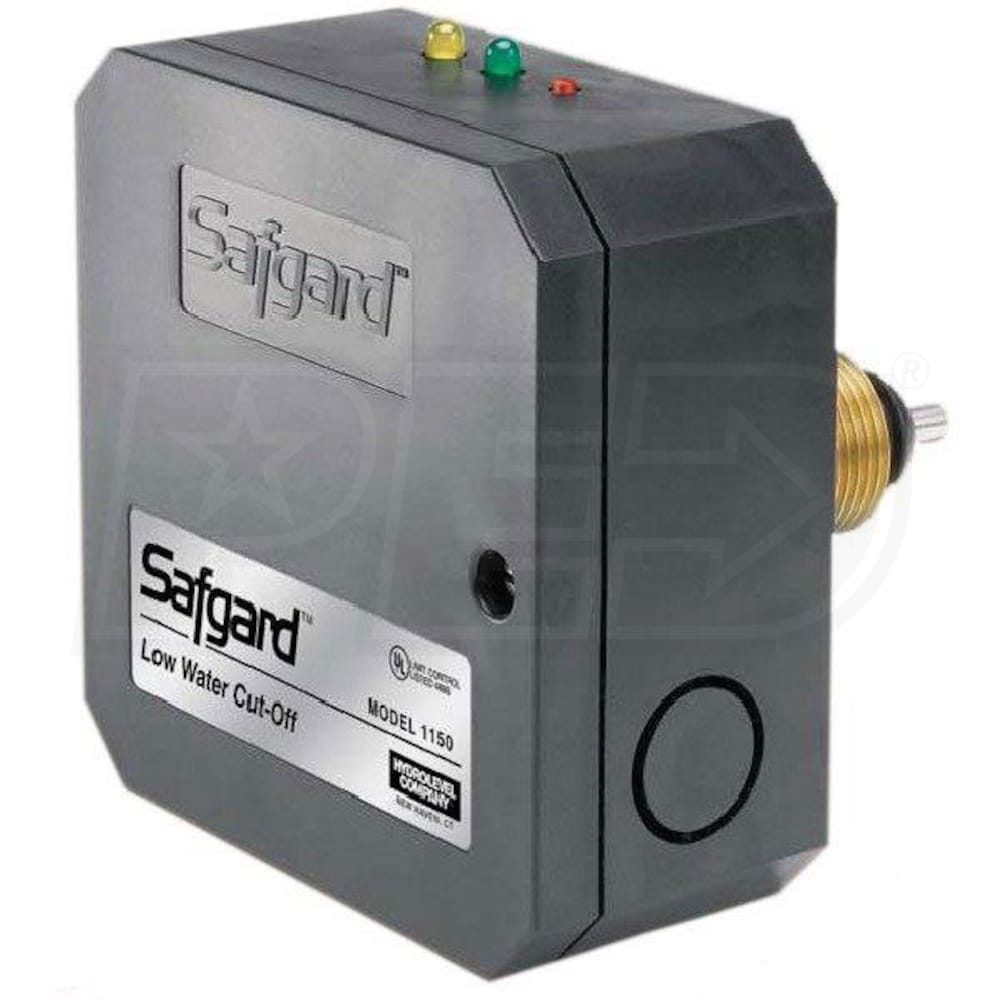

Hydrolevel Safgard 1150 Low Water Cut-Off with Wire Harness, 120 VAC
