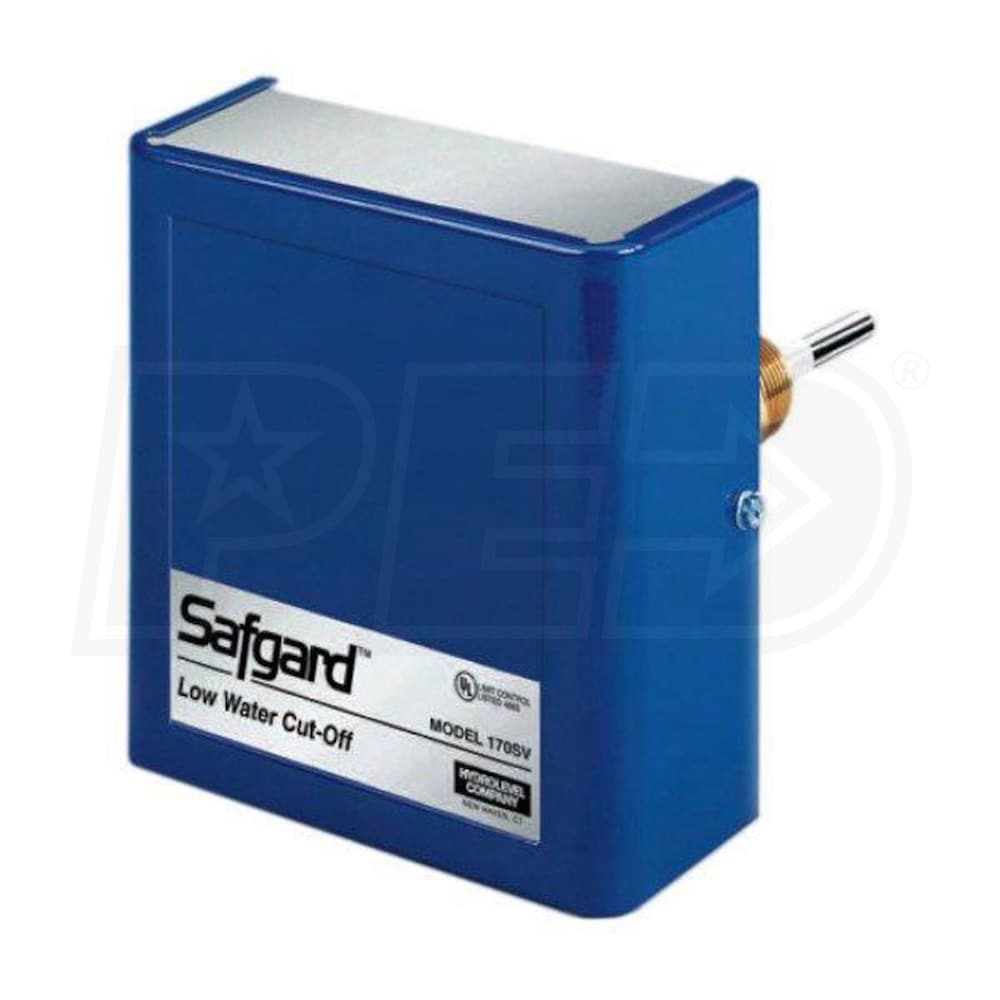

Hydrolevel Safgard 170 Heavy Duty Hot Water Boiler Low Water Cut-Off, 120 VAC, Standard EL1214 3/4" NPT Probe
Model:
170
+
Share This Product
Features
- Heavy-duty electro-mechanical design
- for long life
- Automatically shuts off burner in a low water condition
- to prevent boiler damage
- Low maintenance
- No moving parts to wear stick or hand up, as in float devices
- Rugged construction
- Designed for the heating professional
- Automatic Reset
- Shuts down the burner when water drops below the probe. Automatically recompletes the burner circuit upon return of a safe water level
- More Probe Plate Space
- Large probe tip puts more conductive surface area in the water, leading to more dependable operation and less chance of nuisance boiler shutdowns
The Safgard Heavy Duty Boiler Low Water Cut-Offs are used as the primary low water cut-off on residential and commercial water boilers. Hydrolevel controls utilize a non-moving, heavy duty, electronic probe to sense liquid levels. The probe can be installed in an equalizing line or directly into a boiler or water tank in accordance with manufacturers' instructions and local and State codes. When water is in contact with the probe, it completes a circuit between the stainless steel probe tip and the tank or boiler surface in which the probe is installed. When the water level drops below the probe, the circuit opens. Hydrolevel low water cut-offs for hydronic heating systems use the water signal to allow the burner to operate. If the water level drops below the probe, the circuit opens and the cut-off shuts down the burner. Automatically restarts burner on return of normal water level.
Specifications
170
Overview
Product Category
Boiler Accessories
UPC
642277451705
Additional Model Numbers
170-0, 170
General Information
Product Category
Boiler Accessories
Connection Type
NPT
Performance
Maximum Operating Pressure
160 PSI
Electrical Data
Voltage
120 Volts
Power Consumption
7 Watts
Frequency
60 Hz
Dimensions
Connection Size
3/4 Inch
Product Height
5 9/16 Inches
Product Width
5 1/2 Inches
Product Depth
6 1/4 Inches
Product Weight
15 Pounds
Warranty Information
Parts Warranty
Parts Warranty
A warranty is a safeguard from defects in manufacturing and can vary in length and terms. Some manufacturers require registration for extended warranty benefits, be sure to check out features and the warranty document. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
1 Year
