King Electric - 5 kW - Unit Heater with Thermostat and Bracket - 240V 1 Phase

Model:

GH2405TB

Write A Review
$881.29
Free Shipping
  Learn More About Free Freight
Free Shipping
*This product qualifies for Free Shipping anywhere in the contiguous US. Accessories may ship separately. Items over 100lbs shipped via semi-truck, be sure to select "Lift Gate" to lower the product to the ground curbside. Remote area surcharges may apply, see our full shipping policy for more details.
Factory-Direct
Ships in 2-5 Business Days
synchrony card logo
$147 / Month
Suggested monthly payments with 6 month financing.
King Electric - 5 kW - Unit Heater with Thermostat and Bracket - 240V 1 Phase
King Electric - 5 kW - Unit Heater with Thermostat and Bracket - 240V 1 Phase
Model: GH2405TB
$881.29
Features
Specifications
Reviews
Product Q&A
How-To Articles
Manuals
Share

Features

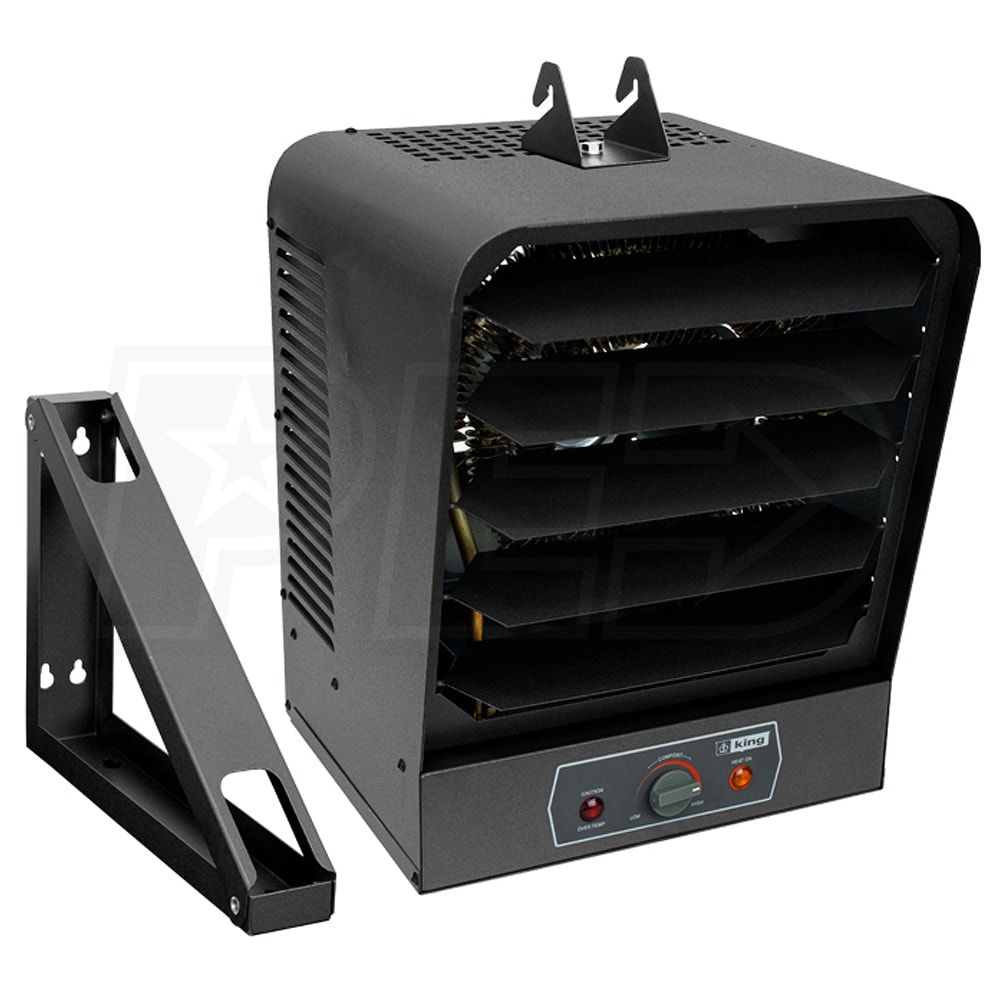

    The King Electric GH2405TB compact heavy duty unit heater is intended for large or exposed areas as primary or supplemental heat sources to prevent freezing. High air volume (CFM) and spiral finned steel elements ensure efficient heat exchange producing cooler element operation. The GH2405TB unit heater will provide years of trouble-free service by combining the highest quality components with a dynamically balanced fan blade. Equipped with a built-in thermostat that turns the heater on and off to help keep the preferred room temperature. The GH2405TB unit heater comes with a wall/ceiling bracket for quick and easy installation.
  • King Electric GH Series Features
  • Power On and Over-Temp Indicating Lights
  • Adjustable Louvers to Direct Air
  • High Mass Steel Fin Heat Exchanger
  • Product Includes
  • Built-in Thermostat
  • Universal Wall/Ceiling Bracket

Specifications

GH2405TB
specs product image PID-115017
Overview
Product Category
Unit Heater
UPC
093319222782
General Information
Type
Garage Heaters
Product Line
GH
Product Category
Unit Heater
Fuel Type Learn More
Fuel Type
To create heat, some form of fuel is required. Fuel Type specifies what the product uses as an input to create heat.
Electric
Blower Motor Type
Totally Enclosed Fan Motor
Mount Type
Wall/Ceiling
Minimum Setpoint Range
40 F
Maximum Setpoint Range
90 F
Color
Gray
Performance
Heating BTU
17000
Heating Capacity
17000 BTU
Heating Capacity (kW)
5 kW
Air Throw
16 Feet
Maximum Air Flow
400 CFM
Heating Power Input
5000 Watts
Electrical Data
Voltage
240 Volts
Phase
1
Minimum Circuit Ampacity
20.8 Amps
Recommended Breaker Size
30 Amps
Current Draw
20.8 Amps
Dimensions
Product Height
15 1/2 Inches
Product Width
12 1/2 Inches
Product Depth
12 Inches
Product Weight
27 Pounds
Shipping Weight
30.5 Pounds
Certifications
Country of Origin
US
UL Listed
Yes
Warranty Information
Warranty Learn More
Warranty
A warranty is a safeguard from defects in manufacturing and can vary in length and terms. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
3 Years
Heating Element Warranty
3 Years
