King Electric - 925 CFM - 15 kW - 2-Stage Electronic Unit Heater with Fuse Block and Remote Sensor - 240/208V - 1 Phase
Model:
KB2415-1-ECO2S-PLUS-FB
+
Share This Product
Features
- King Electric KB ECO2S PLUS Series Features
- Smart ECO2S Plus Energy-Saving Design
- Summer Fan Only and Timer Modes
- Built-In Fan Delay To Dissipate Heat
- High Mass Steel Fin Heat Exchanger

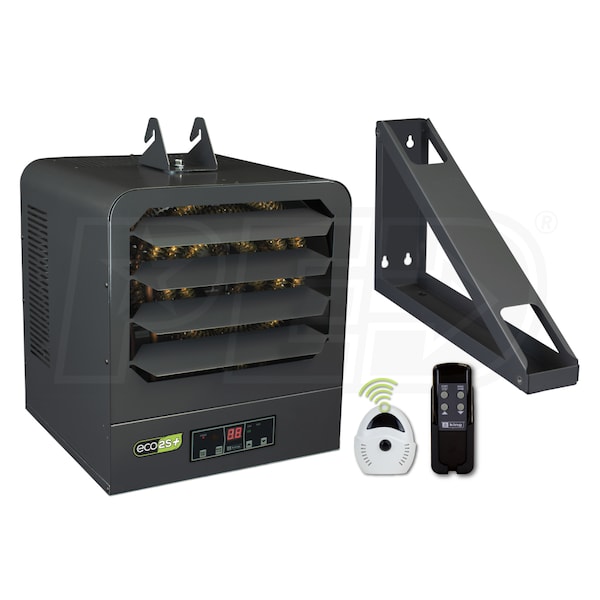

- Product Includes
- Hand Held Remote Control and Wall Holder
- Universal Wall/Ceiling Bracket
The King Electric KB ECO2S Plus unit heater is intended for large or exposed areas as primary or supplemental heat sources to prevent freezing. High air volume (CFM) and spiral finned steel elements ensure even air distribution producing cooler element operation. The KB ECO2S Plus unit heater will provide years of trouble-free service by combining the highest quality components with a dynamically balanced fan blade. Includes wall/ceiling bracket and built-in thermostat with Eco mode that automatically uses the lowest wattage needed to heat the room.
Specifications
KB2415-1-ECO2S-PLUS-FB
Overview
Product Category
Unit Heater
UPC
093319332474
General Information
Type
Unit Heaters
Product Line
KB ECO2S+
Product Category
Unit Heater
Fuel Type
Fuel Type
To create heat, some form of fuel is required. Fuel Type specifies what the product uses as an input to create heat.
Electric
Modulating/Staging
Modulating/Staging
Stages are unique speeds or levels that equipment can operate at. More stages allow for better fine-tuned control of output, which improves comfort and efficiency. Modulating equipment can operate across a range of levels, giving the highest level of fine-tuned control. Learn More
2 Stage
Blower Motor Type
Permanent Lubricated Unit Bearing Motor
Mount Type
Wall/Ceiling
Minimum Setpoint Range
40 F
Maximum Setpoint Range
99 F
Color
Gray
Performance
Heating BTU
51182
Heating Capacity
51182 BTU
Heating Capacity (kW)
15 kW
Air Throw
33 Feet
Maximum Air Flow
400 CFM
Heating Power Input
15000 Watts
Electrical Data
Voltage
240 Volts
Phase
1
Minimum Circuit Ampacity
62.5 Amps
Recommended Breaker Size
100 Amps
Current Draw
62.5 Amps
Dimensions
Product Height
16 1/2 Inches
Product Width
15 Inches
Product Depth
18 Inches
Product Weight
44 Pounds
Shipping Weight
47 Pounds
Certifications
Country of Origin
US
UL Listed
Yes
Warranty Information
Warranty
Warranty
A warranty is a safeguard from defects in manufacturing and can vary in length and terms. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
5 Years
Heating Element Warranty
5 Years
