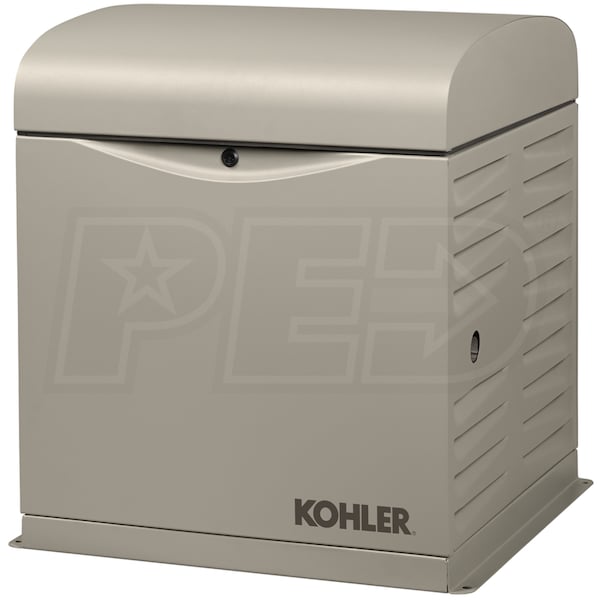

Kohler 10RESVL-100LC12 10kW Home Standby Generator System (100A Indoor 12-Circuit Switch)
Model:
10RESVL-100LC12
+
Share This Product
Recommended Accessories
Expert Recommended Accessories
Selected by Ken, our Expert
Required Accessories
9
These accessories are required to properly setup/install this product.
Optional Accessories
10
Features

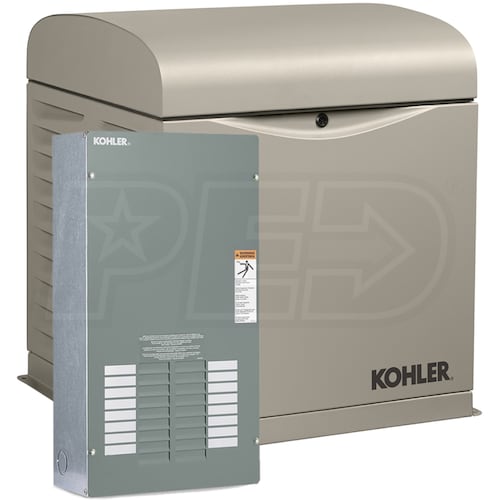

- Includes 100-Amp Indoor ATS w/ 12-Space Load Center*
- Kohler Series 7000 V-twin OHV Engine
- Powerful and reliable engine with hydraulic valve lifters
- Powerful Performance w/ PowerBoost™ Technology
- Greater motor-starting ability for large electrical loads
- Premium Power Quality (+/-1% Voltage Regulation)
- Protects sophisticated electronics with low distortion (<5%THD)
- Fast Response Time
- Kohler™ generators restore power in as little as 10 seconds
- New Silencer Reduces Sound Levels & Provides Quiet Operation
- Maintains neighborhood solitude - approx 71 dB(A) Max
- RDC2 Controller
- ATS status via LED lights on controller; Built-In 2.5A Battery Charger
- Glare-resistant, 2-line 16-character display - No More Codes
- Real time clock allows you to easily set weekly exercise
- OnCue® Plus Remote Monitoring System (Included)
- Built-in Ethernet card, no hardware needed for OnCue
- Requires OnCue Plus Wireless Radio Kit For Wireless Monitoring (Sold Separately)
- KOHLER® Energy Management App
- Get real-time alerts on generator status, remote control & maintenance records
- Bold New E-Coat Dipped Steel Enclosure
- Pained with a durable powder coat finish to minimize corrosion
- ***Not Compatible For Off-Grid Applications***
- Approved for stationary standby applications in locations served by a reliable utility source
- Premium Warranty - 5-year/2,000-Hour Limited Warranty
- *Please Note - Breakers not included
California residents see
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
For more information go to: www.p65Warnings.ca.gov
Specifications
10RESVL-100LC12
General Information
Product Category
Generator - Standby
Overview
Product Category
Generator - Standby
Weight
448 Pounds
CARB Compliant
Yes
Made in USA
Yes
Consumer Warranty
5 Years
Commercial Warranty
5 Years
Product Style
Standby Generator
Product Length
30.6 Inches
Product Width
28 Inches
Product Height
32.4 Inches
UPC
650531126122
Product Specs
Voltage
120/240 Single-Phase
Frequency
60 Hertz
Rated Watts
10000 Watts
Fuel Type
LP/Natural Gas
NG Power Capacity
9000 Watts
LP Power Capacity
10000 Watts
NG Fuel Consumption @ 50% Load
120 ft³/hr
NG Fuel Consumption @ 100% Load
179 ft³/hr
LP Fuel Consumption @ 50% Load
1.5 gallons/hr
LP Fuel Consumption @ 100% Load
2.5 gallons/hr
Rated Amps
41.7 Amps
Decibel Rating @ 7m
Decibel Rating @ 7m
Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB.
67-71
Transfer Switch
Automatic (Included)
Transfer Switch Amperage
100-Amps
Max Circuits
12
Battery
Not Included (500 CCA)
Enclosure
Steel
A/C Ton Rating
5-Tons
Mounting Pad
Steel (Included)
Transfer Switch Style
Standard Installation
ATS Load Prioritizing
Not Compatible
ATS Load Shedding
Not Compatible
ATS Service Disconnect
No
Cooling System
Air Cooled
UL Listed
Yes
Grade Type
Emergency
Wi-Fi Remote Monitoring
Sold Separately
Engine
Engine Brand
Kohler
Starting System
12v Auto Start
CC
725 CC
Consumer Engine Warranty
5 Years
Commercial Engine Warranty
5 Years
Engine RPM
3600 RPM
Low Oil Alert/Shutdown
Yes
