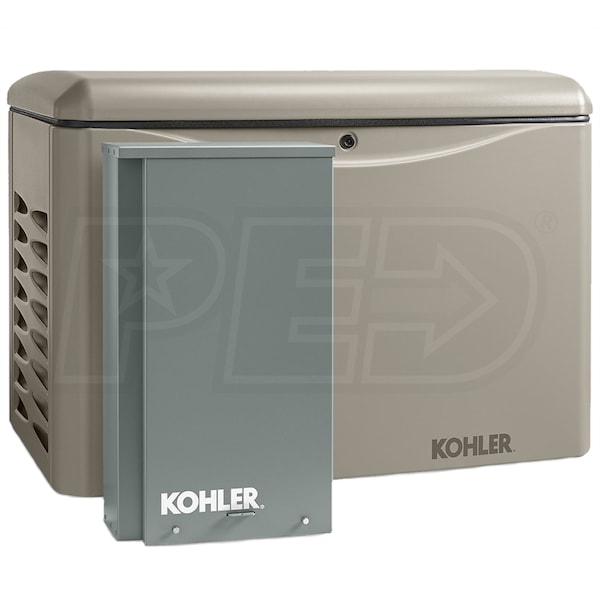

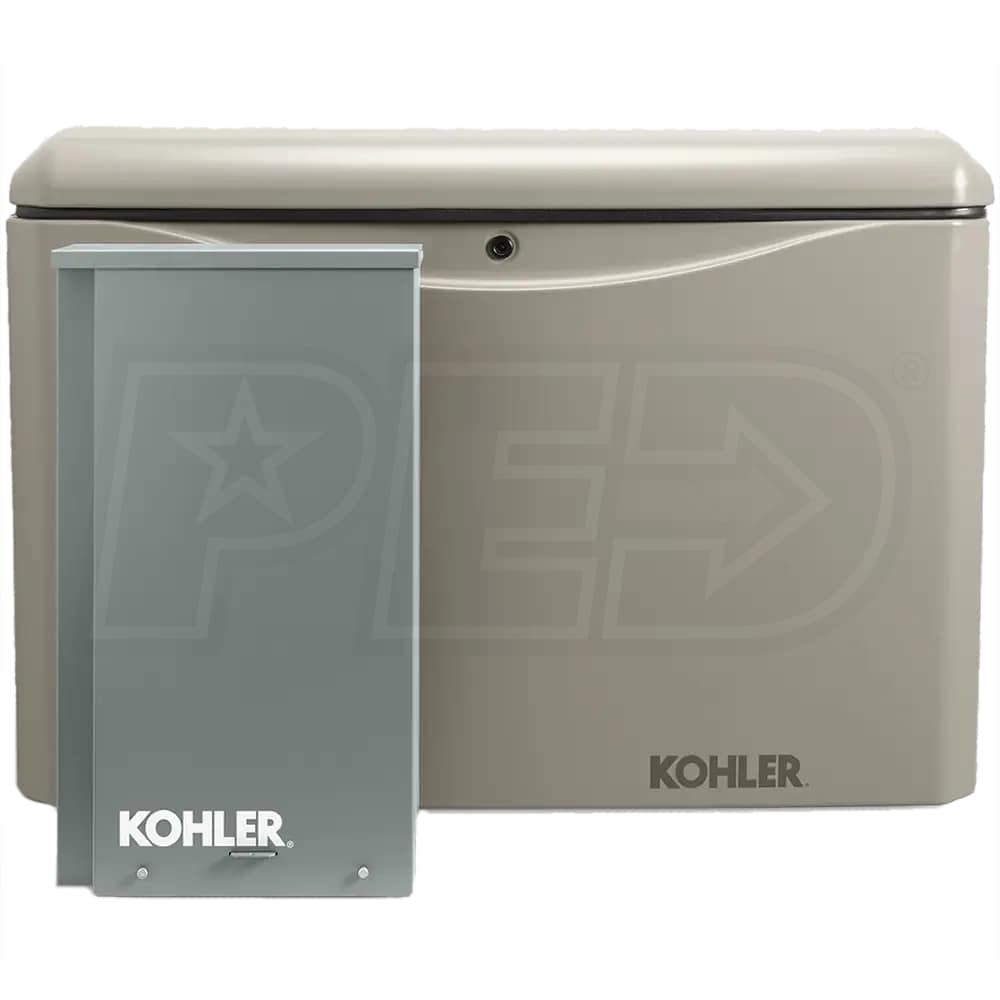

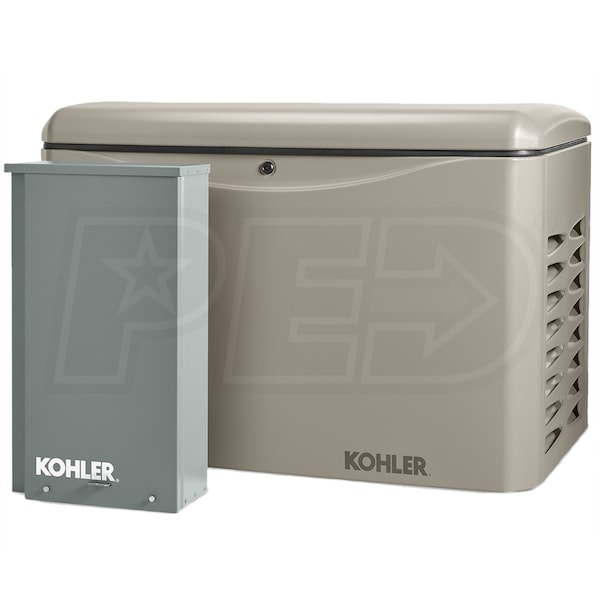

Kohler 14kW Aluminum Standby Generator System (200A Service Disconnect Switch w/ Load Shedding)
Model:
14RCAL-200SELS
+
Share This Product
Recommended Accessories
Expert Recommended Accessories
Selected by Ken, our Expert
Required Accessories
9
These accessories are required to properly setup/install this product.
Optional Accessories
10
Features
- 14kW (LPG) / 12kW (NG) Air-Cooled Standby Generator
- Protects your home and family during a power outage
- Fully Automatic Operation - Includes Automatic Transfer Switch
- RXT 200A Service Entrance Rated Outdoor Automatic Transfer Switch
- NEMA 3R Enclosure mounts between meter & main service panel
- Built-In Load Shed - Manage (2) HVAC + (4) Non-Essential loads***

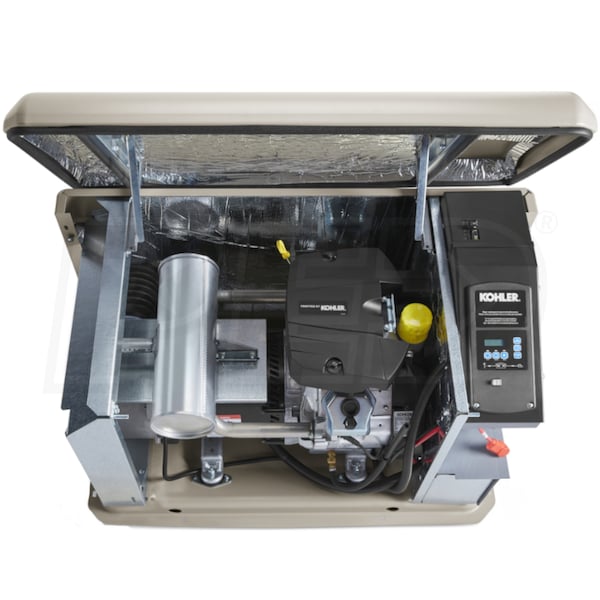

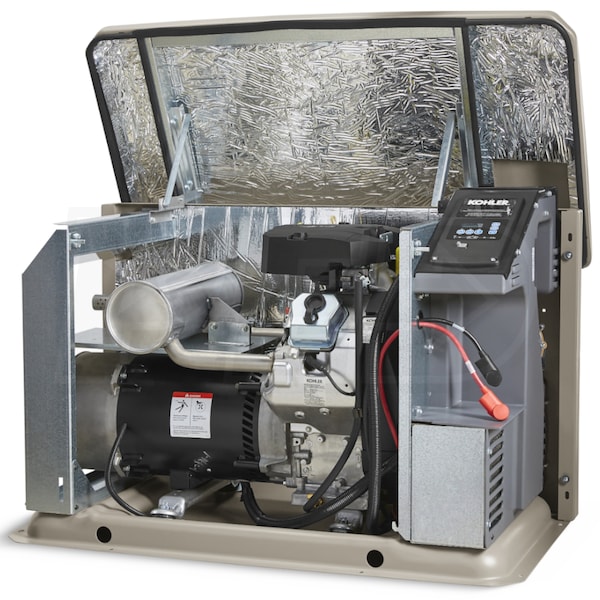

- Kohler Command PRO® OHV Engine
- Meets emission regulations for U.S. EPA & California
- Powerful and reliable engine with hydraulic valve lifters

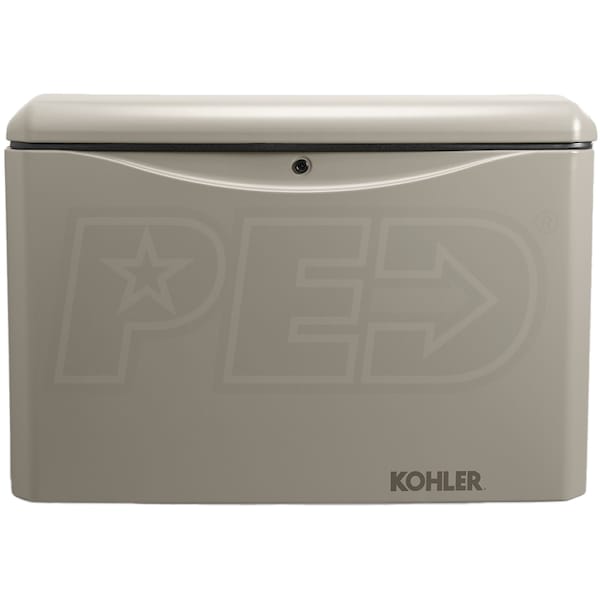

- New 100% Corrosion-Proof Aluminum Enclosure
- Aluminum base can be mounted on gravel or cement pad
- Meets 181 MPH wind rating; Impact-resistant down to -30° F
- Powerful Performance w/ PowerBoost™ Technology
- Greater motor-starting ability for large electrical loads
- Premium Power Quality (+/-1% Voltage Regulation)
- Protects sophisticated electronics with low distortion (<5%THD)
- Fast Response Time
- Kohler™ generators restore power in as little as 10 seconds
- New Silencer Reduces Sound Levels & Provides Quiet Operation
- Maintains neighborhood solitude - approx 67 dB(A) at 7 m (23 ft)
- RDC2 Digital Controller
- Glare-resistant, 2-line 16-character display - No More Codes
- ATS status via LED lights on controller; Built-In 2.5A Battery Charger
- Real time clock allows you to easily set weekly exercise
- OnCue® Plus Remote Monitoring System (Included)
- Built-in Ethernet card, no hardware needed for OnCue
- Requires OnCue Plus Wireless Radio Kit For Wireless Monitoring (Sold Separately)
- KOHLER® Energy Management App
- Get real-time alerts on generator status, remote control & maintenance records
- Easier Installation
- Streamline design reduces time required to install generator
- Installation Flexibility*
- Can be installed within 18" of a building / home
- *Always check local building codes
- Premium Warranty - 5-Year / 2,000-Hour Limited Warranty
- ***Requires PRM (Sold Separately)
California residents see
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
For more information go to: www.p65Warnings.ca.gov
Specifications
14RCAL-200SELS
General Information
Product Category
Generator - Standby
Overview
Product Category
Generator - Standby
Weight
440 Pounds
CARB Compliant
Yes
Made in USA
Yes
Consumer Warranty
5 Years
Commercial Warranty
5 Years
Product Style
Standby Generator
Product Length
47 Inches
Product Width
26.2 Inches
Product Height
32.2 Inches
UPC
650531446732
Product Specs
Voltage
120/240 Single-Phase
Frequency
60 Hertz
Rated Watts
14000 Watts
Fuel Type
LP/Natural Gas
NG Power Capacity
12000 Watts
LP Power Capacity
14000 Watts
NG Fuel Consumption @ 50% Load
124 ft³/hr
NG Fuel Consumption @ 100% Load
193 ft³/hr
LP Fuel Consumption @ 50% Load
1.8 gallons/hr
LP Fuel Consumption @ 100% Load
2.3 gallons/hr
Rated Amps
58 Amps
Decibel Rating @ 7m
Decibel Rating @ 7m
Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB.
67 Run (62 Test) dbA
Transfer Switch
Automatic (Included)
Transfer Switch Amperage
200-Amps
Battery
Not Included (500 CCA)
Enclosure
Aluminum
A/C Ton Rating
2 x 5-Tons
Transfer Switch Style
Service Disconnect
ATS Load Prioritizing
Built-In
ATS Load Shedding
Built-In
ATS Service Disconnect
Yes
Cooling System
Air Cooled
UL Listed
Yes
Grade Type
Emergency
Wi-Fi Remote Monitoring
Sold Separately
Engine
Engine Brand
Kohler
Starting System
12v Auto Start
CC
725 CC
Consumer Engine Warranty
5 Years
Commercial Engine Warranty
5 Years
Engine RPM
3600 RPM
Low Oil Alert/Shutdown
Yes
