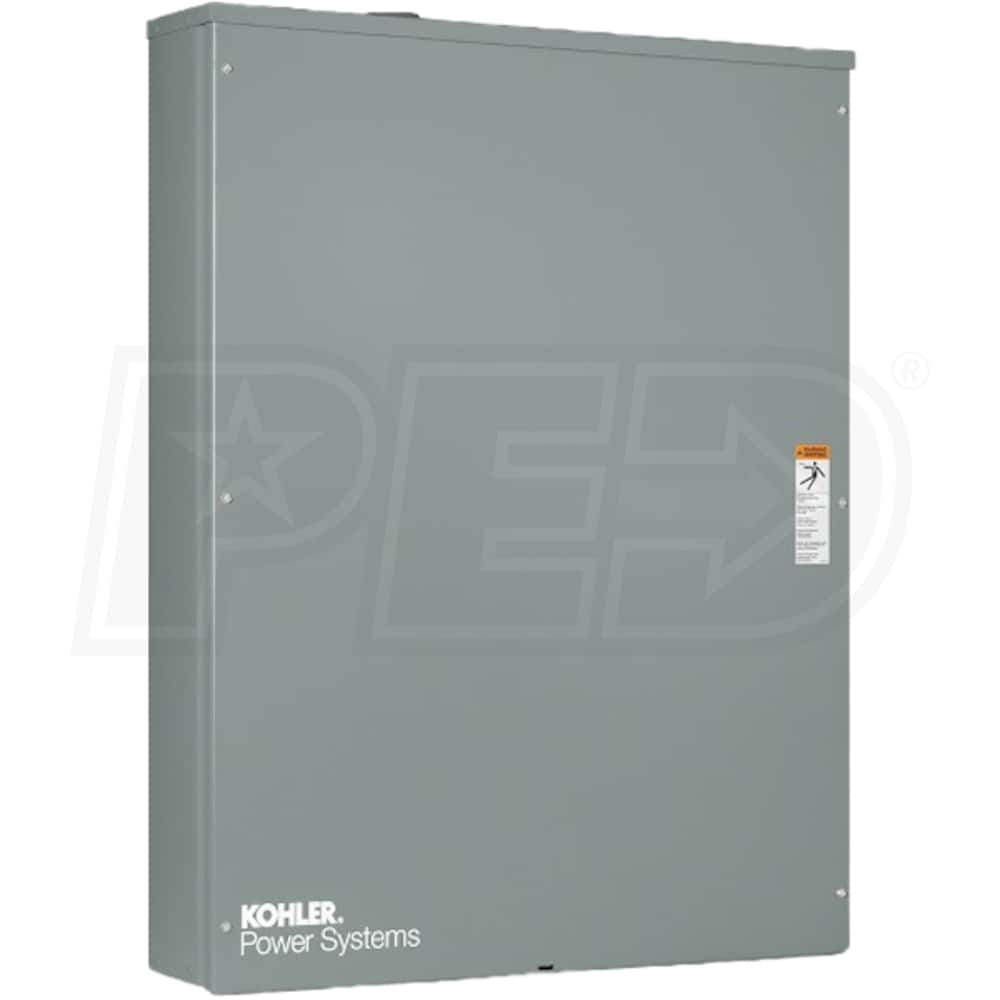

Kohler RDT Series 200-Amp Outdoor Automatic Transfer Switch w/ 42 Cir. Load Cntr (Service Disc)
Model:
RDT-CFNC-200BSEQS3
+
Share This Product
Recommended Accessories

Expert Recommended Accessories
Selected by Ken, our Expert
Optional Accessories
5
Model: RDT-CFNC-0200B-QS7
$1,270.00
Factory-Direct
Model: GM78529-KP1-QS
$138.00
Factory-Direct
Model: GM57969-KP5-QS
$199.00
Only 2 In-Stock
Model: GM19462-KP4-QS
$179.00
Only 2 In-Stock
$86.00
Features
- Kohler RDT Series 200-Amp Automatic Transfer Switch
- Compatible with all Kohler 120/240V 1-phase generators
- Service Entrance Rated
- Includes disconnect circuit breakers on both gen/utility sources
- 42 Circuit Load Center (Breakers Not Included)
- Easily add a gen to buildings w/ previously installed electrical
- Gray Aluminum Indoor/Outdoor (NEMA 3R) Cabinet
- Corrosion-resistant design is also padlockable for added security
- MPAC™ 500 Controller
- User-friendly interface and easy-to-find international symbols
- Selectable source for easy contractor servicing
- LED Fault Indicatiors
- Failure to acquire standby source, failure to transfer & Aux. faults
- Test & Exercise Button
- Allows for both of these options with or without a load
- Double Throw, Inherently Interlocked Design
- Contactor electrically and mechanically interlocked
- Rated at 200-Amps @ 240-Volts
- Please See Spec Sheet For Technical Information
- 5-Year Limited Warranty - UL Listed
California residents see
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
For more information go to: www.p65Warnings.ca.gov
Specifications
RDT-CFNC-200BSEQS3

General Information
Product Category
Generator Transfer Switches
Overview
Product Category
Generator Transfer Switches
Weight
70 Pounds
Consumer Warranty
5 Years
Product Depth
6.5 Inches
Product Width
30.0 Inches
Product Height
38.1 Inches
UPC
650531171214
Additional Model Numbers
RDT-CFNC-200BSE, RDT-CFNC-200BSEQS3
Product Specs
Voltage
120/240 Single-Phase
Frequency
60 Hertz
Rated Watts
48000 Watts
Rated Amps
200 Amps
Enclosure
NEMA 3R
Number of Circuit Breakers
42
Transfer Switch Style
Service Disconnect
ATS Poles
2 Poles
ATS Service Disconnect
Yes
Max Utility Input
200 Amps
Max Generator Input
200 Amps
Maximum Wattage
48000 Watts
UL Listed
Yes
Reviews
(2)
Kohler RDT-CFNC-200BSEQS3 Reviews & Ratings

Long Leadtime, 13 Weeks But Worth The Wait
By Ed M
California
Review Posted 12/09/2022
After receiving freight damage on the generator, Electric Generators Direct were right on top of getting the proper replacement panel in a very timely fashion. I was amazed how well packaged and protected the huge (85#) transfer switch was packaged when it finally arrived. EGD are truly pros and I highly recommend them to anyone looking for a gen package.
Ed M Recommends This
Was this review helpful?
Rating Breakdown
5/5
5/5
5/5
4/5
Pros:
I'd Buy It Again
Cons:
Expensive

GREAT PRODUCT...
By Allan L.
Solvang, California
Purchased 12/01/2020 |
Review Posted 01/07/2021
GREAT PRODUCT...simple install. Worth its weight in gold, especially when it’s needed.
Allan L. Recommends This
Was this review helpful?
Rating Breakdown
5/5
5/5
5/5
5/5
Pros:
Features, Exceeded Expectations, High Quality, Id Buy It Again
Product Q&A
(1)

Product Questions
Answered by Ken, the eComfort Product Expert
How many single pole arc fault breakers will this load center accept?
Ron
from Texas
October 14, 2021
