Kohler RDT-CFNC-400ASEQS5
Kohler RDT-CFNC-400ASEQS5
Hover to zoom
1 Of 5

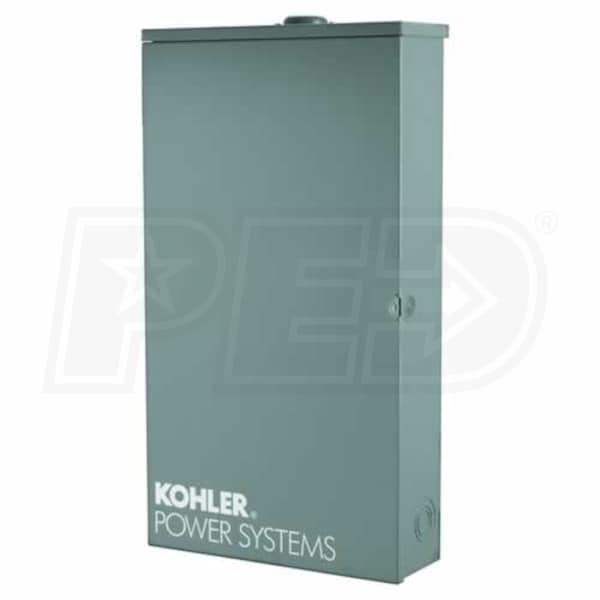

Kohler RDT Series 400-Amp Automatic Transfer Switch (Service Disconnect)

Model:

RDT-CFNC-400ASEQS5

Write A Review
$3,625.00
Free Shipping
&
Lift Gate
  Learn More About Free Freight
Free Shipping & Lift Gate
*This product qualifies for Free Shipping anywhere in the contiguous US. Accessories may ship separately. Items over 100lbs shipped via semi-truck, be sure to select "Lift Gate" to lower the product to the ground curbside. Remote area surcharges may apply, see our full shipping policy for more details.
Backordered
Estimated Availability February 28, 2025
Shipping to60601
synchrony card logo
$64 / Month
With our 82 months 10.99% APR*
82 fixed monthly payments required.
Kohler RDT Series 400-Amp Automatic Transfer Switch (Service Disconnect)
Kohler RDT Series 400-Amp Automatic Transfer Switch (Service Disconnect)
Model: RDT-CFNC-400ASEQS5
$3,625.00
Accessories
Features
Specifications
Reviews
Product Q&A
How-To Articles
Manuals
Share

Recommended Accessories

eComfort expert image
Expert Recommended Accessories Selected by Ken, our Expert
Required Accessories 9
These accessories are required to properly setup/install this product.
Optional Accessories 10

Features

  • Standard Features
  • Service Entrance Rated
  • UL listed
  • Two-pole, single-phase, open-transition transfer switch
  • Double throw inherently interlocked design
  • Solid Neutral
  • 220/240 VAC, 50/60 Hz (jumper)
  • Contractor manually operable for maintenance purposes
  • NEMA 3R (outdoor) enclosure
  • MPAC™ 500 Controller Features
  • User-friendly interface and easy-to-find international symbols
  • LED indication of system faults
  • Test button (with or without load)
  • Exercise set button
  • Single-phase voltage sensing on both sources
  • Line-to-line frequency sensing
  • Fixed time delays
  • 5-year limited warranty
California residents see
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
For more information go to: www.p65Warnings.ca.gov

Specifications

RDT-CFNC-400ASEQS5
specs product image PID-2480
General Information
Product Category
Generator Transfer Switches
Overview
Product Category
Generator Transfer Switches
Weight
101 Pounds
Consumer Warranty
5 Years
Product Depth
12.9 Inches
Product Width
24.7 Inches
Product Height
57 Inches
UPC
650531171955
Additional Model Numbers

RDT-CFNC-0400ASE, RDT-CFNC-400ASEQS5

Product Specs
Voltage
120/240 Single-Phase
Frequency
60 Hertz
Rated Amps
400 Amps
Enclosure
NEMA 3R
Transfer Switch Style
Service Disconnect
ATS Load Prioritizing
Not Included
ATS Load Shedding
Not Included
ATS Poles
2 Poles
ATS Service Disconnect
Yes
Max Utility Input
400 Amps
Max Generator Input
400 Amps
Maximum Wattage
96000 Watts
UL Listed
Yes

Reviews

(1)
Kohler RDT-CFNC-400ASEQS5 Reviews & Ratings

Product Q&A

(1)
Expert avatar photo
Product Questions Answered by Ken, the eComfort Product Expert
Hey Jim, I'm upgrading my service to a 400 amp. and while doing so would like to install a transfer switch. I'm looking at the Generac @ RTSD400A3, it seens to have some nice features and would fit nicely in the space available. The Generator would be installed later. Would this unit be compatible with all generator manufactures? I like Kolher generators would there be any issues? Thanks
Randy Stubbs
from Maryland
February 24, 2012
