Features
- Enhanced Connectivity
- LG's new R-32 mini split units require a 5-conductor cable (Not Included) instead of the standard 4-conductor, improving communication reliability and enabling a new leak detection feature.
- Quiet Design
- The KNSLB601A can operate at volumes as low as 39 dB thanks to its advanced fan motor. The brushless direct current motor reduces electrical and mechanical sound while providing powerful air movement.
- Automated Operation
- Auto operation mode continually compares your zone's current and desired temperatures and uses that data to intelligently adjust the unit's fan speed and refrigerant flow to provide optimal comfort.
- Sleep Mode
- With the Sleep Mode and Timer functions, you can set this indoor unit to save energy at night. Sleep Mode will incrementally adjust temperature for an hour before the Timer function automatically deactivates the unit.
- Dehumidify
- LG's indoor units include a dehumidifying operation mode. In this mode, the unit's internal sensors monitor temperature and modify the set point and fan speed to remove moisture from the air.
- Hot-Start
- When the Hot-Start function is enabled, the KNSLB601A's fan will not engage until the outdoor condenser has had the opportunity to warm the indoor coil. This prevents the unit from blowing cold air during heating operations.
- Multi-Position
- The KNSLB601A can be installed in either a vertical or a horizontal orientation, making it a versatile solution for all manners of duct systems.
- Line Set - This double insulated tubing transfers refrigerant efficiently between your outdoor condenser and indoor units.
- Drain Tubing - Drain tubing facilitates the reliable and effective removal of condensate from your system. It connects your indoor units to drain locations of your choosing.
- Connecting Wire - LG's new R-32 mini split units require a 14 AWG 5-conductor cable. This cable provides power to your indoor units from your outdoor condenser.

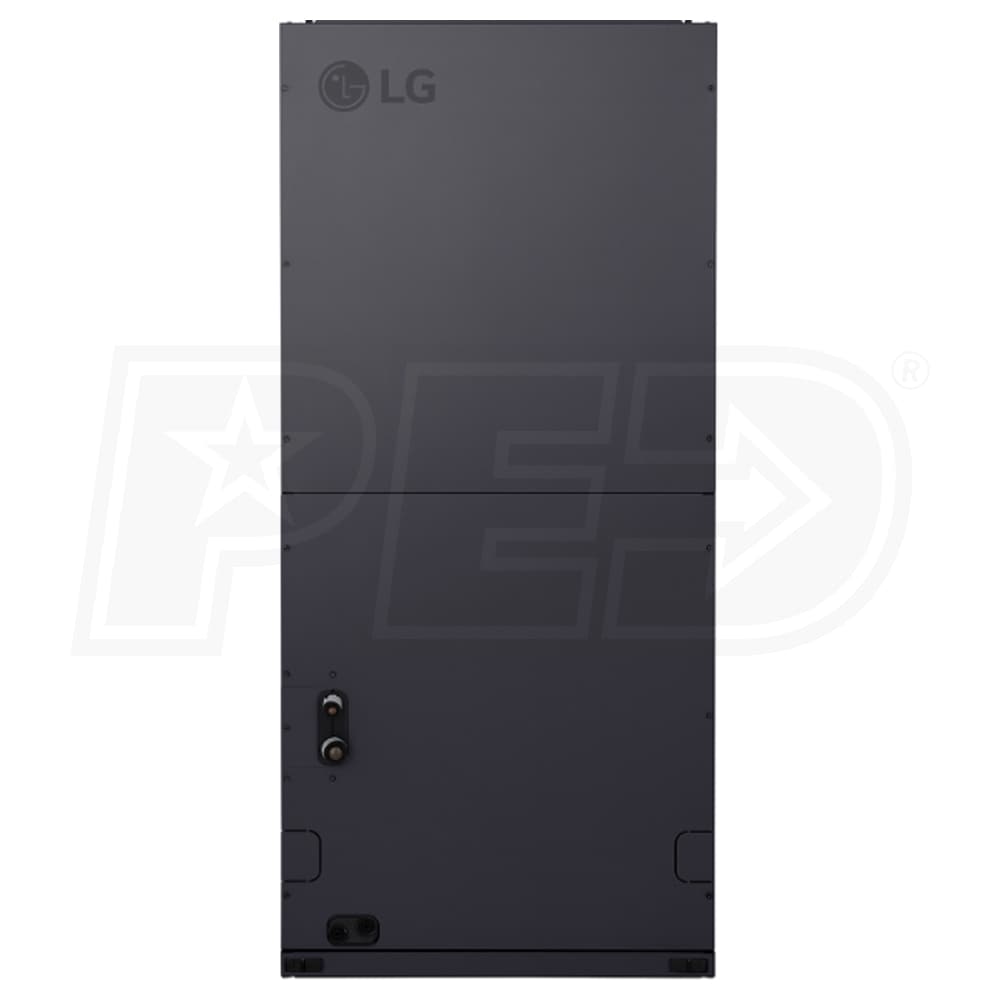

LG's devotion to providing efficient ductless solutions can be seen across their entire catalog. The KNSLB601A is a multi-position air handler unit that can be installed with nearly any pre-existing duct work. LG's air handlers are designed to provide powerful heating and cooling for the larger rooms in your home. Capable of managing high air speeds and volumes effortlessly, the KNSLB601A is an impressive solution to your home's heating and cooling needs.
Product Note
This product requires a compatible LG mini split outdoor condenser and the following accessories for indoor unit installation:
Specifications
KNSLB601A
General Information
Type
Ducted Vertical Air Handler
Product Category
Mini Split System Components
Operating Mode
Operating Mode
Some products are only capable of cooling, while others can either heat or cool a space. Some products heat via "heat pump" technology while others use electric heating elements. Learn More
Heating and Cooling
Multi-Zone Compatible
No
Refrigerant Type
R-32
Indoor Unit Size(s)
Indoor Unit Size(s)
Mini split systems can have one or more indoor units connected to a single outdoor unit. Indoor Unit Size(s) specifies what indoor unit sizes are used in a system. We have combined 6k and 7k indoor units to enhance searchability.
60
Installation Location
Indoor
UPC
195174101407
Performance
Cooling BTU
60000
Cooling Capacity
52500 BTU
Heating Capacity
56500 BTU
Moisture Removal
9.10 Pints/Hour
Maximum Air Flow
1750 CFM
Minimum Air Flow
1400 CFM
Minimum Sound Level
39 dB
Maximum Sound Level
Maximum Sound Level
Sound levels are measured in decibels (dB). The lower the decibel rating, the less noise the product makes. As an example, a ticking watch is 20 dB while on the other end of the scale, a lawn mower is around 90 dB. Learn More
47 dB
Electrical Data
Voltage
208/230 Volts
Phase
1
Frequency
60 Hz
Dimensions
Gas Connection Size
3/4 Inch
Liquid Connection Size
3/8 Inch
Product Height
55 7/8 Inches
Product Width
25 Inches
Product Depth
21 3/8 Inches
Product Weight
153 Pounds
Shipping Weight
169 Pounds
Certifications
CSA Listed
Yes
AHRI Certified
Yes
Warranty Information
Parts Warranty
Parts Warranty
A warranty is a safeguard from defects in manufacturing and can vary in length and terms. Some manufacturers require registration for extended warranty benefits, be sure to check out features and the warranty document. To see the manufacturer's warranty statement, click on the Manuals tab. Learn More
5 Years
